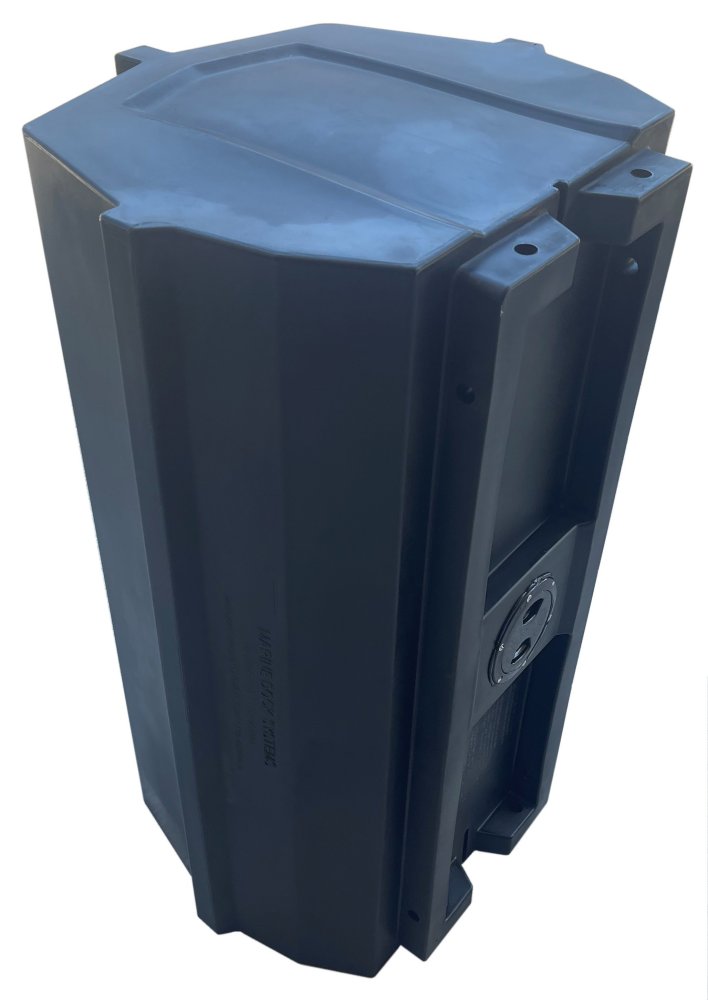

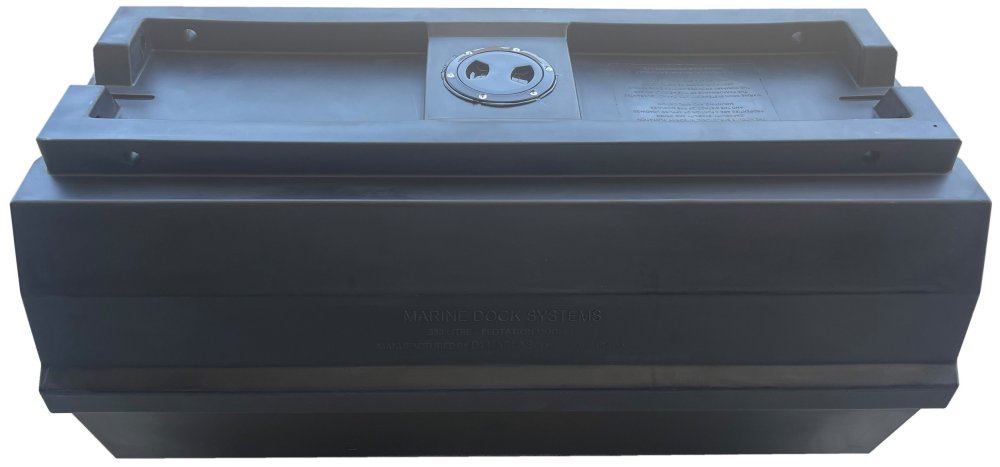

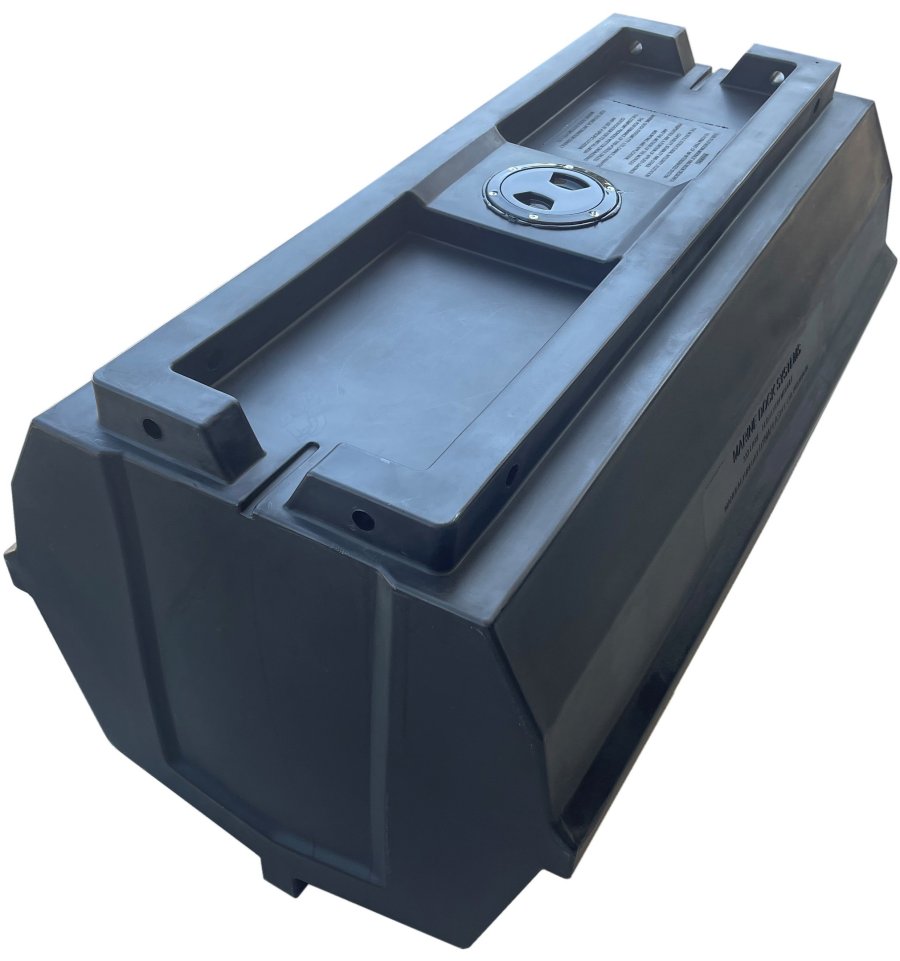

333 LITRE FLOTATION MODULE

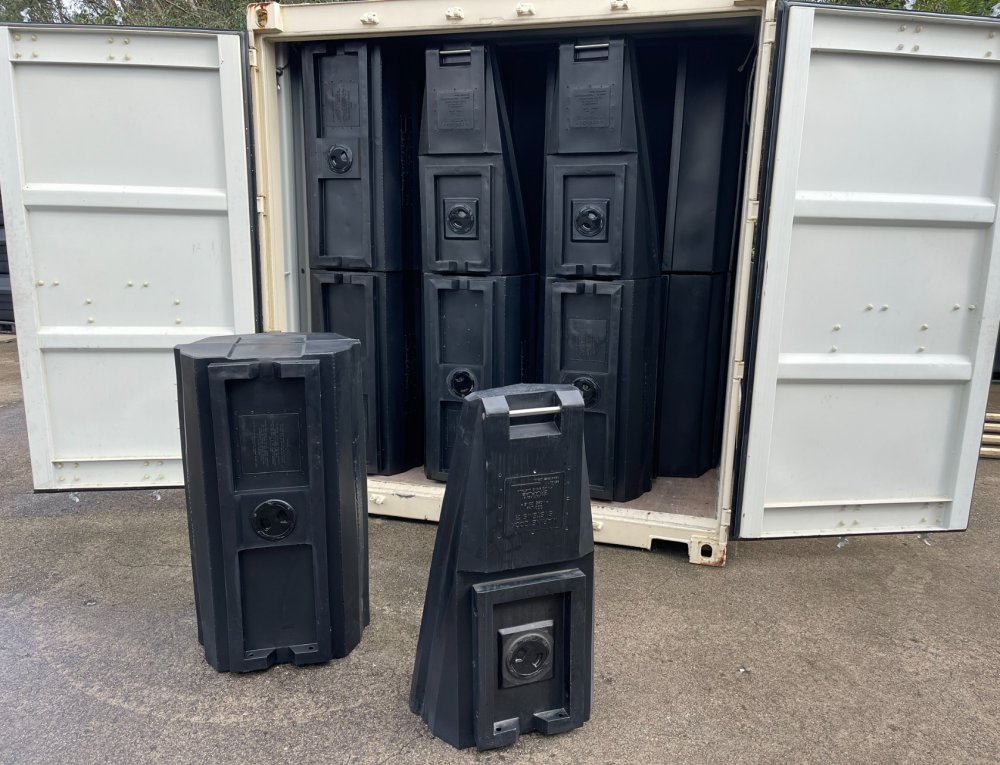

This is a multipurpose float, it can be used for providing flotation for smaller docks and when mounted in line with the matching nose cone, can form one of the hulls of a cpontoon boat. Floats are made from food grade polyethylene and can be used to store drinking water or septic. Providing 150kg lift at just above halfway mark, 150kg max load. Floats can also be foam filled for extra security if required. In stock now! Stock held at our Sydney factory and Qld branch. Dynaplas Pty Ltd.
Product weight 25kg, 38kg foam filled.

To see our pontoon boats click here

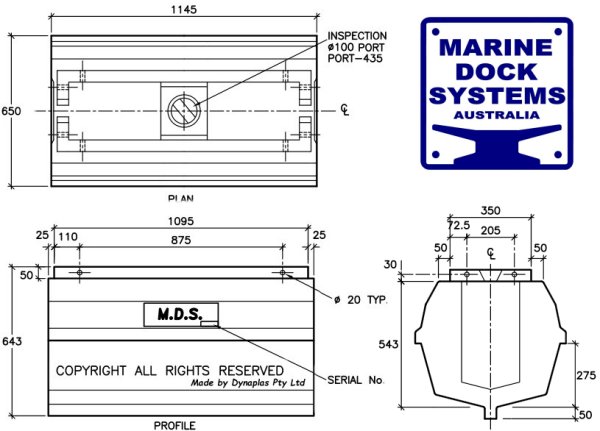

Large Detailed Drawing

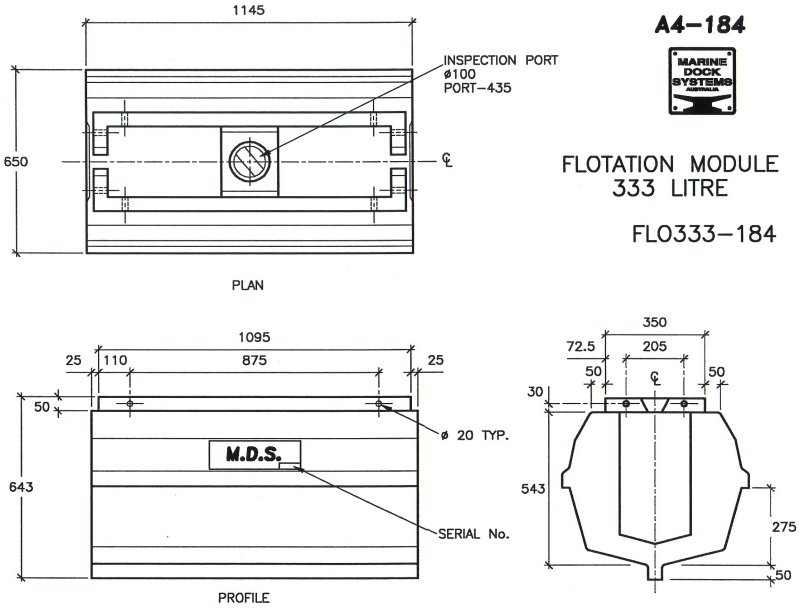

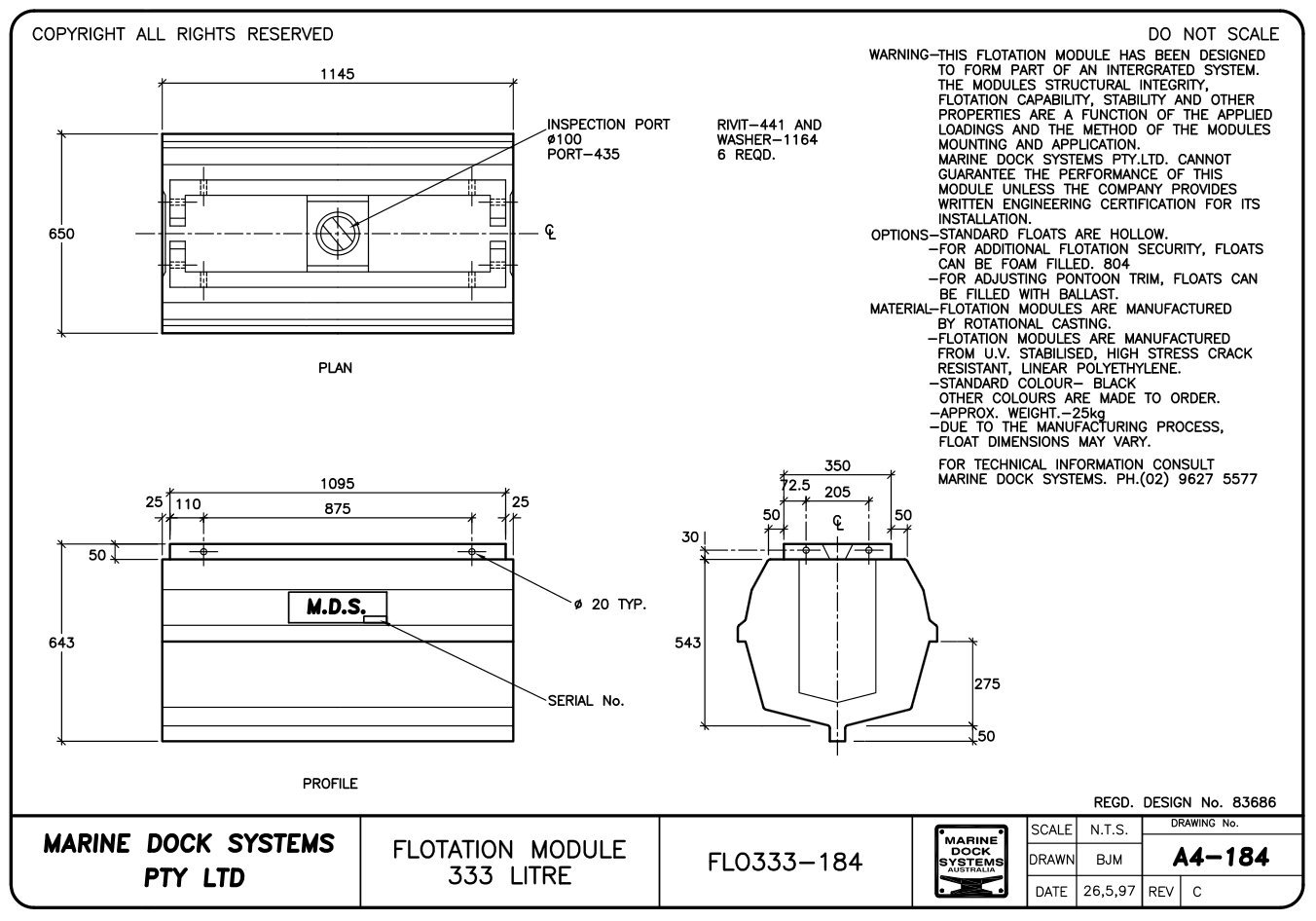

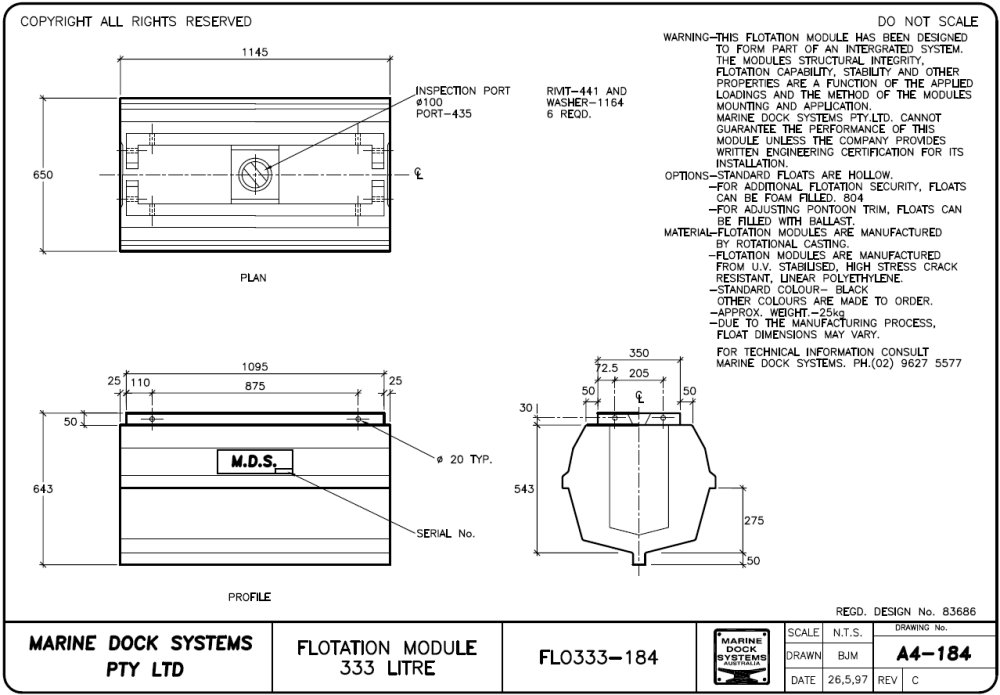

a4-0184 - 333 Litre float

a4-0184 - 333 Litre float

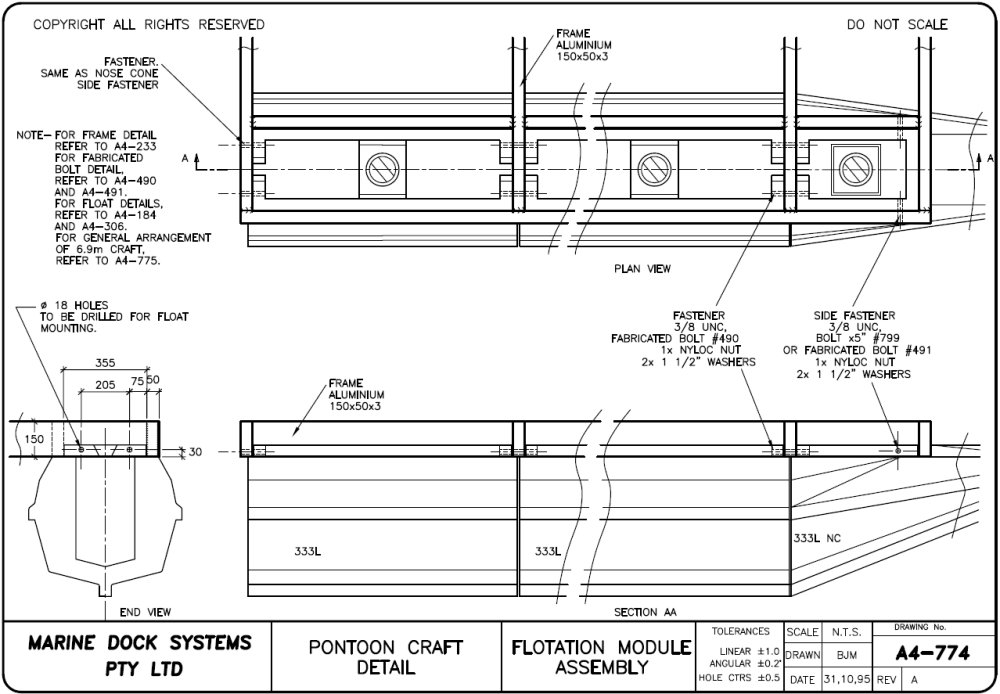

a4-0774 float assembly detail

a4-217 Hydrostatic graph

a4-0306 - 333 Nose Cone

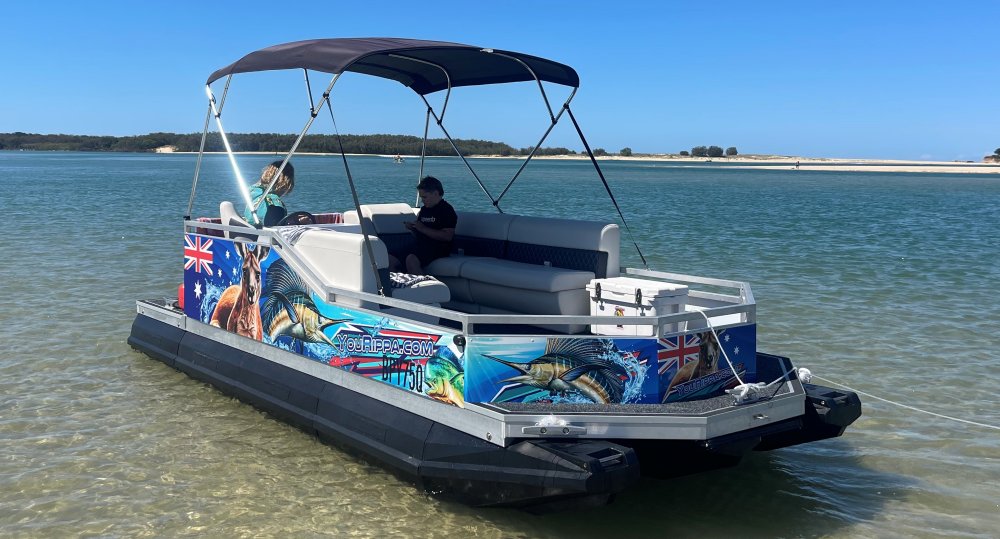

Pontoon Boats
3.4 Mtr Boats
4.6 Mtr Boats
5.7 Mtr Boats
6.9 Mtr Boats

Craft assembly

A4-0774 - Craft assembly

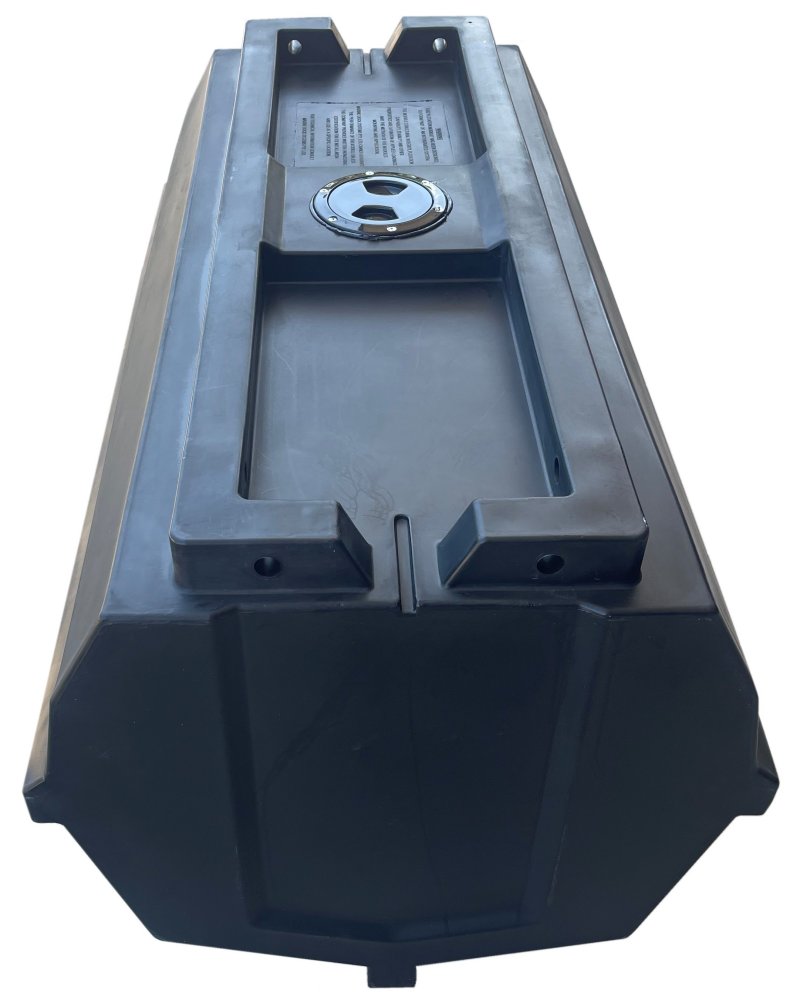

333 Litre Flotation Hull

A4-0184 - 333 Litre # FLO333-184
Max load 160kg

Pump pontoon

A4-0927 - Pump pontoon
Max evenly distributed pay load 300kg

Light Ramp

a4-2900 - Aluminium Ramp 6mtr x 0.6 with 333 litre float attached<

Pump pontoon

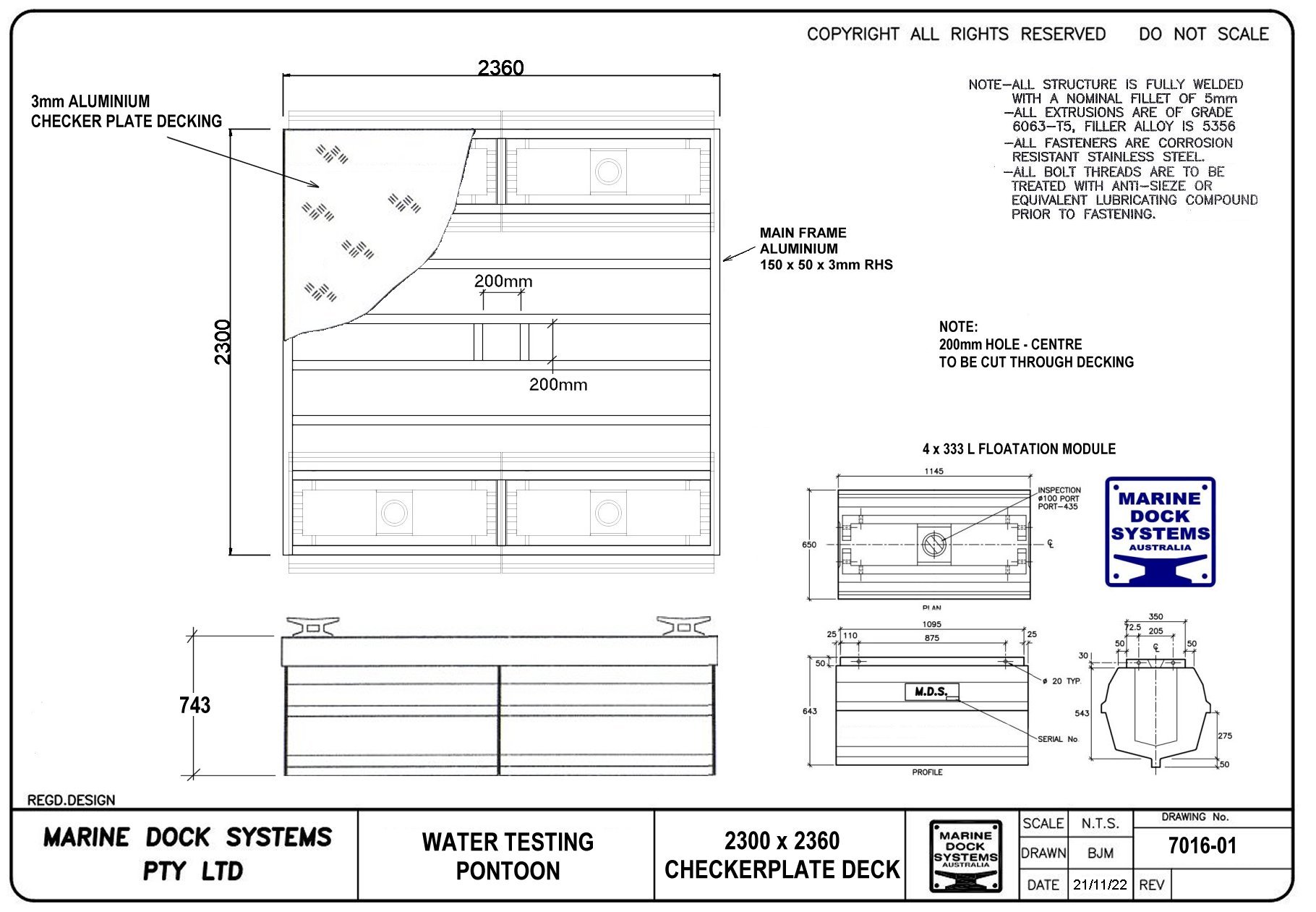

Drawing # 7016 - Pump pontoon 2300 x 2360
Max evenly distributed pay load 600kg

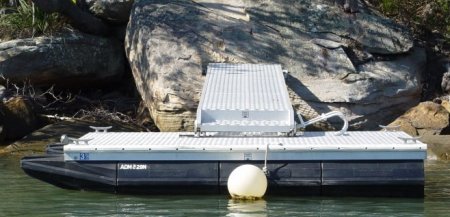

333 Litre floats can be used for small residential, swimming and pump pontoons. Here is a example of a great little pontoon one of our customers put together. Great work!
