POLYETHYLENE TRUCK MUDGUARDS LOW PROFILE MUDGUARD

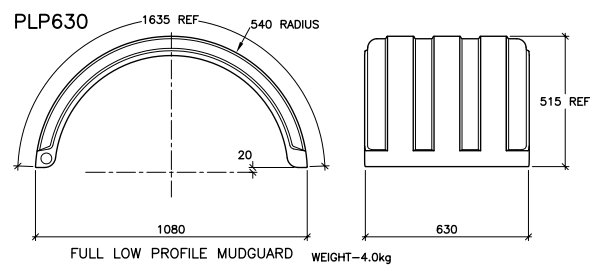

Below is our engineering drawing for our PLP630 polyethylene low profile mudguard. This mudguard suits trucks, trailers and B-doubles that have 19.5 low profile tyres. Manufactured in Australia by Dynaplas from tough, high stress crack-resistant, thermoplastic polyethylene resin.
Part # PLP630.
Weight 4.0kg. Availible in 10 different colours.
PDF Tech Drawing Low profile truck mudguard # PLP630
Truck mudguard and mudguard brackets - Price List Click Here
Reseller, original equipment manufacturers, fleet and trade please contact us for your discount Ph 02 9627 5944
DYNAPLAS POLYETHYLENE TRUCK MUDGUARDS
Proudly Australian-made, Dynaplas polyethylene truck mudguards are built to thrive in the toughest conditions. Manufactured using UV-stabilised, high-density polyethylene, they're guaranteed not to fade, crack or become brittle - even under Australia's harsh sun. These mudguards are incredibly durable, impact-resistant, and virtually maintenance-free, making them the go-to choice for truck and trailer operators who demand long-lasting performance. Backed by decades of industry expertise since 1978, Dynaplas mudguards don't just meet expectations - they set the standard.
|

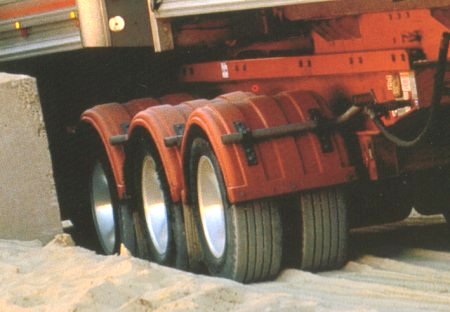

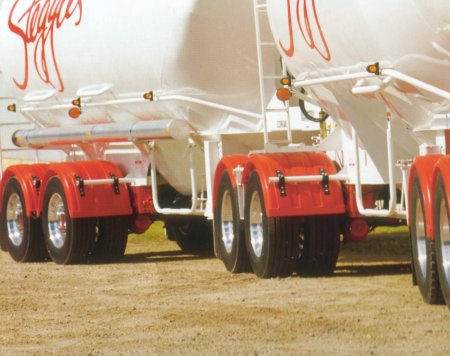

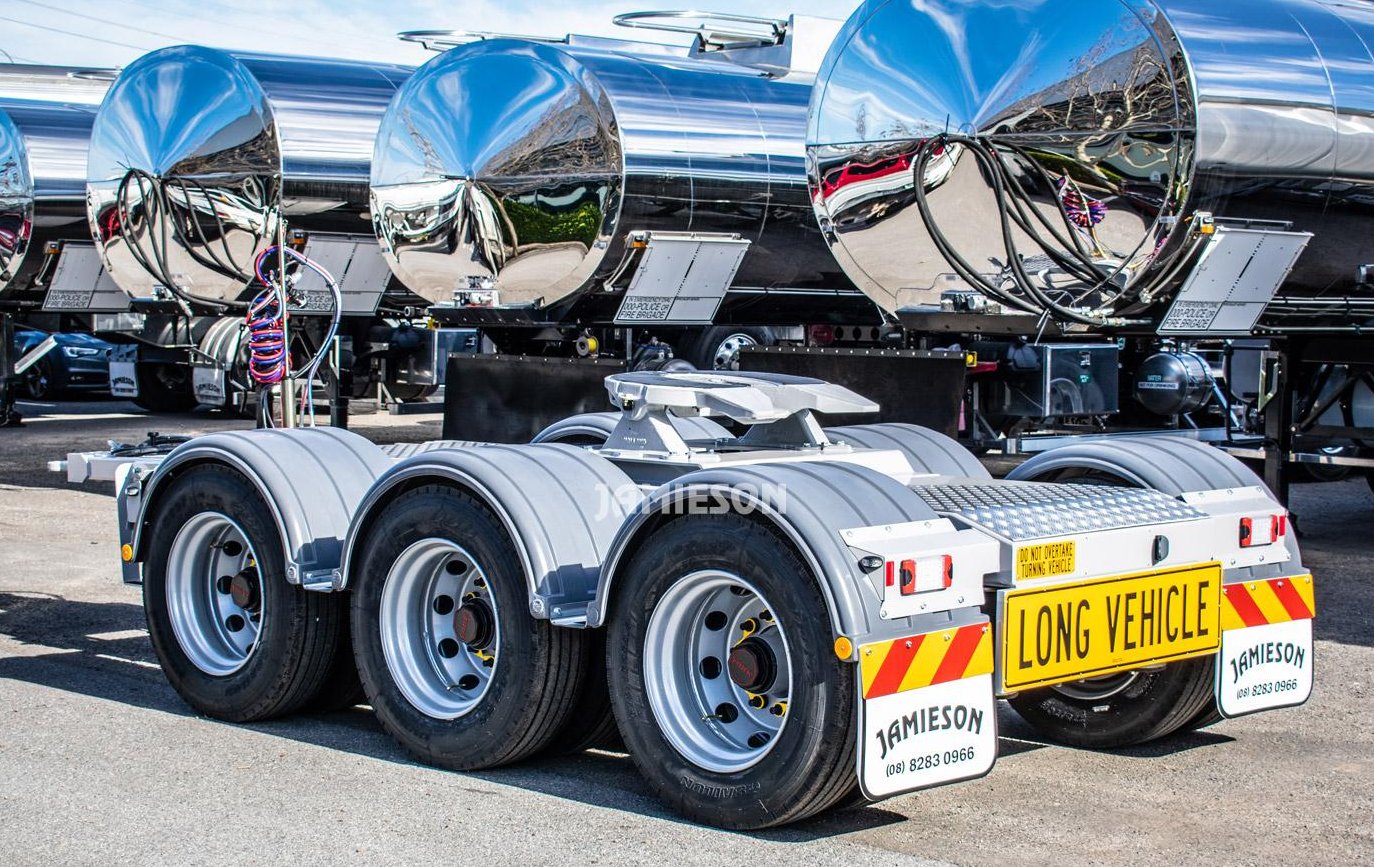

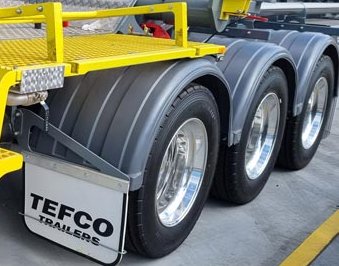

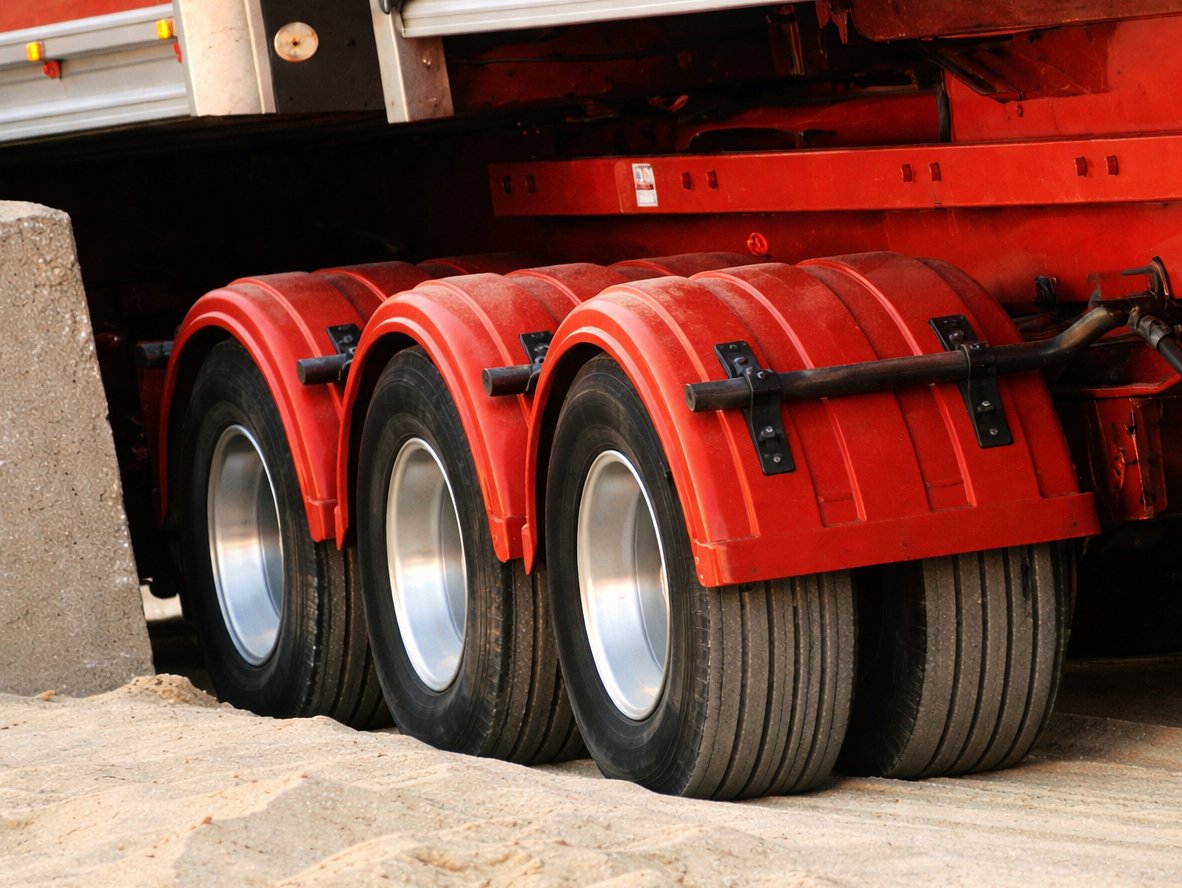

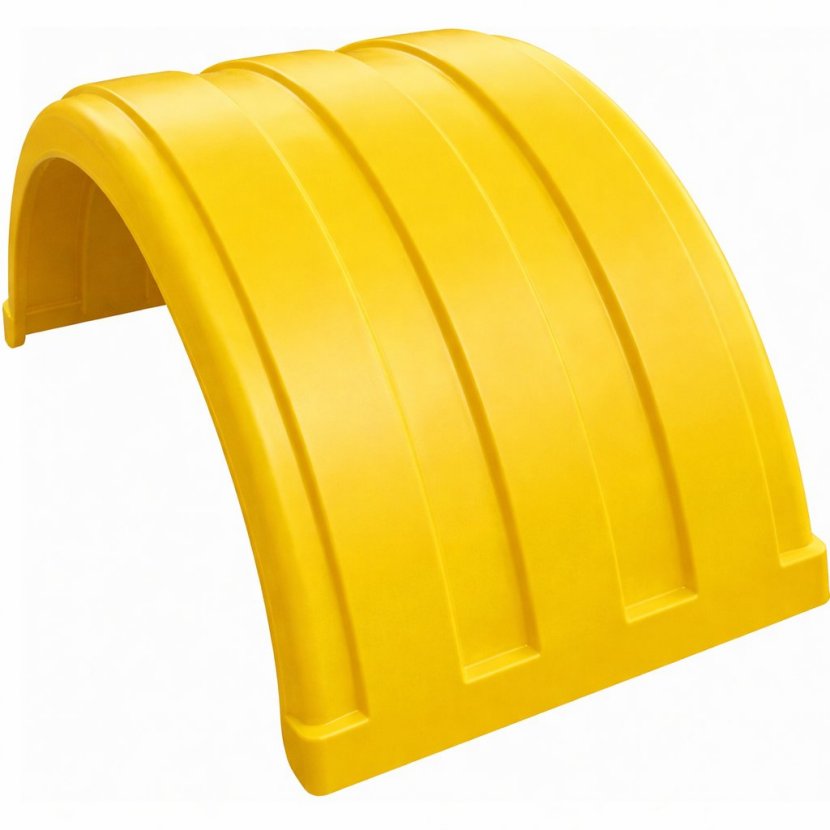

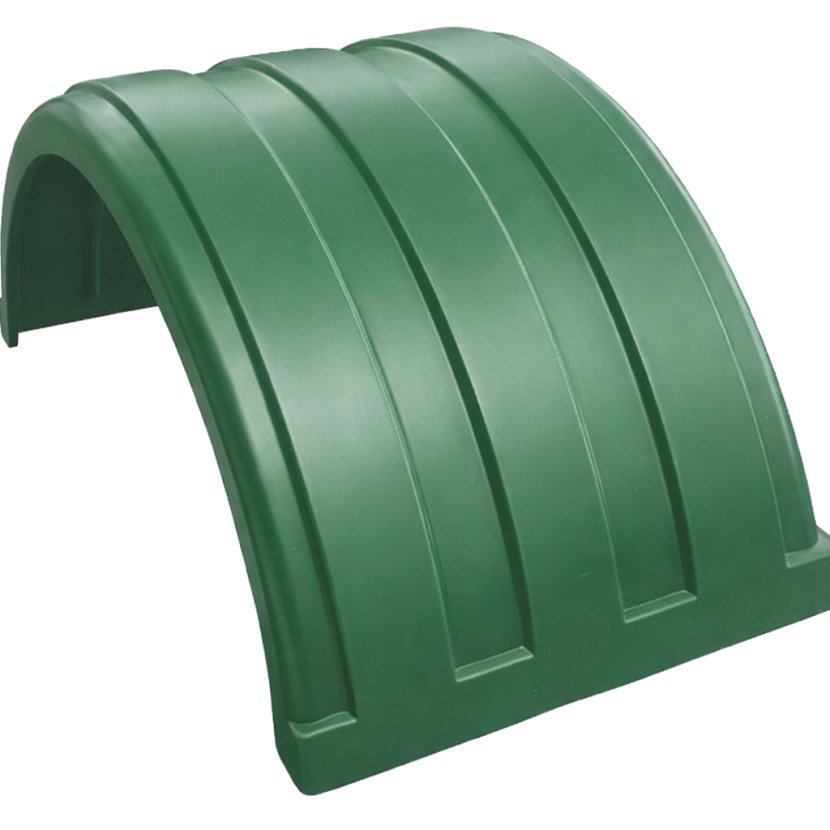

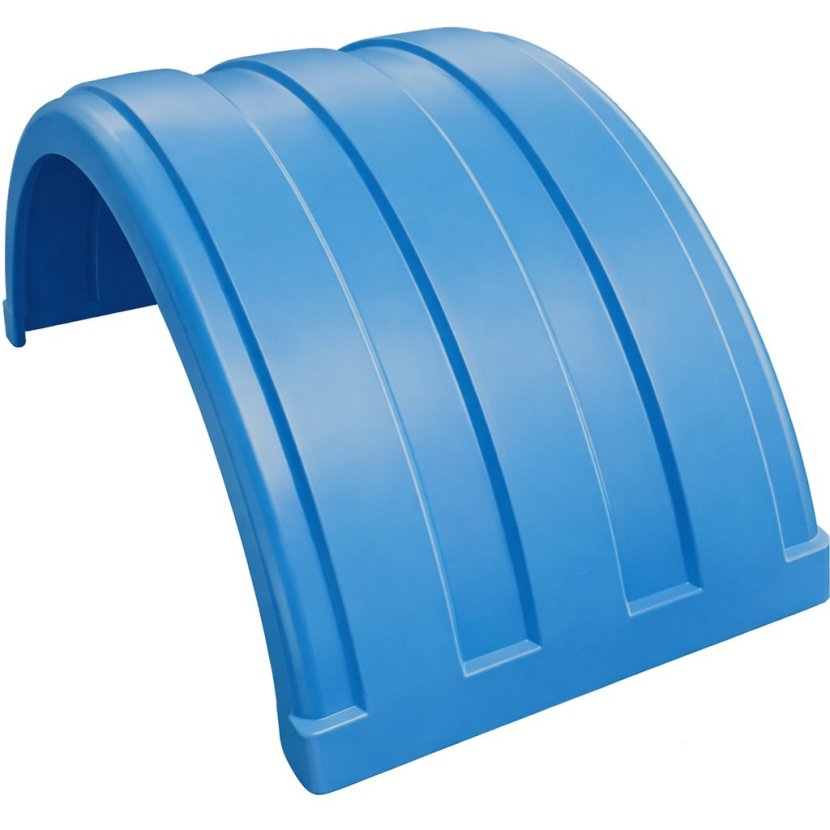

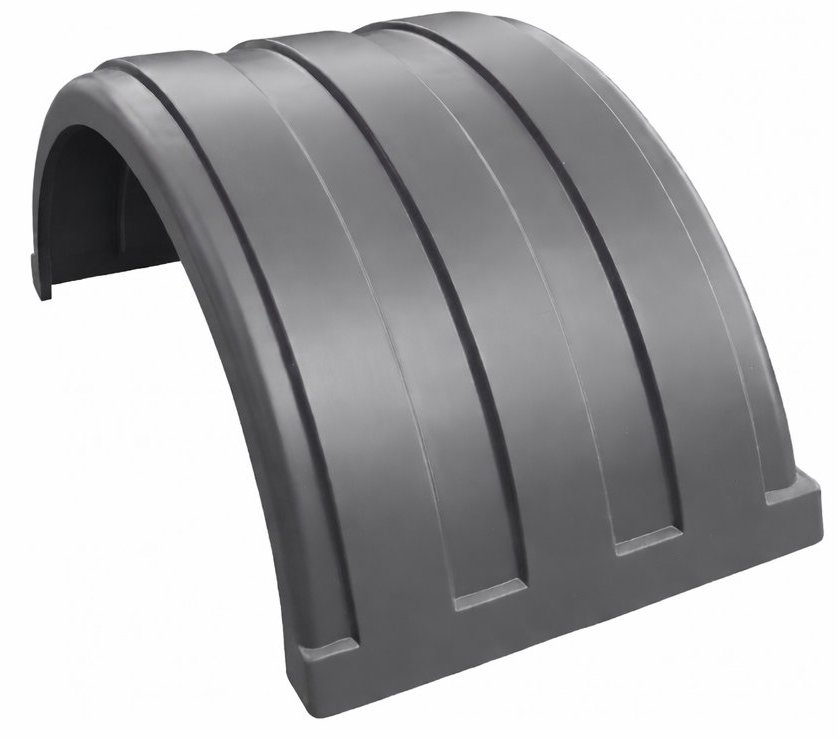

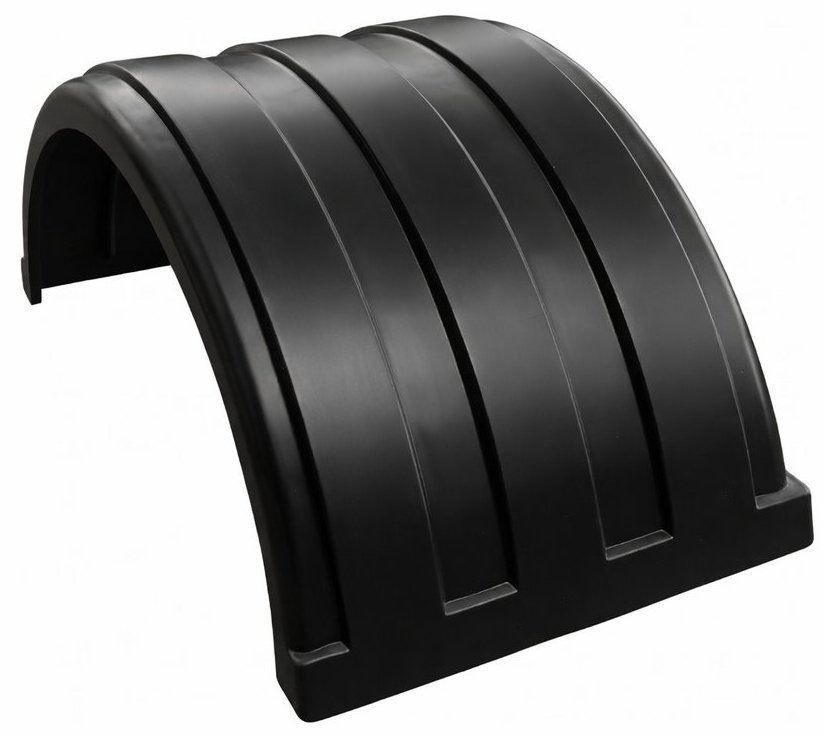

Low Profile Truck Mudguard PLP630 Mudguards fitted
|
Part Numbers and Associated products
Description

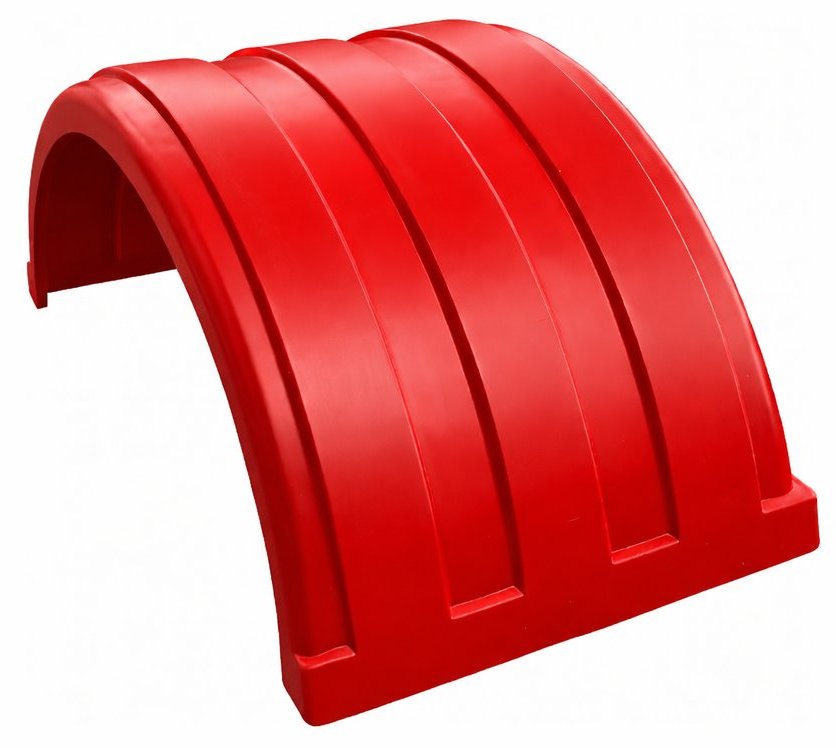

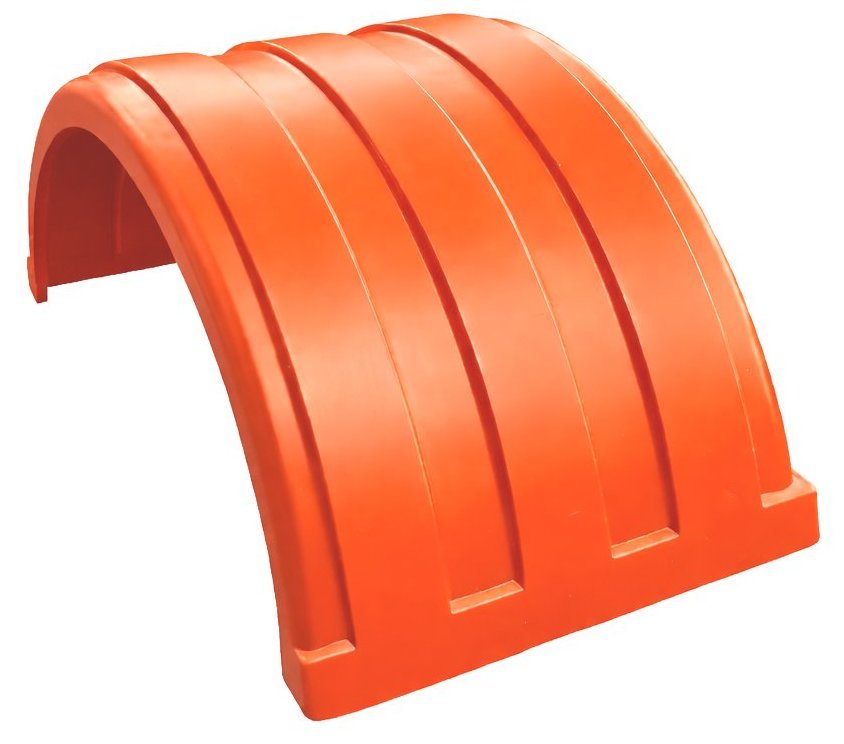

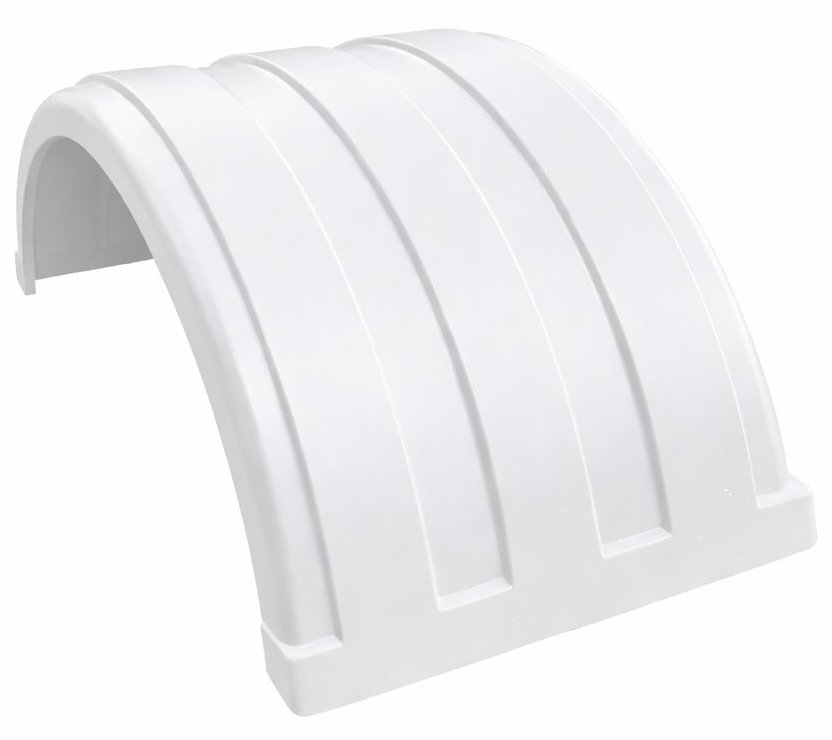

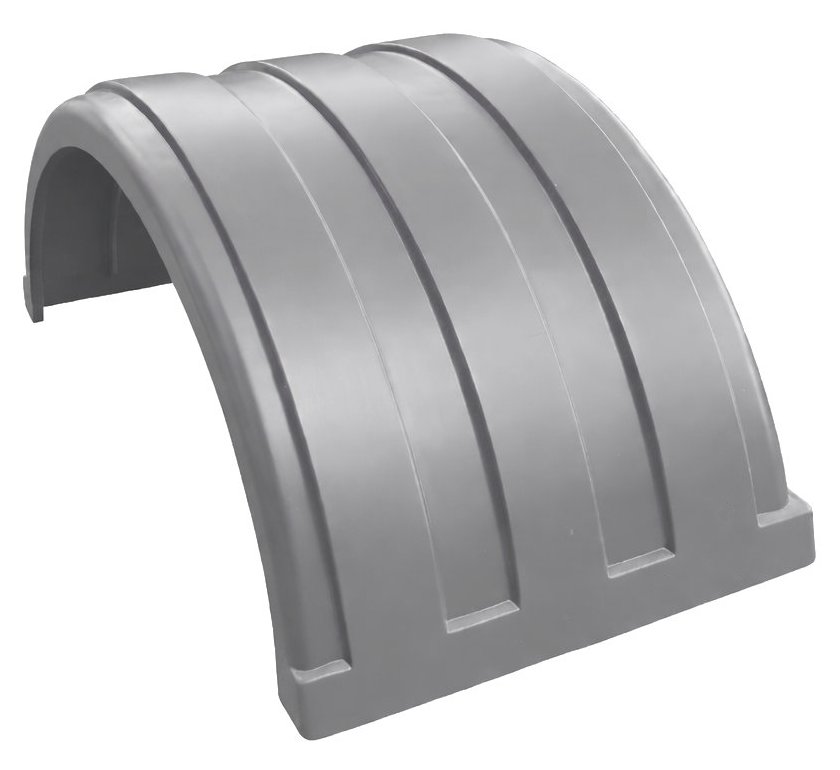

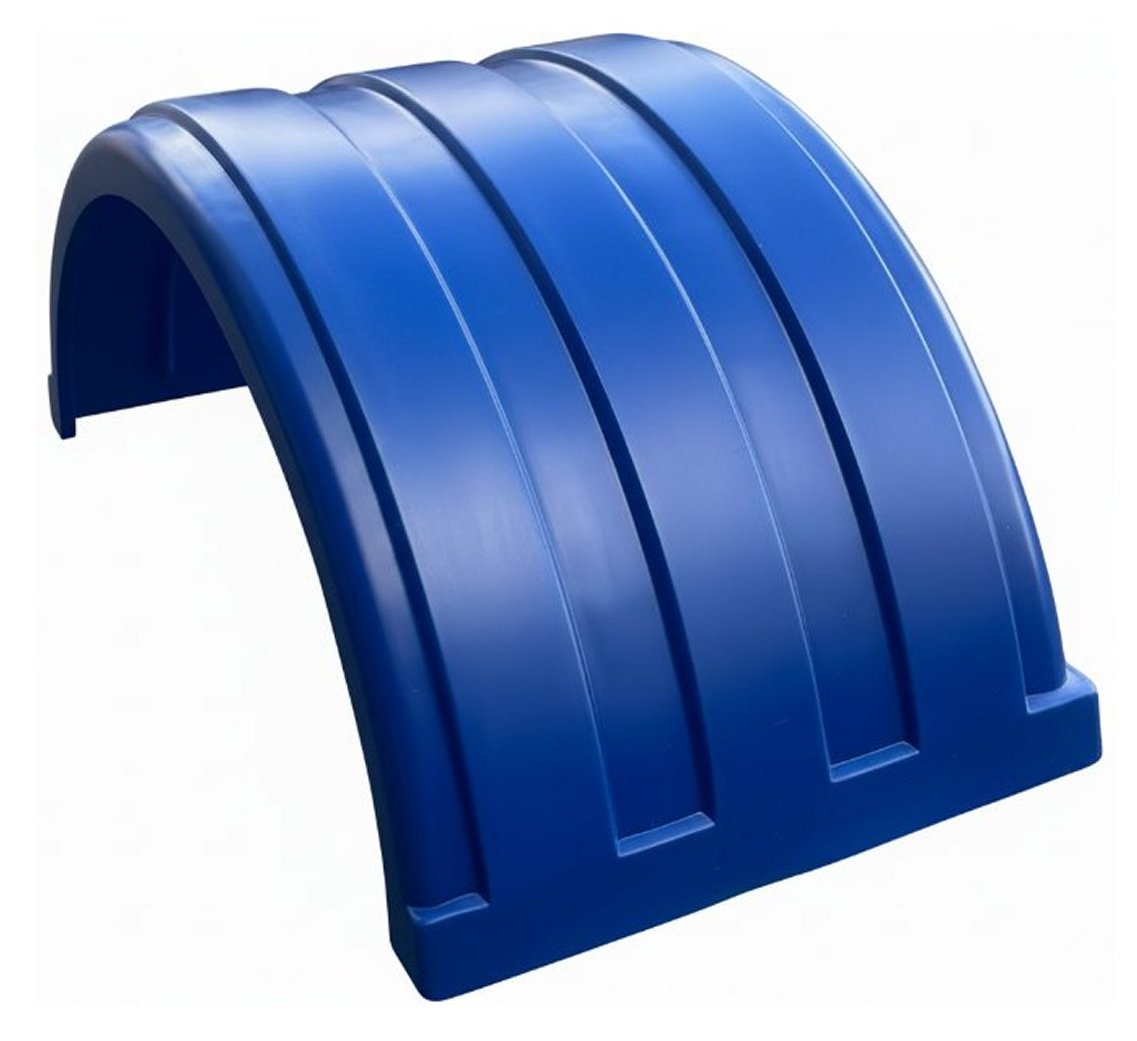

Low Profile Truck Mudguard
Low Profile Truck Mudguard
Low Profile Truck Mudguard
Low Profile Truck Mudguard
Low Profile Truck Mudguard
Low Profile Truck Mudguard
Low Profile Truck Mudguard
Low Profile Truck Mudguard
Low Profile Truck Mudguard
Low Profile Truck Mudguard
|
Colour
Black
Silver
Grey
White
Red
Light Blue
Dark Blue
Dark Green
Orange
Yellow
|
Part
PLP630BK 1
PLP630SL 1
PLP630GY 1
PLP630WH 1
PLP630RD 1
PLP630BU 1
PLP630BU 2
PLP630GN 2
PLP630OR 2
PLP630YL 1
|  |
Shipping Size and Weight Estimates
Qty |
Length |
Width |
Height |
Weight |
Cubic Measurment |
1 x PLP630 |
110cm |
65cm |
60cm |
4kg |
0.43 mtr |
2 x PLP630 |
110cm |
65cm |
65cm |
8kg |
0.46 mtr |
3 x PLP630 |
110cm |
65cm |
70cm |
12kg |
0.5 mtr |
4 x PLP630 |
110cm |
65cm |
75cm |
16kg |
0.54 mtr |
5 x PLP630 |
110cm |
65cm |
80cm |
20kg |
0.57 mtr |
6 x PLP630 |
110cm |
65cm |
85cm |
24kg |
0.60 mtr |
7 x PLP630 |
110cm |
65cm |
90cm |
28kg |
0.64 mtr |
8 x PLP630 |
110cm |
65cm |
95cm |
32kg |
0.68 mtr |
9 x PLP630 |
110cm |
65cm |
100cm |
36kg |
0.72 mtr |
10 x PLP630 |
110cm |
65cm |
105cm |
44kg |
0.75 mtr |
11 x PLP630 |
110cm |
65cm |
110cm |
48kg |
0.79 mtr |
12 x PLP630 |
110cm |
65cm |
115cm |
52kg |
0.82 mtr |
|
