Spray Suppressant

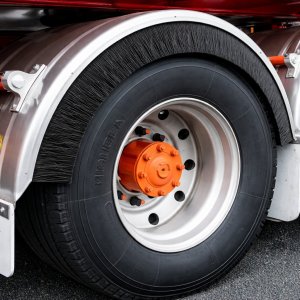

Dynaplas supplies anti spray kits to fit up a pair of mudguards.
Part # SSKIT-P100R. The kit contains two stainless
steel arches fitted with 100mm Poly bristles. Contains all fasteners.
This kit will fit P630, P470, ST630C, and A630C.
Below are fitting instructions for installing the
Spray Suppressant Kit onto our plastic mudguards.
|
|
 |

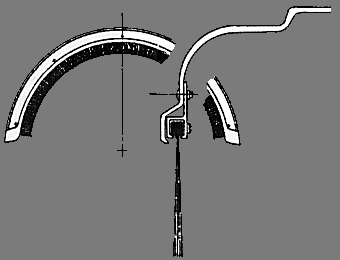

Ensure the 5 spray suppressant retaining clips
are spaced evenly around the suppressant, all
facing the same direction.
|
|
Position the suppressant evenly on the inside
of the mudguard & using the clip as a guide
drill a 5mm hole at the top clip position. |
|

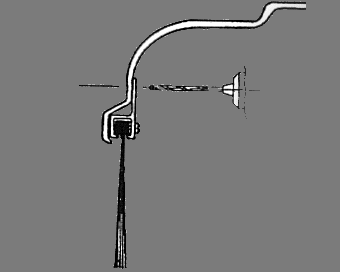

Attach the clip to the mudguard with the supplied
rivet, with the head on the outside.
|
|

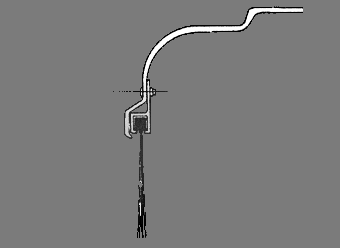

Drill & rivet the 4 remaining clips, working from
the centre out. |
|
