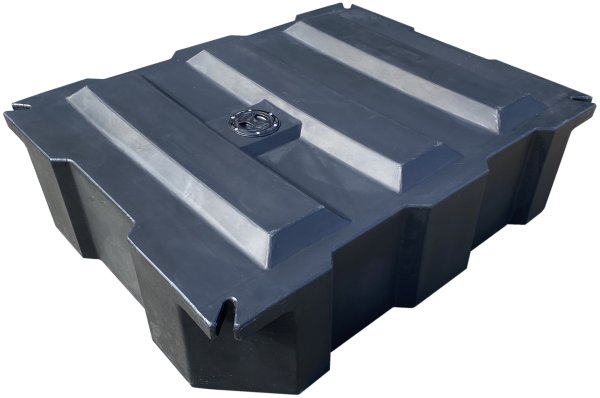

650 LITRE FLOTATION MODULE This float has been specifically designed for use under residential docks. The basic shape has been patterned after the successful 1200 litre and 900 litre commercial marina floats. A residential dock 2.4m x 3.6m uses 4 of these 650 litre floats. Floats can be filled with water or concrete to add ballast to increase stability. Ballast can also be used to raise and lower the float for different freeboard requirements. Floats can also be foam filled for extra security if required. Max load 300kg, 450kg when foam filled

Size
1500mm long
x 1200mm wide
x 430mm deep
Product weight 40kg, 65kg foam filled.

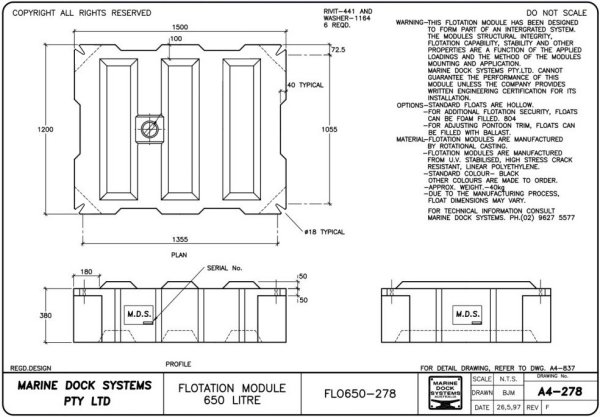

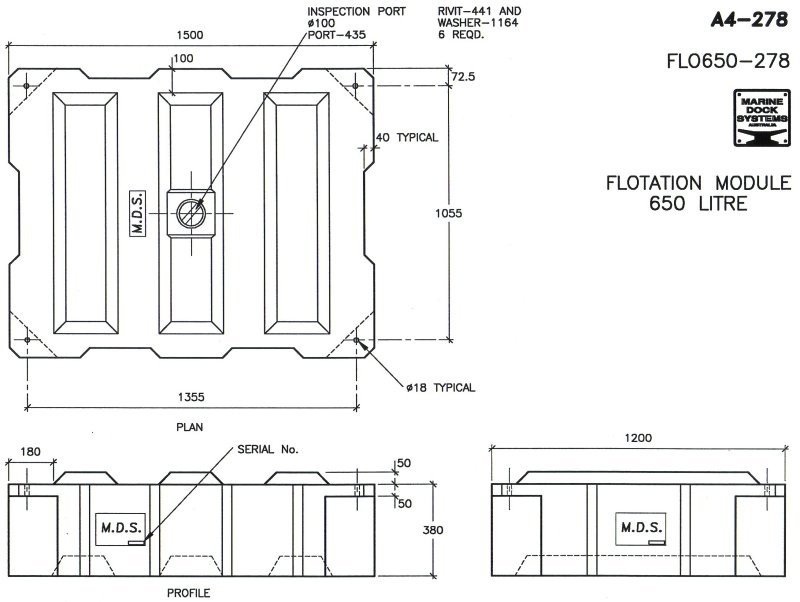

Drawing a4-0278 - 650 Litre float

650 Litre Floatation Module

A4-0278 650 Litre Float		 Pontoon 3.6 x 2.4 mtr Alloy Frame

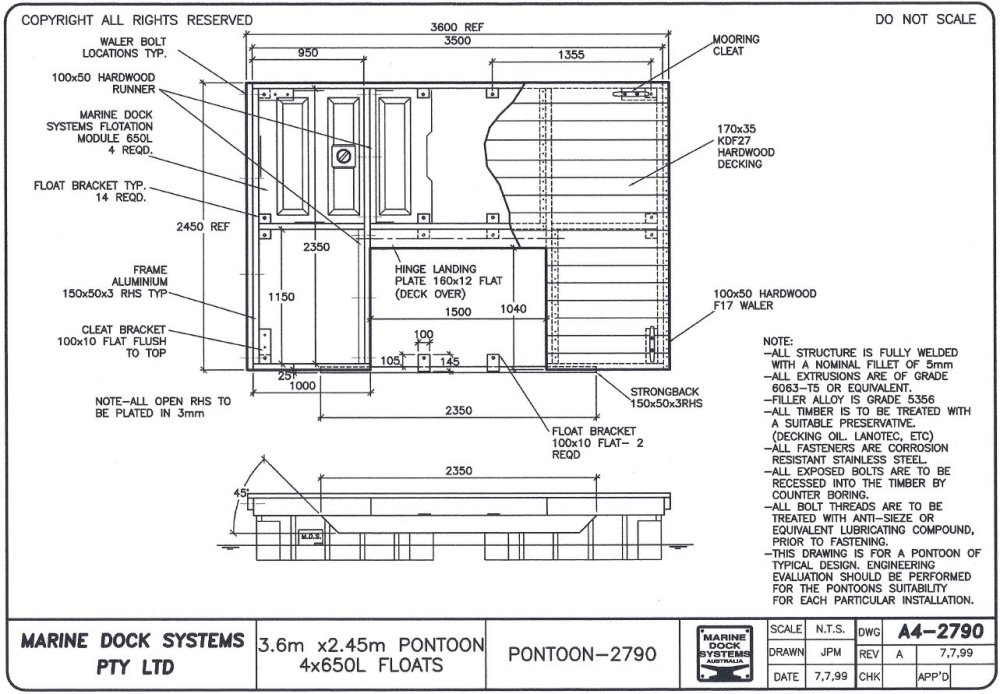

A4-2790 3.6mtr x 2.4 mtr pontoon alloy frame timber deck
Pontoon 3.7 x 2.46mtr Timber Frame

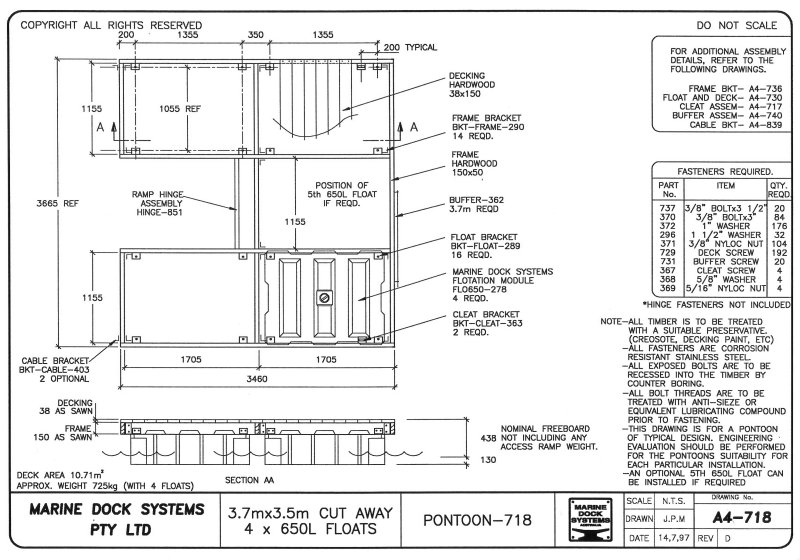

A4-330 Pontoon 3.7 mtr x 2.46		 Pontoon 3.7 x 3.5mtr Timber Frame

A4-718 3.7 mtr x 3.5 (4 x 650 Litre Floats)
with ramp cut out

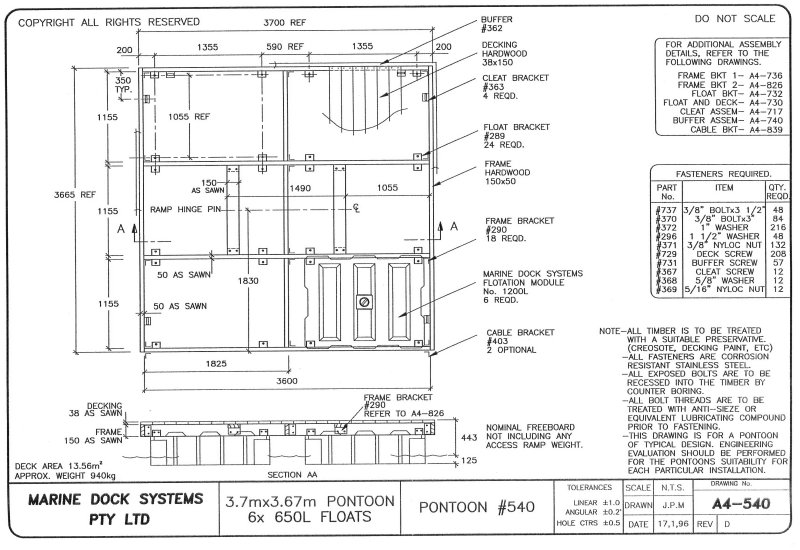

Pontoon 3.7 x 3.8mtr Timber Frame

A4-0540 Pontoon 3.7 mtr x 3.67 (6 x 650 Litre Floats)		 Pontoon 5.2 x 2.5mtr Timber Frame

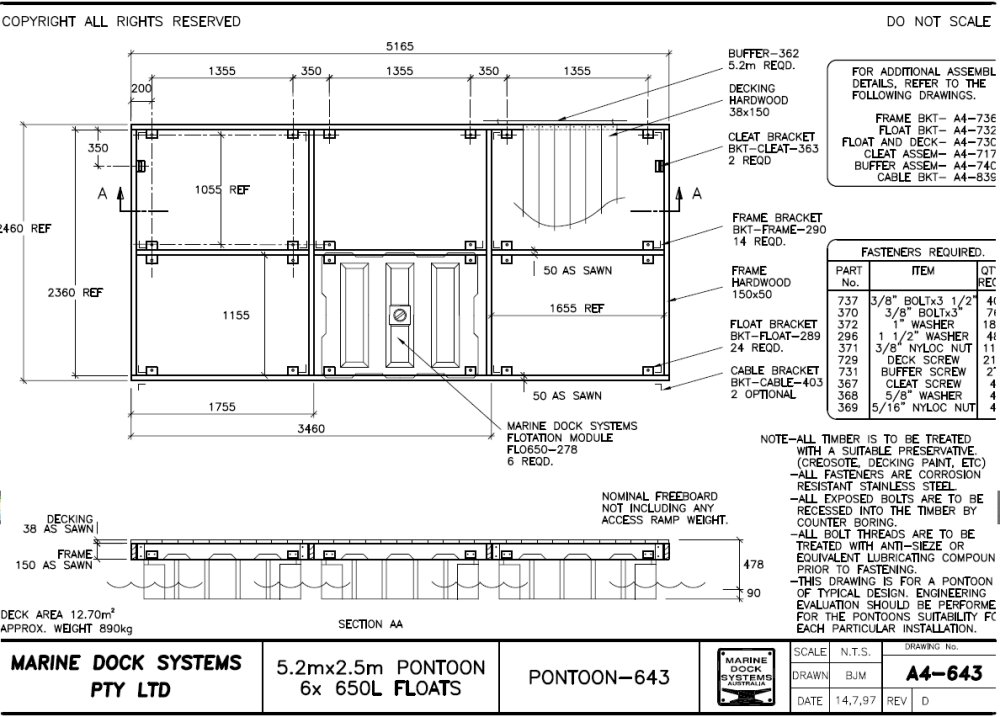

A4-0643 Pontoon 5.2 mtr x 2.5 (6 x 650 Litre Floats)
Pontoon 6 x 1.55mtr Timber Frame

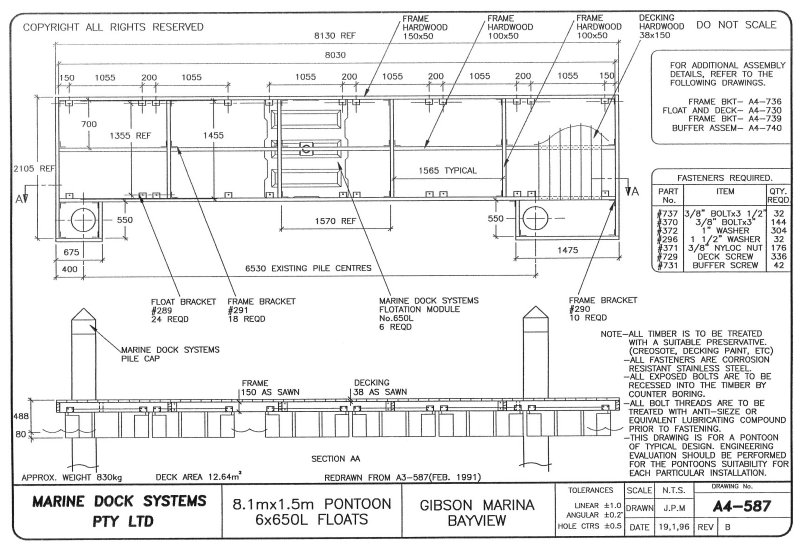

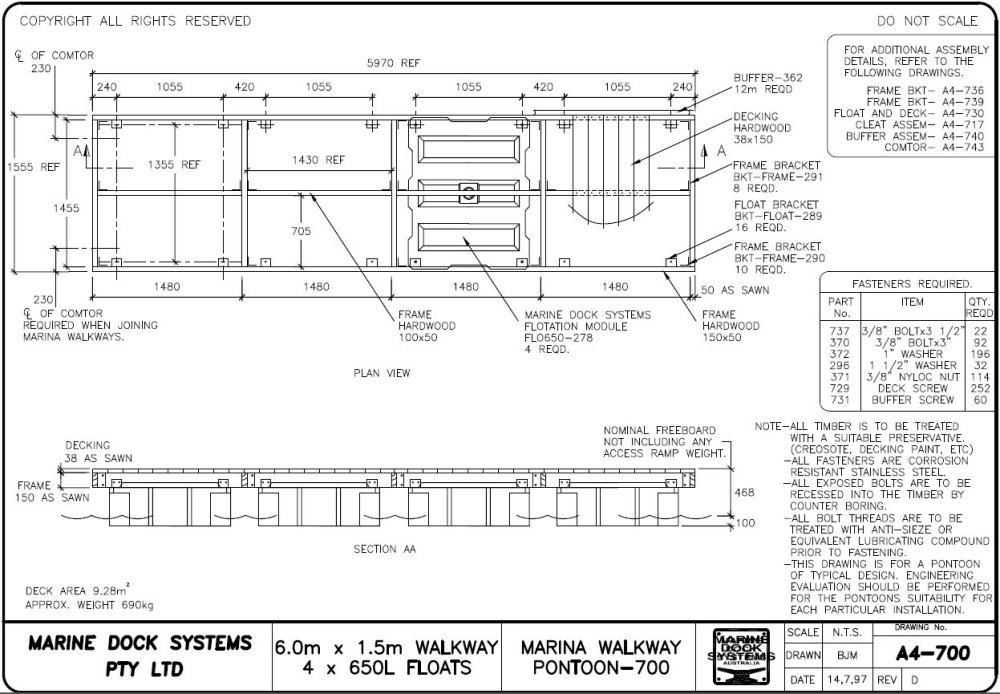

A4-0700 Pontoon 6 mtr x 1.55 (4 x 650 Litre Floats)		 Pontoon 8 x 1.5mtr Timber Frame

A4-0587 Pontoon 8.1 mtr x 1.55 (6 x 650 Litre Floats)

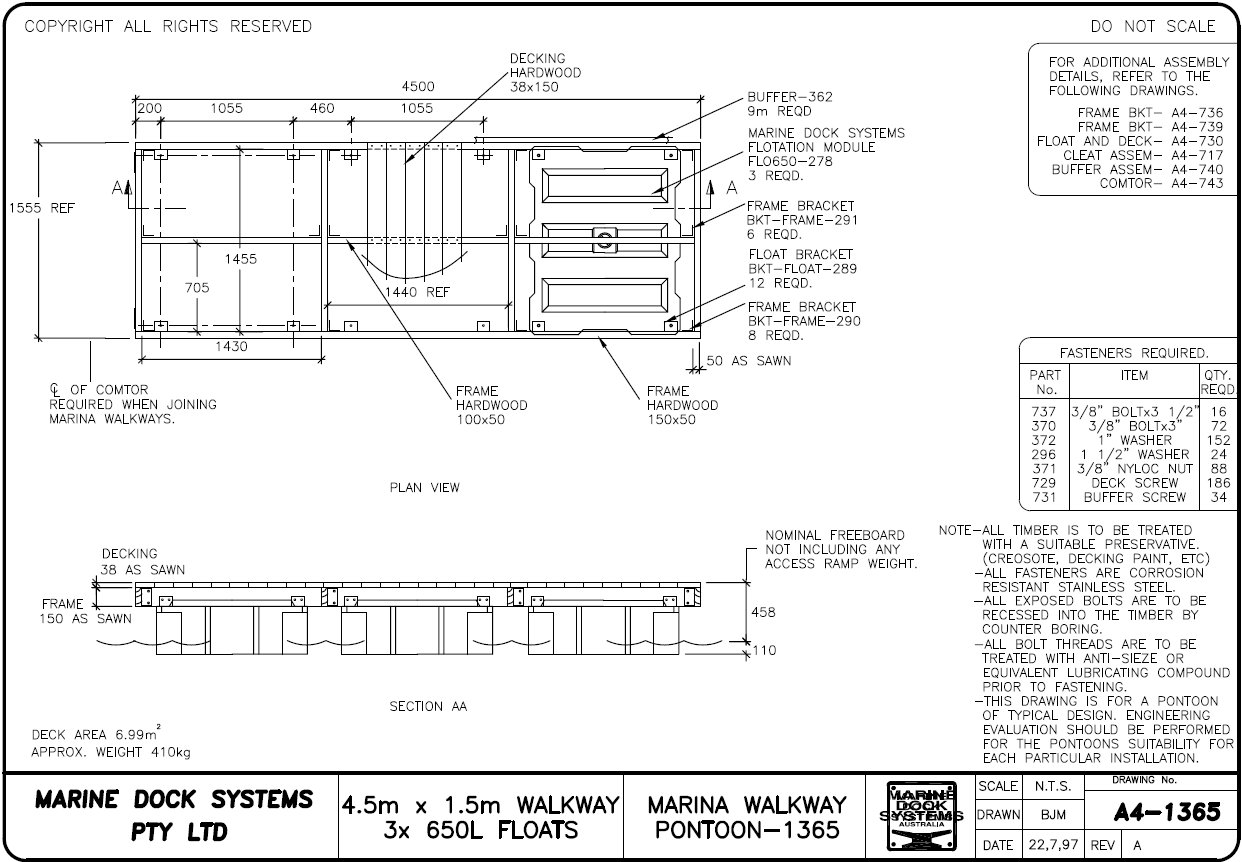

Pontoon 4.5 x 1.55mtr Timber Frame

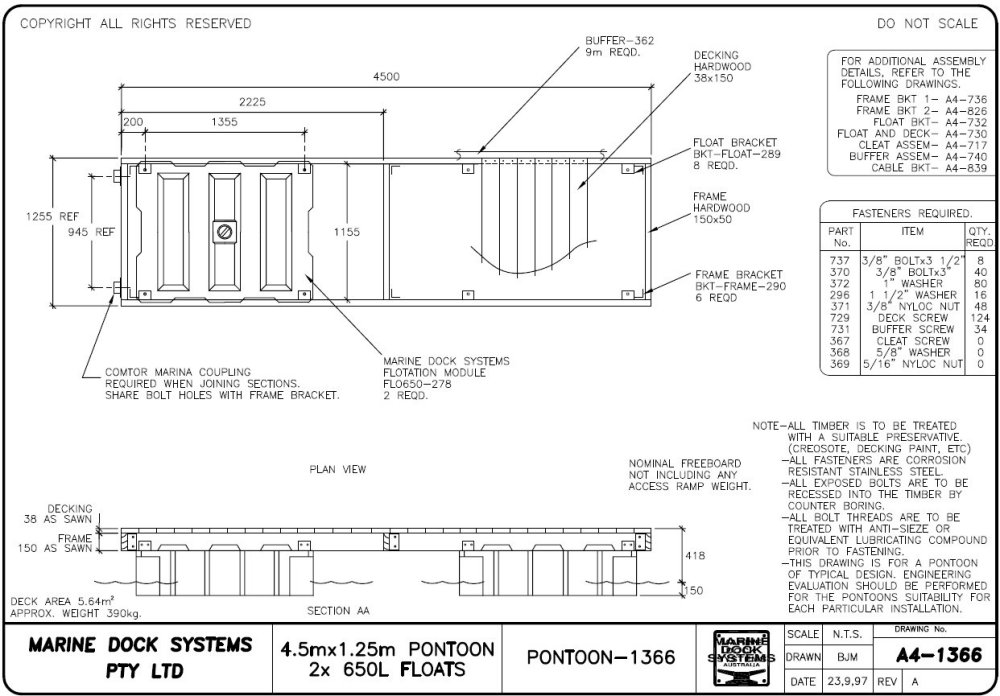

a4-1365 4.5m x 1.55m Timber walway pontoon (3 x 650 Litre Floats)		 Pontoon 4.5 x 1.5mtr Timber Frame

a4-1366 4.5m x 1.25m Timber walway pontoon (2 x 650 Litre Floats)

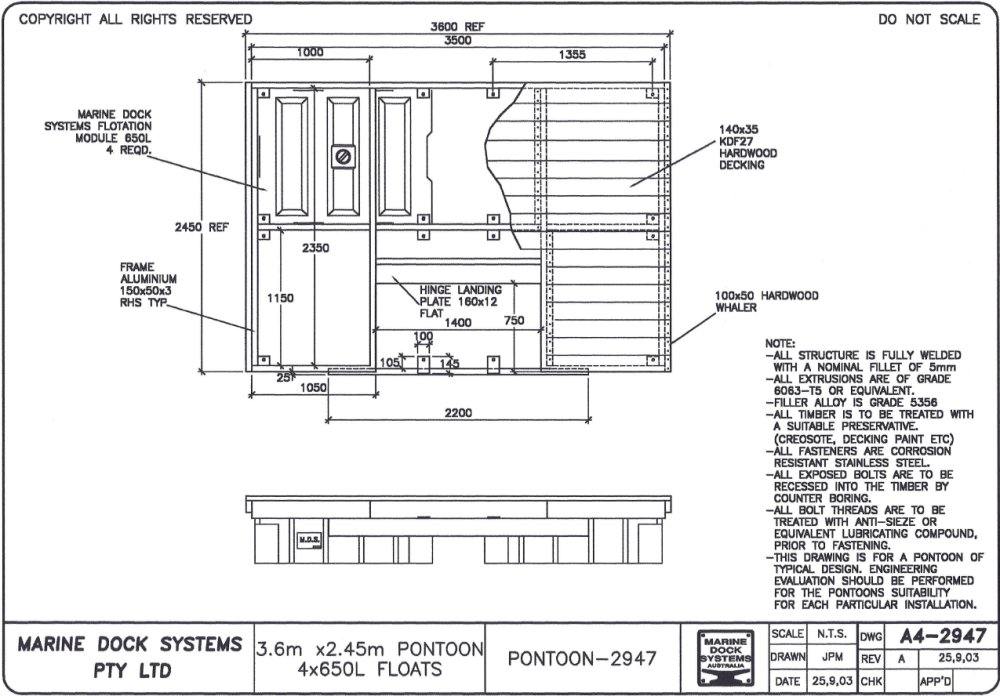

Pontoon 3.6 x 2.45mtr Alloy Frame

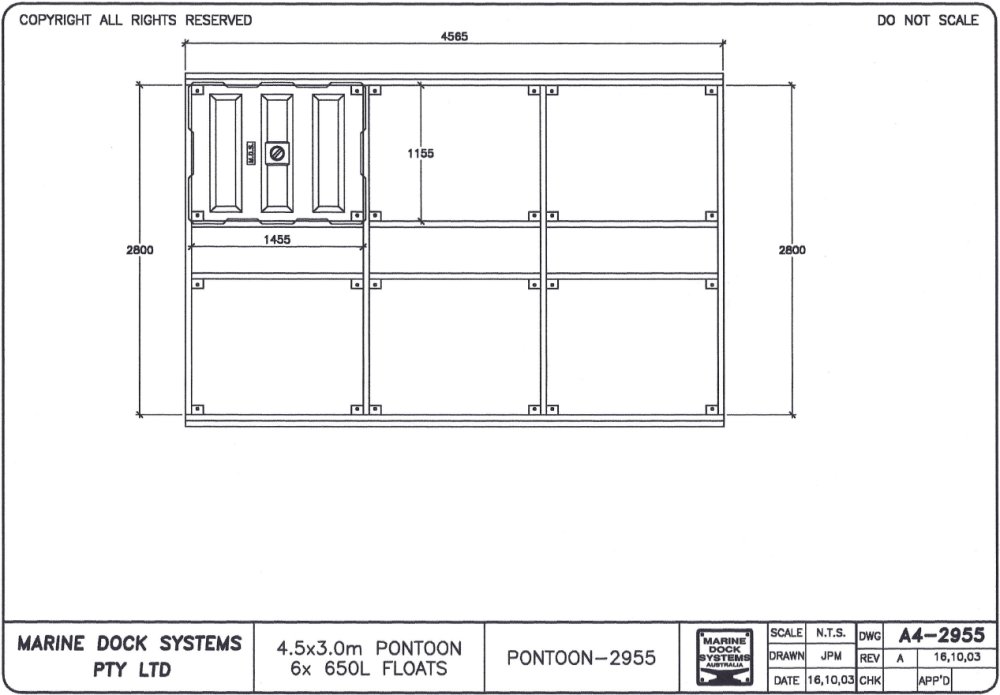

A-2947 - Aluminium Framed Timber deck Pontoon 3.6 mtrs x 2.45 wide, with cut out		 Pontoon 4.5 x 3mtr Alloy Frame

A4-2955 - Pontoon 4.5m x 3m alloy frame timber deck - 6 x 650 Floats

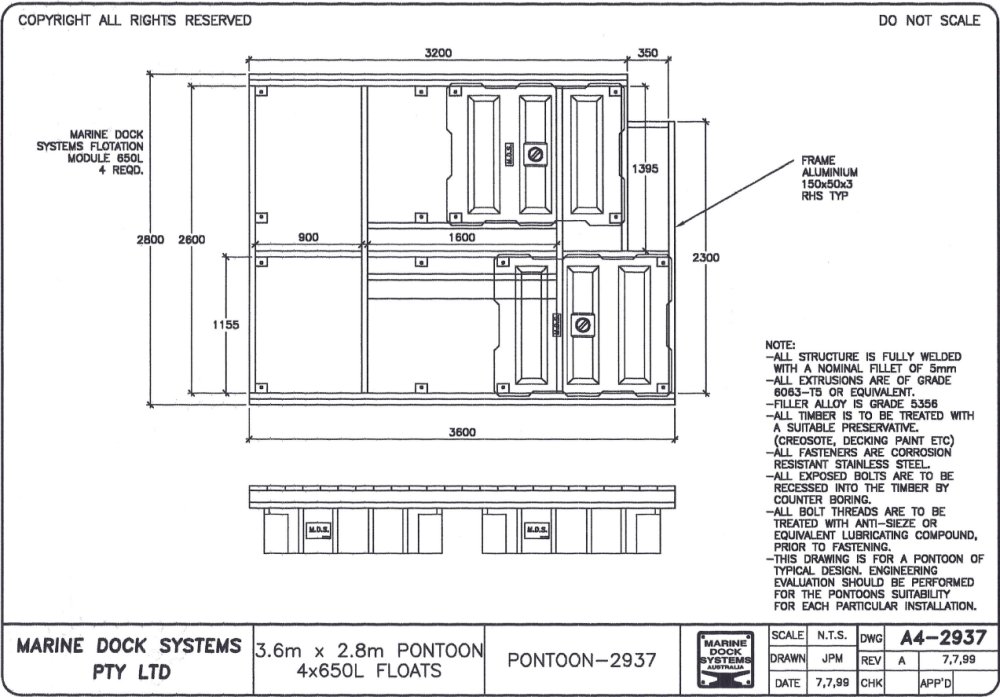

Pontoon 3.6 x 2.8mtr Alloy Frame

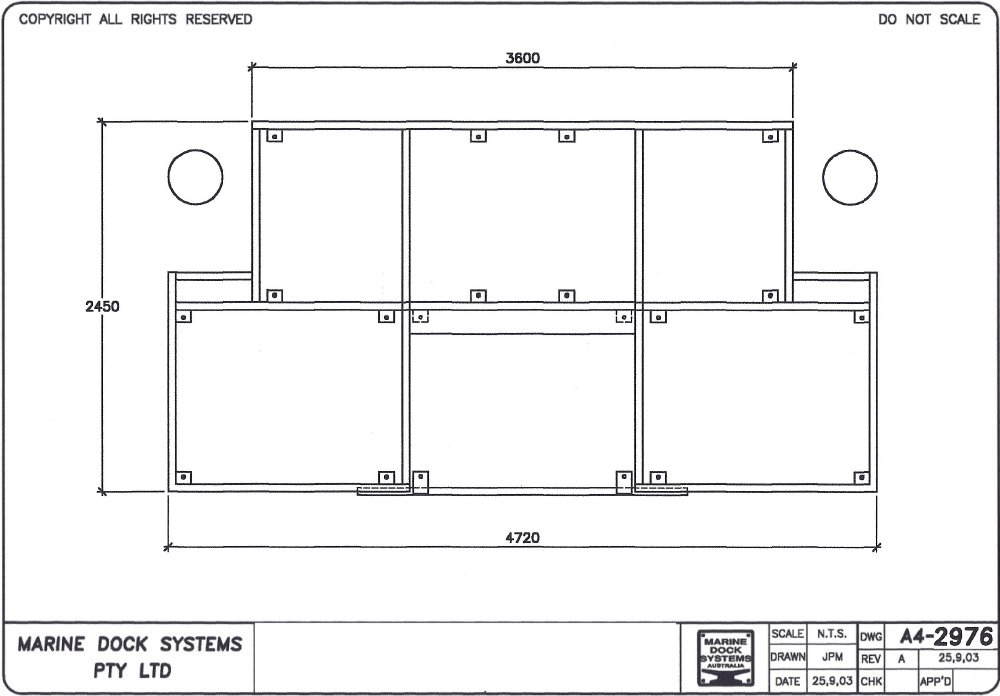

A4-2937 - Pontoon 3.6m x 2.8m alloy frame timber deck - 4 x 650 Floats		 Pontoon 4.7 x 2.5m Alloy Frame

A4-2976 - Pontoon 4.7 x 2.5m alloy frame timber deck - 5 x 650 Floats

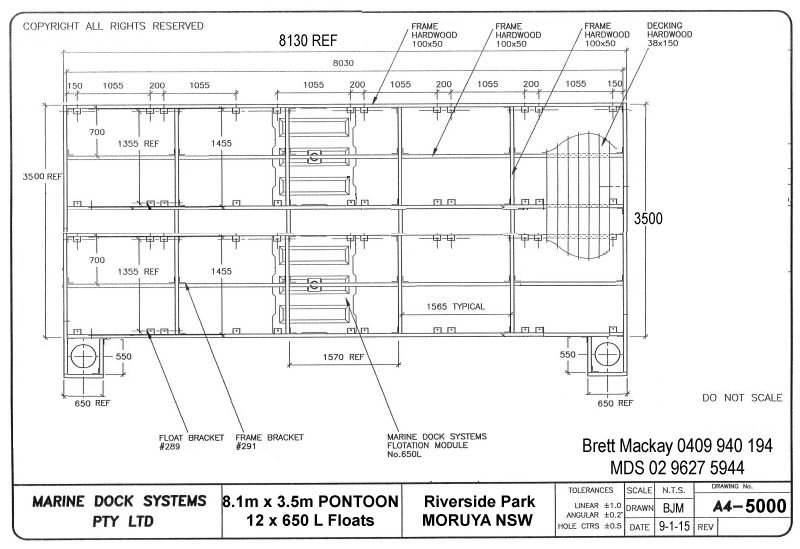

Pontoon 8.1 x 3.5mtr Timber Frame

A4-5000 - Pontoon 8.1 x 3.5mtr Timber Frame		 Pontoon 8.1 x 3.5mtr Timber Frame

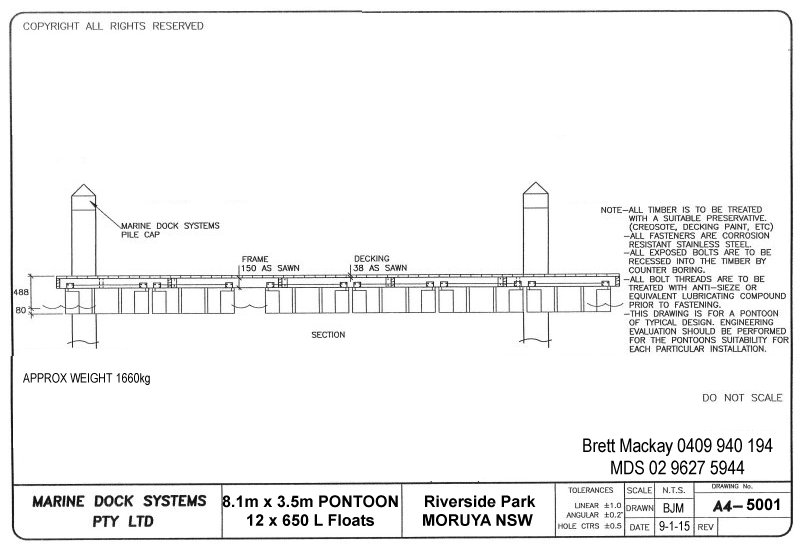

A4-5001 - Pontoon 8.1 x 3.5mtr Section View

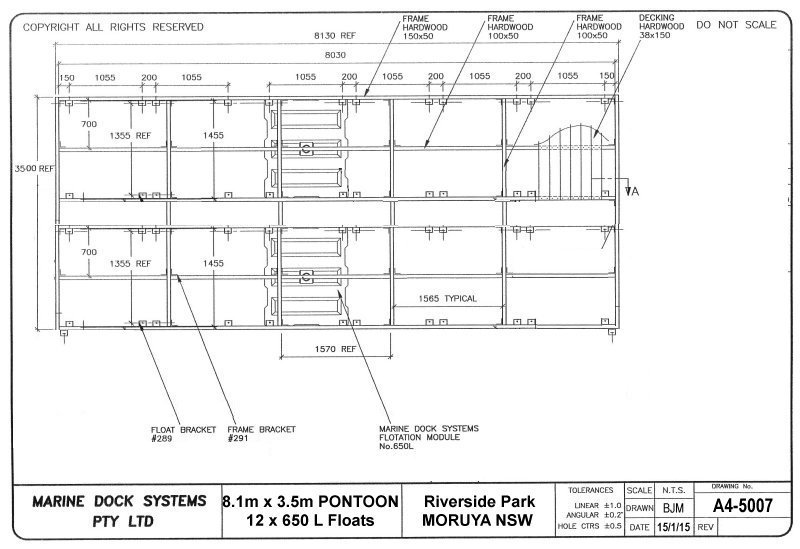

Pontoon 8.1 x 3.5mtr Timber Frame

A4-5007 - Pontoon 8.1 x 3.5mtr Timber Frame		 Pontoon 8.1 x 3.5mtr Lay Out

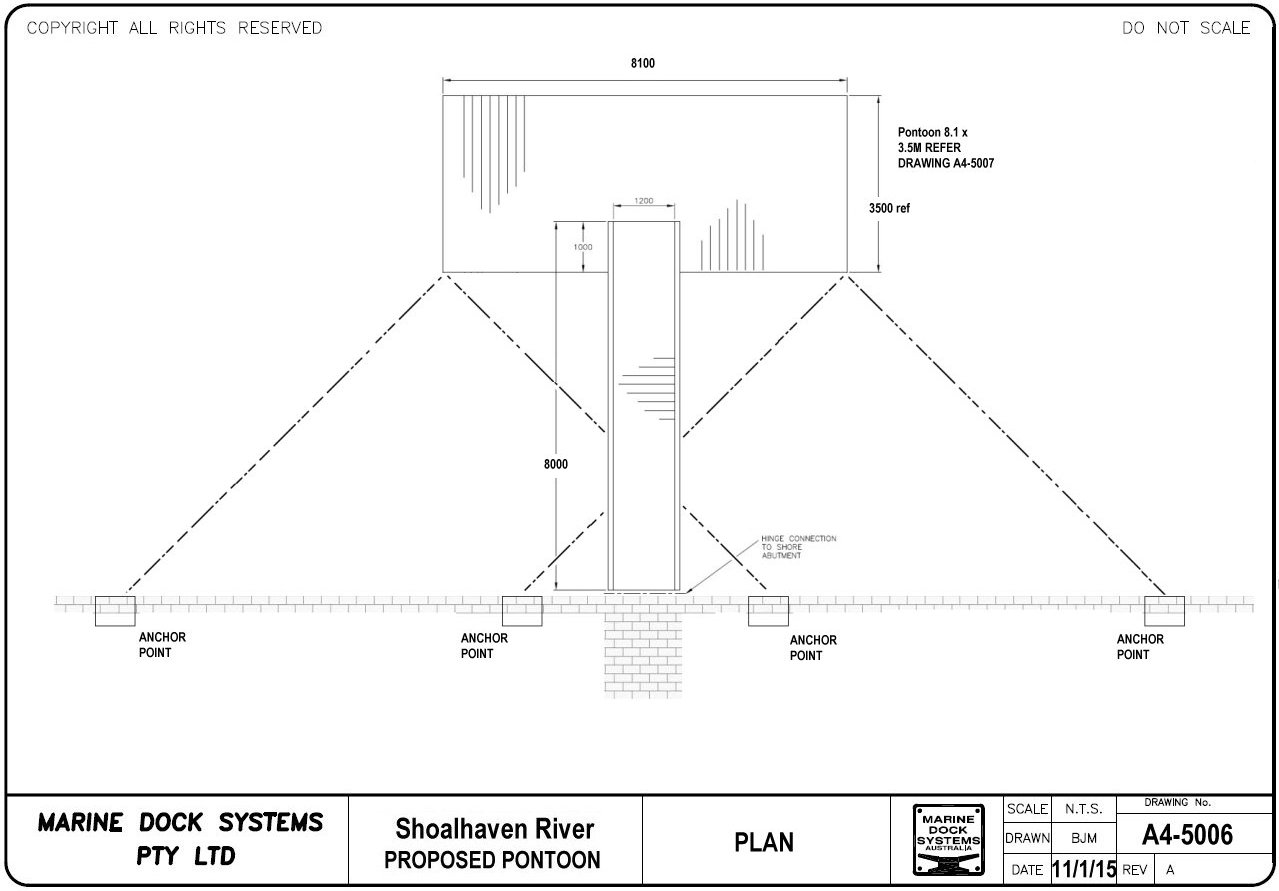

A4-5006 - Pontoon 8.1 x 3.5mtr Lay Out










Industrial Pump pontoons

Submersible Pump pontoon - 1 x 650

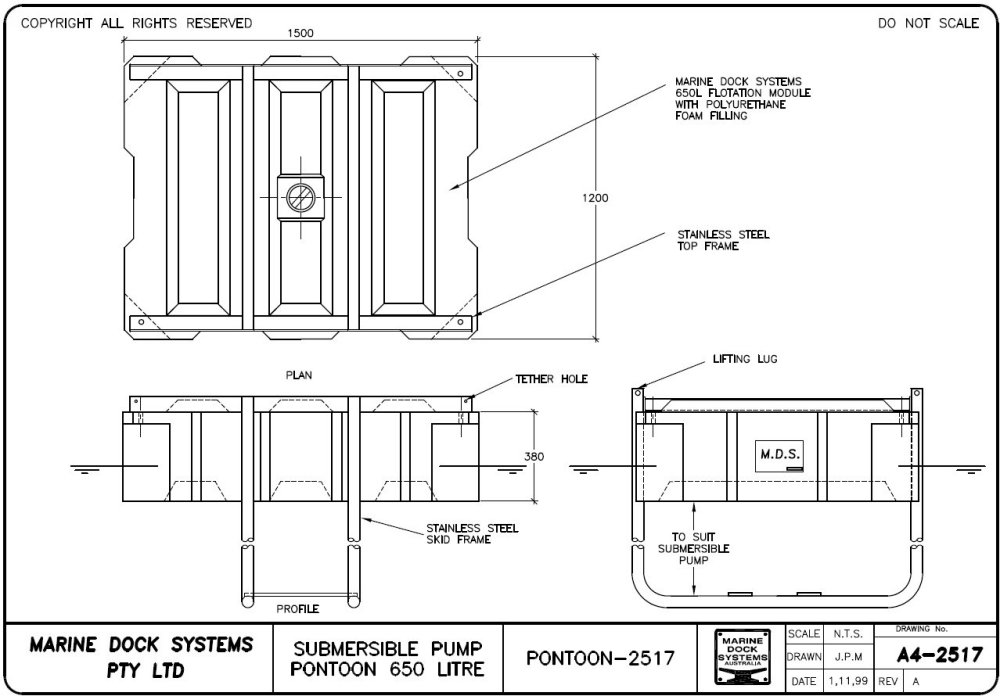

A4-2517 - Submersible Pump pontoon - 1 x 650		 Submersible Pump pontoon - 2 x 650

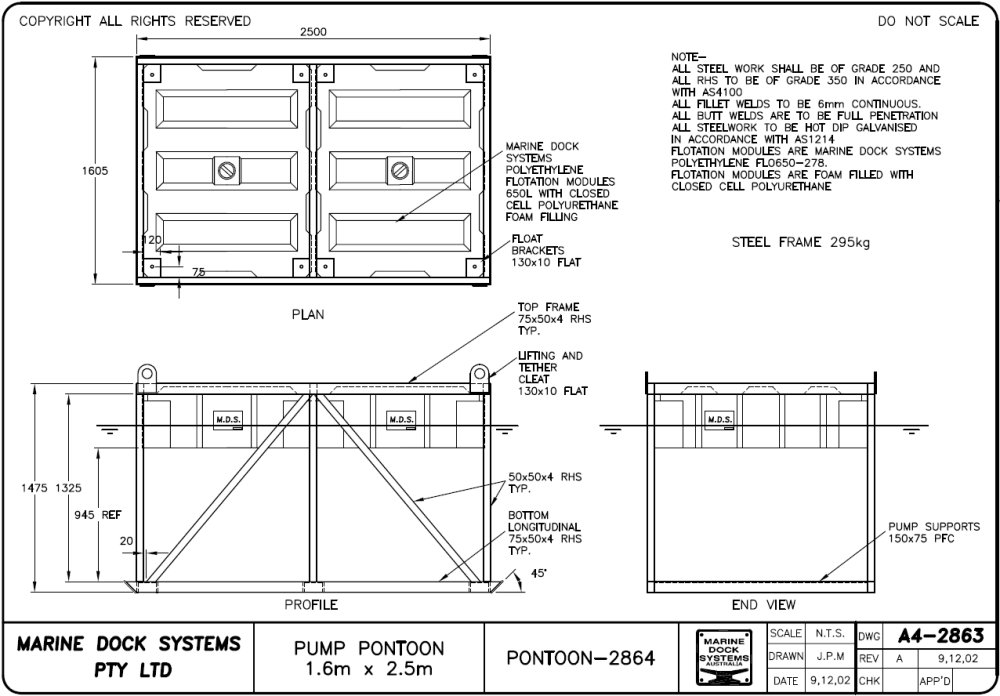

A4-2863 - Pump Pontoon (2 x 650 Litre Floats)

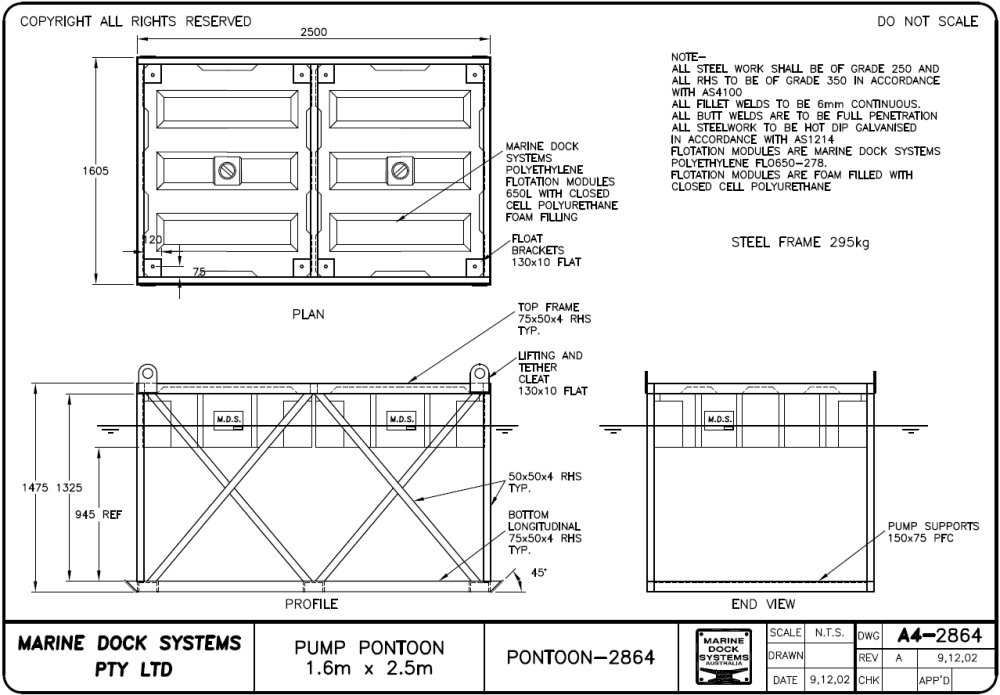

Submersible Pump pontoon - 2 x 650

A4-2864 Braced Pump Pontoon (2 x 650 Litre Floats)
Warning
THIS 'FLOATATION MODULE' HAS BEEN DESIGNED TO FORM PART OF AN INTERGRATED SYSTEM.

THE STRUCTURAL INTEGRITY, FLOTATION CAPABILITY, STABILITY AND OTHER PROPERTIES ARE A FUNTION OF APPLIED LOADINGS AND THE METHOD OF THE MODULE MOUNTING AND APPLICATION.

MARINE DOCK SYSTEMS PTY. LTD. CANNOT GUARANTEE THE PERFORMANCE OF THIS MODULE UNLESS THE COMPANY PROVIDES WRITTEN ENGINEERING CERTIFICATION FOR ITS INSTALLATION AND USE AT A SPECIFIC LOCATION.

FOR TECHNICAL INFORMATION CONSULT MARINE DOCK SYSTEMS PTY. LTD.
