BRACKETS
Marine Dock Systems manufactures a wide variety of pontoon dock brackets, fittings, and hinges designed to meet your specific needs. These components are engineered to provide both durability and functionality in various marine environments. The brackets and hinges are extruded from high-quality, structural-grade aluminium, which not only ensures excellent strength but also offers superior corrosion resistance, making them ideal for long-term use in harsh marine conditions. 		pontoons, marinas, jetties, docks, barges

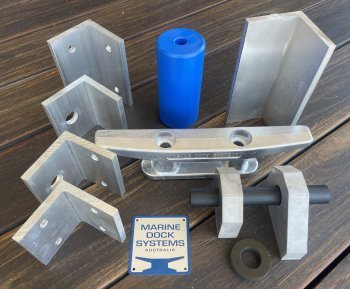

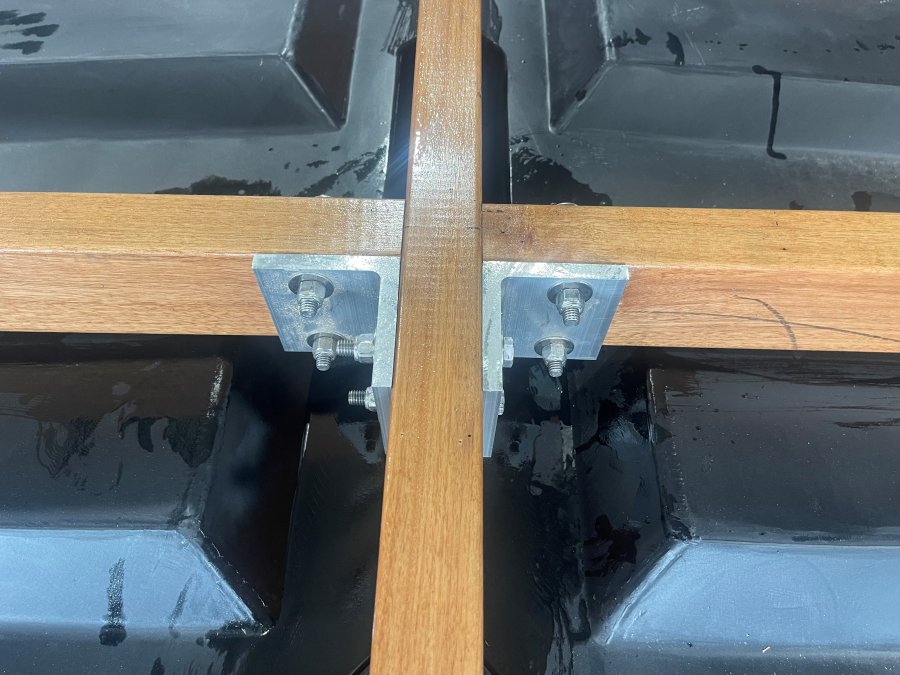

Long Frame Bracket
Part # BKT-FRAME-290
 Designed to bolt timber pontoon frames together.
Made from extruded aluminium
80 x 80 x 10mm Angle
140mm long
4 x 10mm diameter holes (13/32" dia)
Weight 550 grams
Suit 150mm timbers
More information Click Here!

A4-0290 - Pontoon Frame Bracket

Installation drawings
a4-0736 Frame Assembly detail
a4-0826 Ramp hinge support Assembly detail

Float Parts Price List

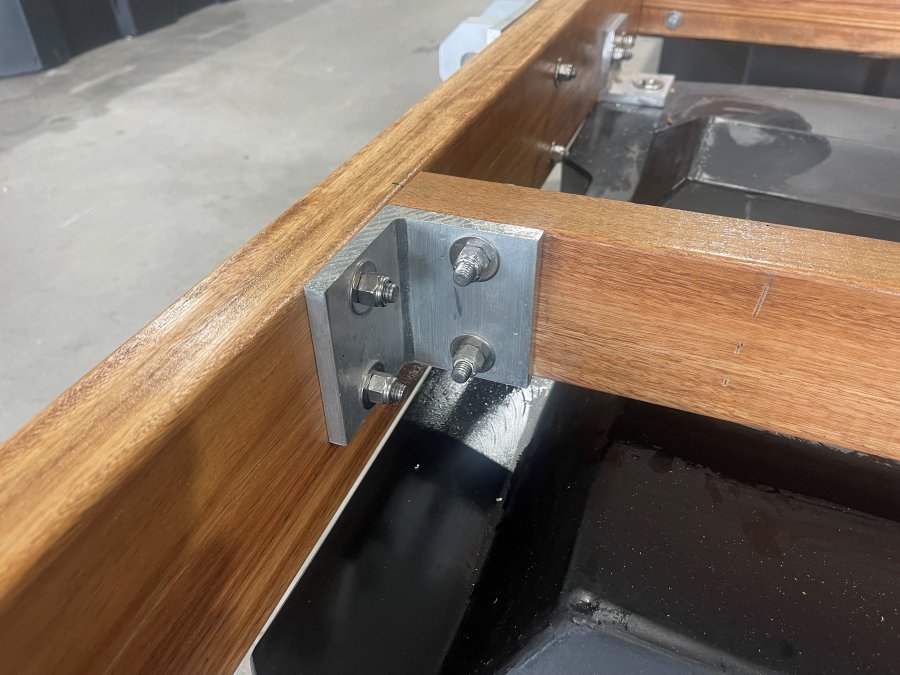

Short Frame Bracket
Part # BKT-FRAME-291
 Designed to bolt timber pontoon frames together.
Made from extruded aluminium
80 x 80 x 10mm Angle
90mm long
4 x 10mm diameter holes (13/32" dia)
Weight 350 grams
Suit 100mm timbers
More information Click Here!

A4-0291 - Pontoon Frame Bracket

Installation drawings
A4-2912 - 100mm Bracket detail suit timber frame

Float Parts Price List
Float Bracket
Part # BKT-FLOAT-289
 Designed to bolt floats to pontoon frames.
Made from extruded aluminium
80 x 80 x 10mm Angle
100mm long
Weight 400 grams
2 x 10mm diameter holes (13/32" dia)
1 x 22mm diameter hole (7/8" dia)
More information Click Here!

A4-0289 - Pontoon Float Bracket

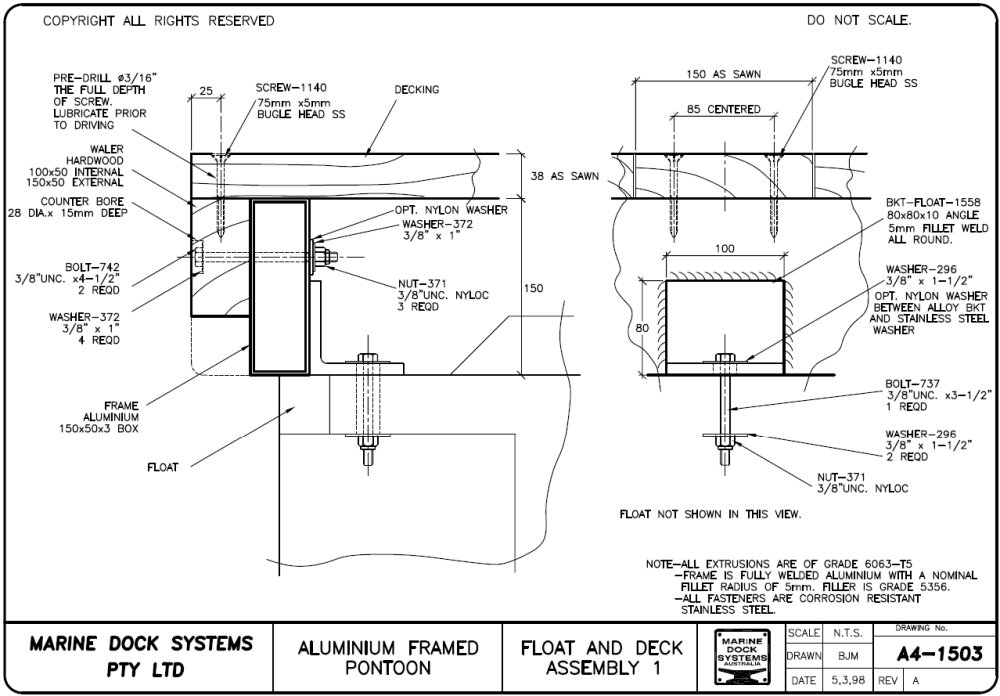

Assembly drawing # 0730


Float Parts Price List

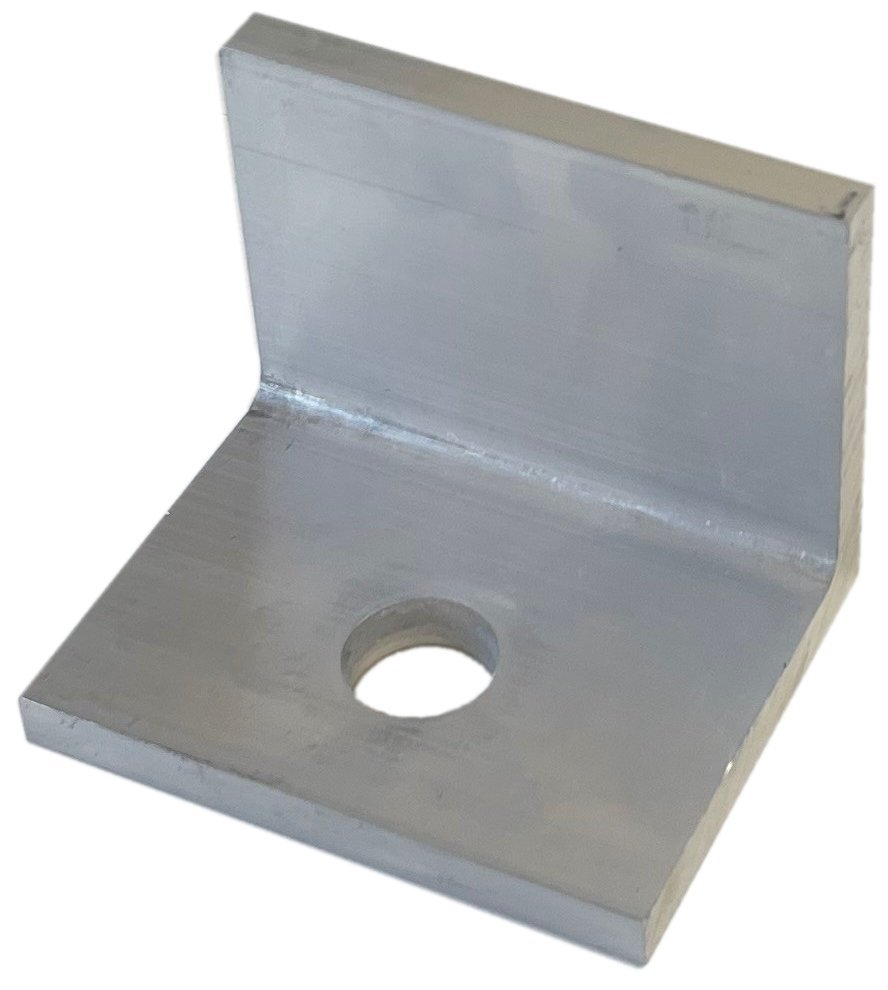

Float Bracket - Weld on
Part # BKT-FLOAT-1558
 Designed to bolt floats to aluminium pontoon frames.
Made from extruded aluminium
80 x 80 x 10mm Angle
100mm long
Weight 400 grams
1 x 22mm diameter hole (7/8" dia)

A4-1558 - Pontoon Float Bracket Weld On

Assembly drawing # 1503


Float Parts Price List

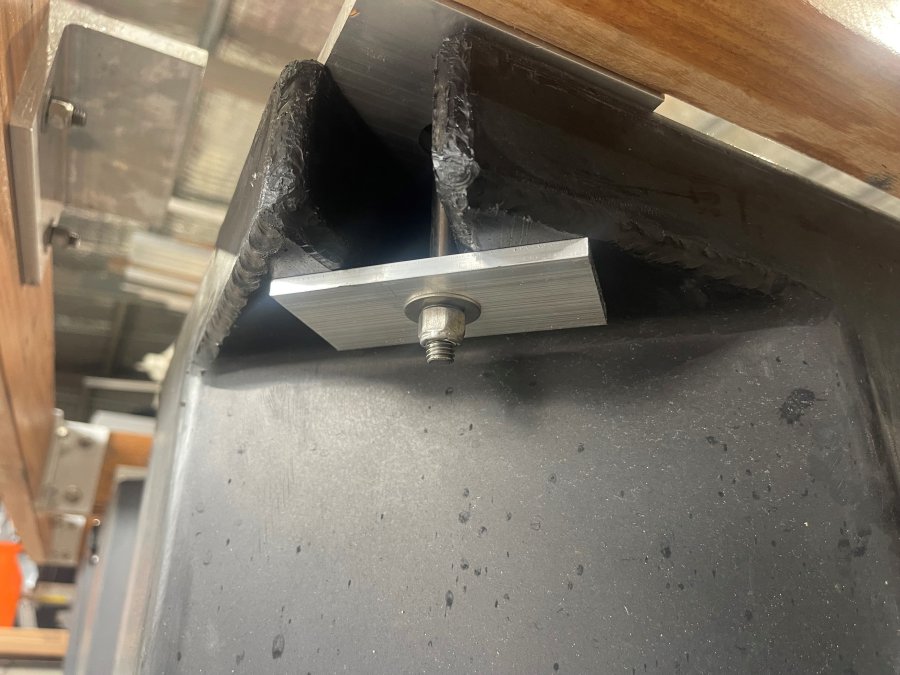

Float Washer
Part # BKT-WASHER-7163
 Designed to support floats / bolts to pontoon.
when bolted to pontoon frame
Made from extruded aluminium
90 x 50 x 6mm flat
90mm long
Weight 100 grams
1 x 10mm diameter hole (13/32" dia)

Assembly drawing # A4-0730


Float Parts Price List
floatwasher

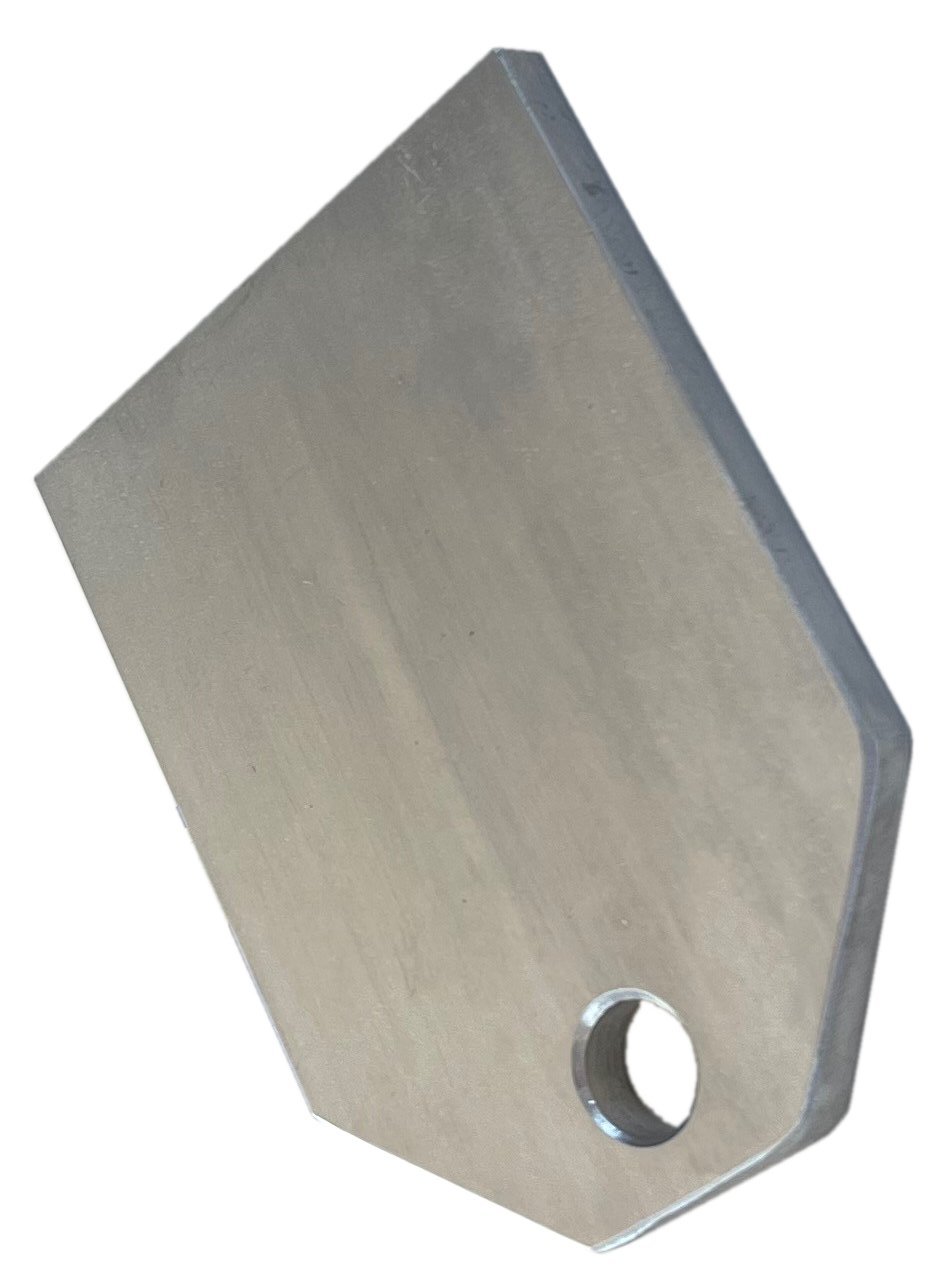

Ramp Roller Bracket
Part # BKT-ROLLER-3362
 Designed to fit rollers onto ramps.
Made from extruded aluminium
140 x 100 x 10mm Flat

Weight 300 grams

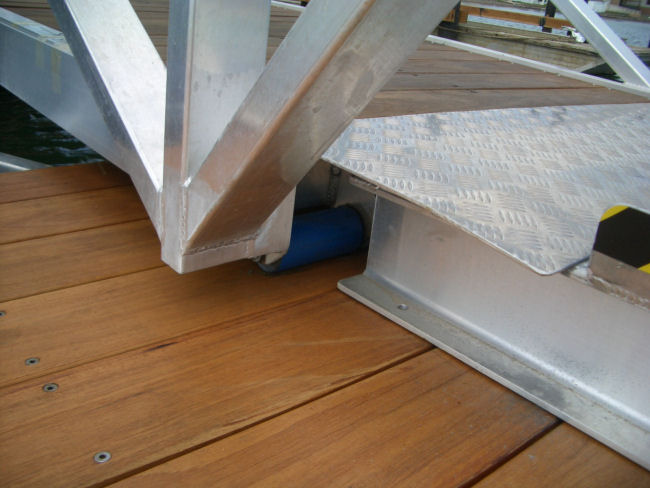

Wheel Detail pontoon end.

A4-1577 - Wheel Detail Trussed alloy timber ramp

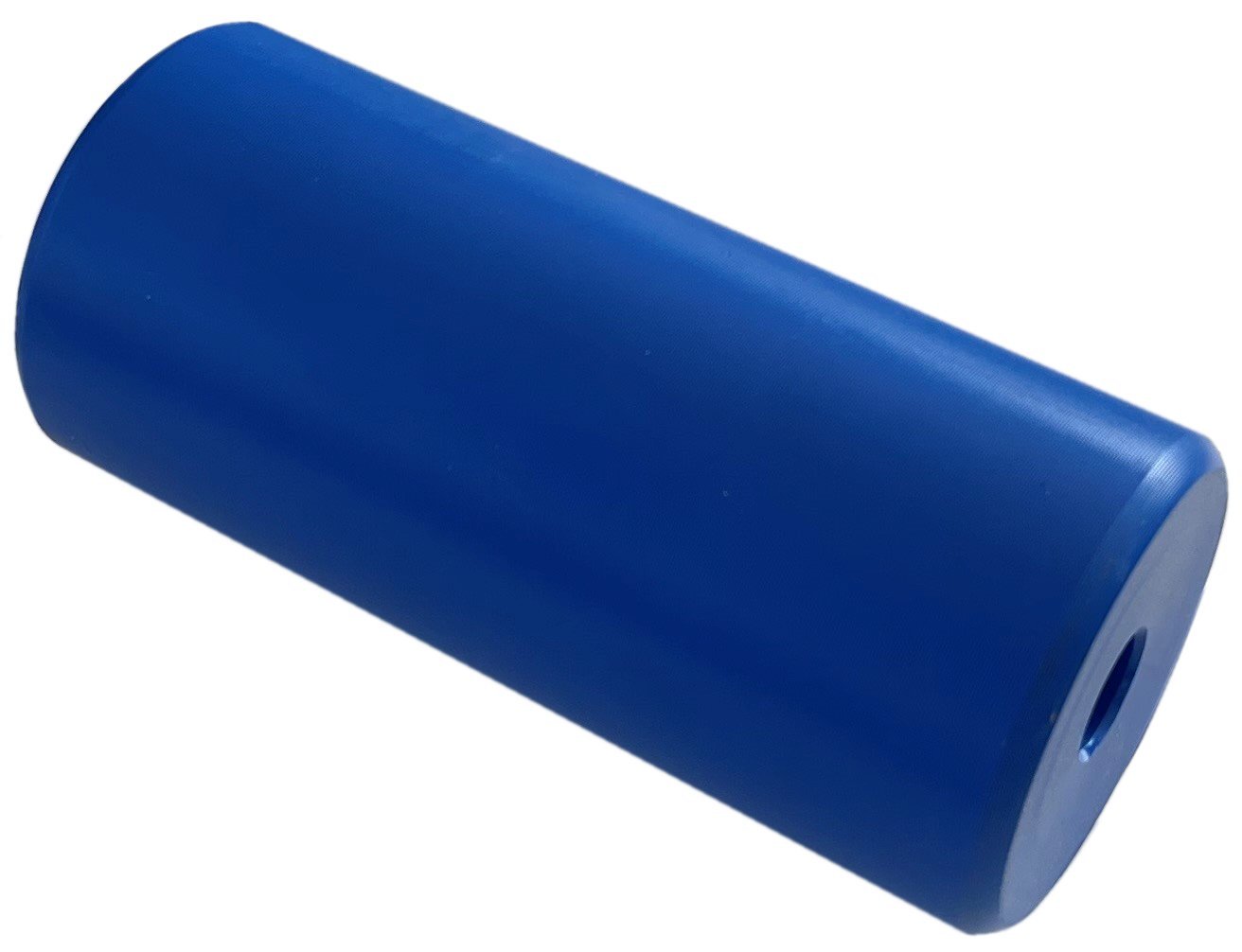

Nylon Roller
Part # ROLLER-2023
 Designed to fit pontoon end on ramps/gangways.
Made from blue nylon
150 x 70mm Diameter
Weight 550 grams
Suits 16mm Axle


Wheel Detail pontoon end.
A4-1577 - Wheel Detail Trussed alloy timber ramp

Float Parts Price List

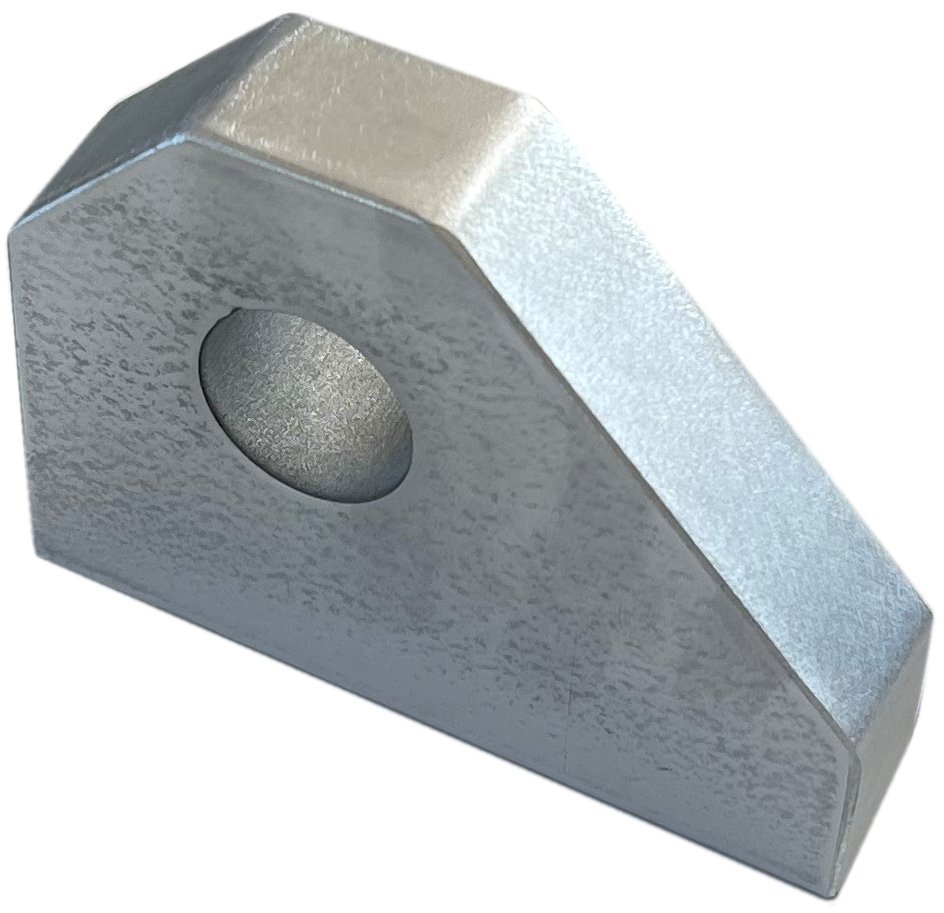

Hinge Lug Lomg
Part # HINGELUG-3318
 Designed to fit ramps/gangway hinges.
Made from extruded aluminium
110mm long
Weight 450 grams

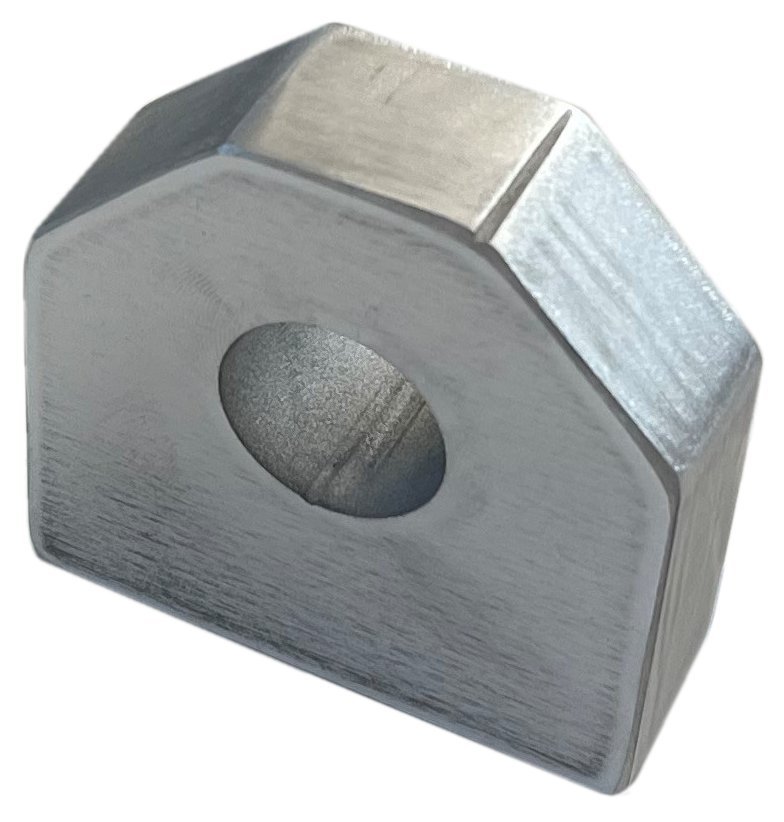

Hinge Lug Short
Part # HINGELUG-3317
 Designed to fit ramps/gangway hinges.
Made from extruded aluminium
80mm long
Weight 350 grams

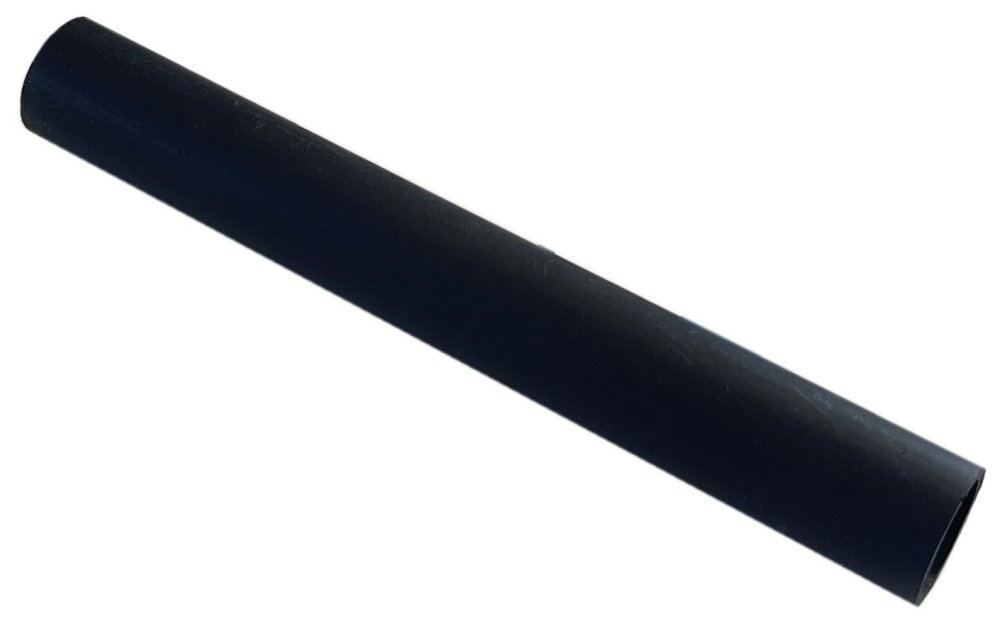

Hinge sleeve
Part # SLEEVE-3322
 Designed to fit ramps/gangway hinges.
Made Black HDPE
25mm OD x 20mm ID x 180mm long

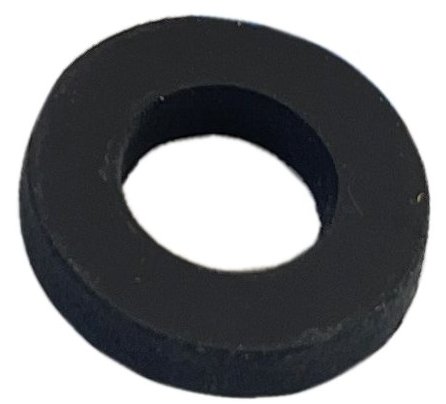

Hinge washer
Part # WASHER-3285
 Designed to fit ramps/gangway hinges.
Made Black Nylon
50mm OD x 27mm ID x 10mm thick

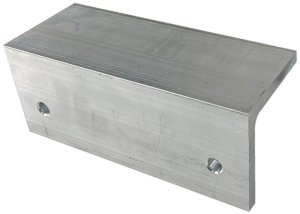

Cleat Bracket
Part # BKT-CLEAT-1513
 Designed to bolt
300mm cleat to pontoon frame.
Made from extruded aluminium
80 x 80 x 10mm Angle
Weight 550 grams
140mm long
More information Click Here!

Installation drawings

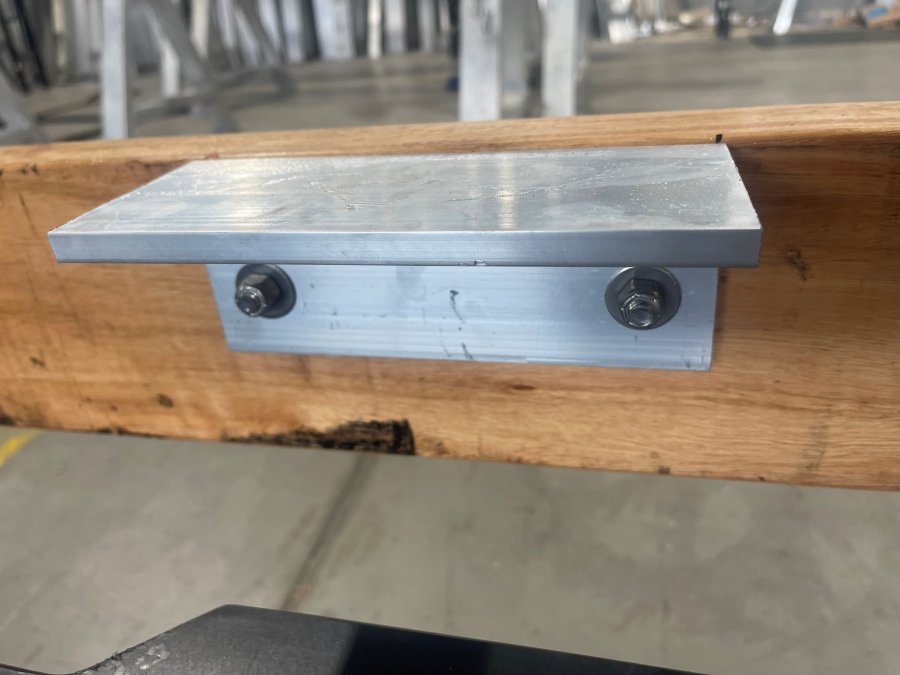

a4-1515 - 300mm Cleat installation tiber frame
a4-1908 - 300mm Cleat installation alloy frame

Float Parts Price List

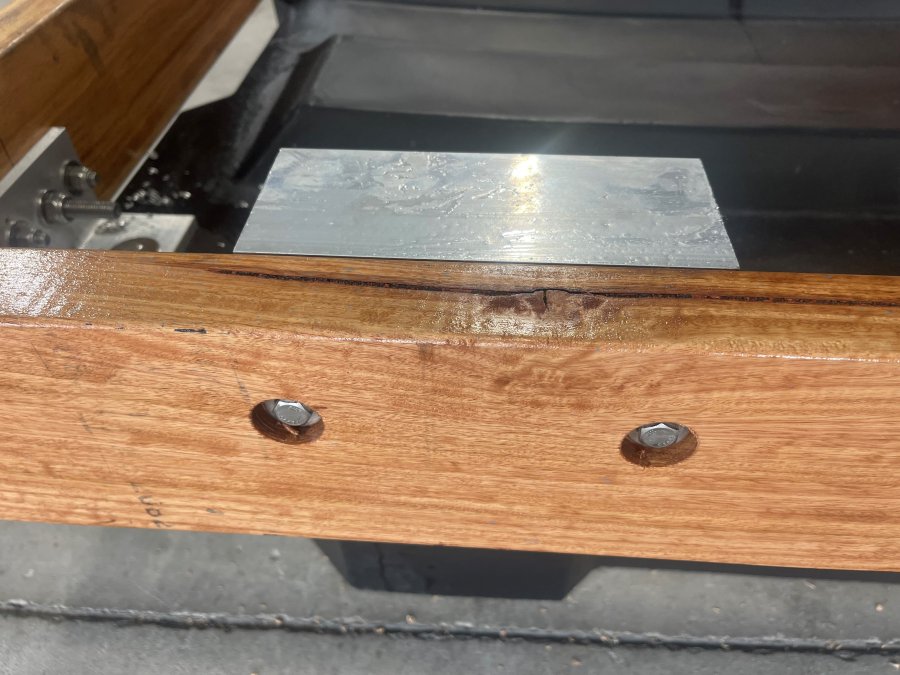

MOORING CLEAT
Secure your boat with this sturdy mooring cleat. Australian made from durable cast aluminium, this cleat is designed to withstand the harsh marine environment. Its sleek design and polished finish will add a touch of sophistication to your dock. This mooring cleat is easy to install and provides a reliable anchoring point for ropes and lines. Whether you're docking a large or small vessel, this cleat will keep your boat secure in all conditions.





a4-1515 - 300mm Cleat installation tiber frame
a4-1908 - 300mm Cleat installation alloy frame

To order please
Email Us Click Here!

Cleat Part No. A B C D E F - BOLT WEIGHT
CLEAT-1386 300mm 183mm 43mm 85mm 105mm 1/2" or 12mm 1.1kg

Bolts required
Carpet/plate Decking
Tap thread 1/2 inch x 3"1/2
Bolt 1/2 inch x 4"

22mm Mesh Decking
Tap thread 1/2 inch x 4"
Bolt 1/2 inch x 4"1/2

Timber decking
Tap thread 1/2 inch x 4"1/2
Bolt 1/2 inch x 5"
Installation Timber Frame

a4-1515 - 300mm Cleat installation tiber frame		 Installation Aluminum Frame

a4-1908 - 300mm Cleat installation alloy frame
