Float Bracket
Part # BKT-FLOAT-289

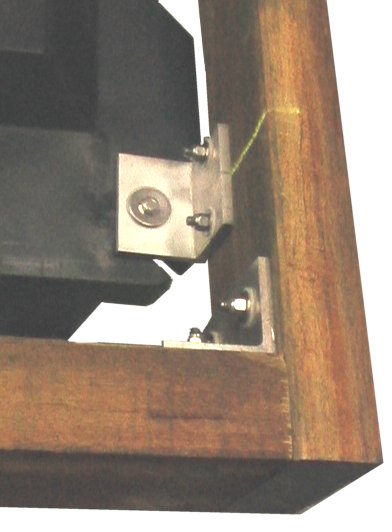

 Float brackets are used to connect the
flotation modules (floats) to the pontoon frame.
They are extruded from a structural grade aluminium,
which exhibits excellent corrosion resistance.
80 x 80 x 10mm Angle
100mm long
2 x 10mm diameter holes (13/32" dia)
1 x 22mm diameter hole (7/8" dia)

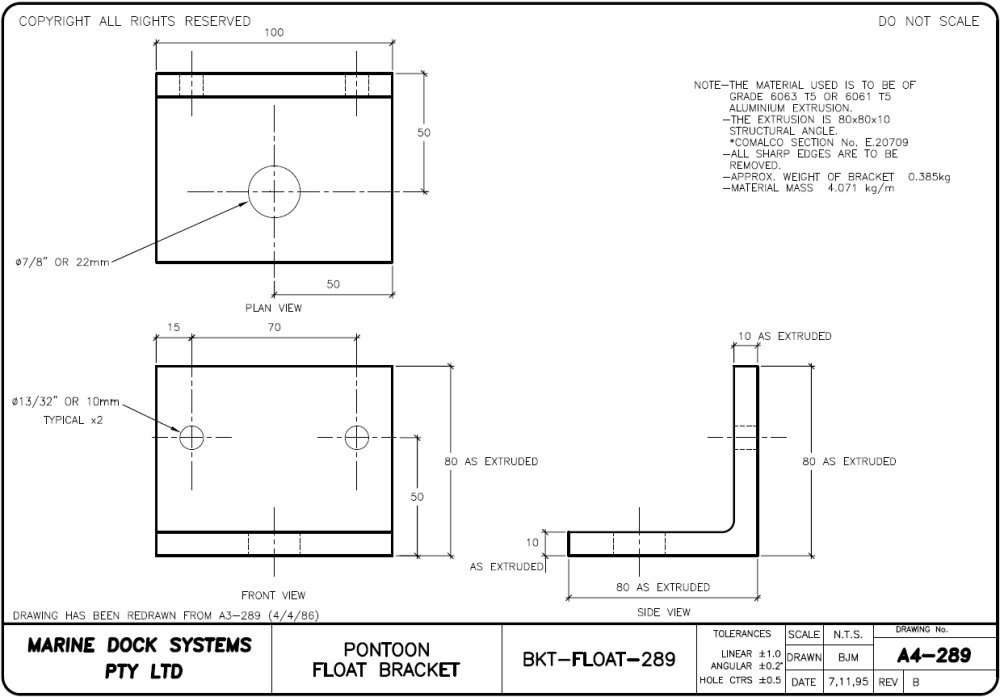

A4-0289 - Pontoon Float Bracket

Installation drawings
A4-0730 - Float and Deck Assembly detail

Float Parts Price List


Pontoon Float Bracket

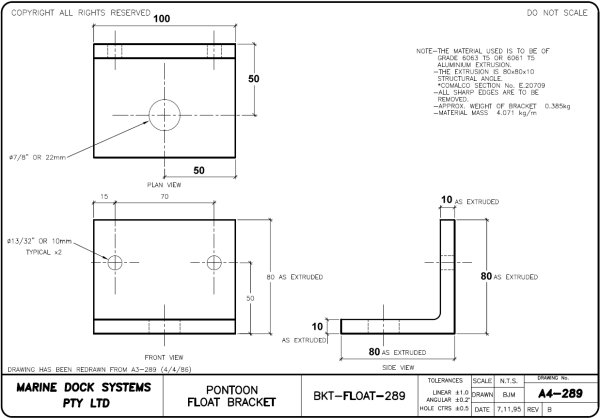

A4-0289 - Pontoon Float Bracket		 Float and Deck Assembly Timber

A4-0730 - Float and Deck Assembly detail
