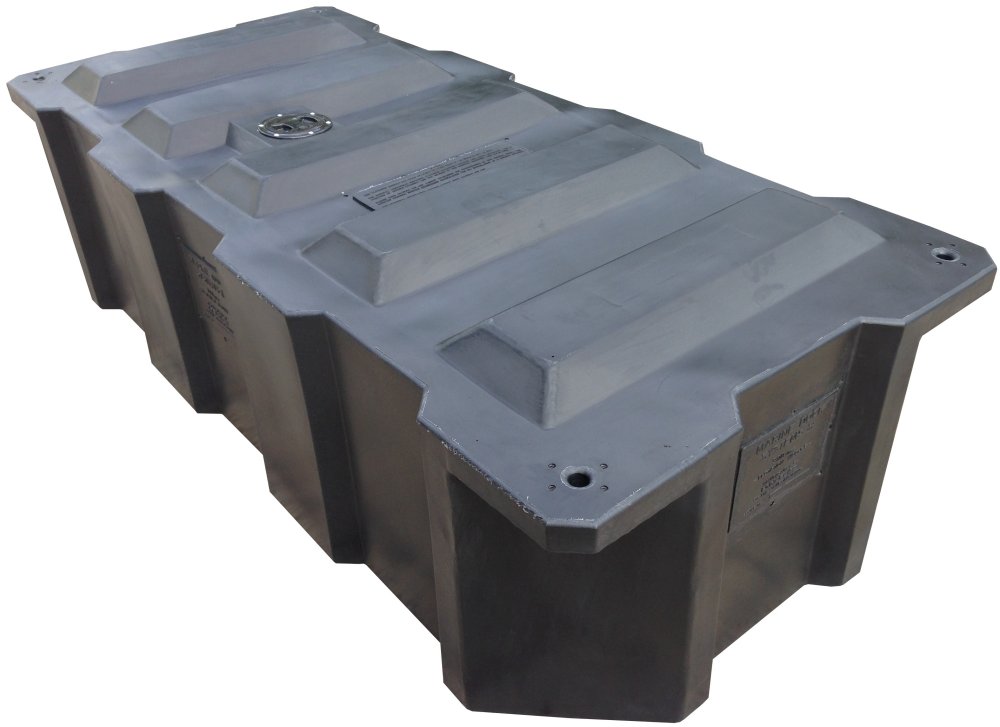

900 LITRE FLOTATION MODULE

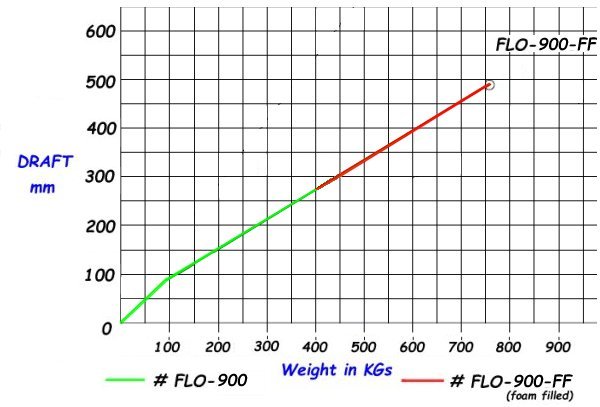

This is a multi purpose float which is a narrower version of the 1200 litre unit. It was primarily designed as a finger float for large marinas, however, it can also be used under residential docks that require high freeboard. Floats can be filled with water or concrete to add ballast to increase stability. Ballast can also be used to raise and lower the float for different freeboard requirements. Floats can also be foam filled for extra security if required. Max load 400kg, 650kg when foam filled


Large Detailed Drawings

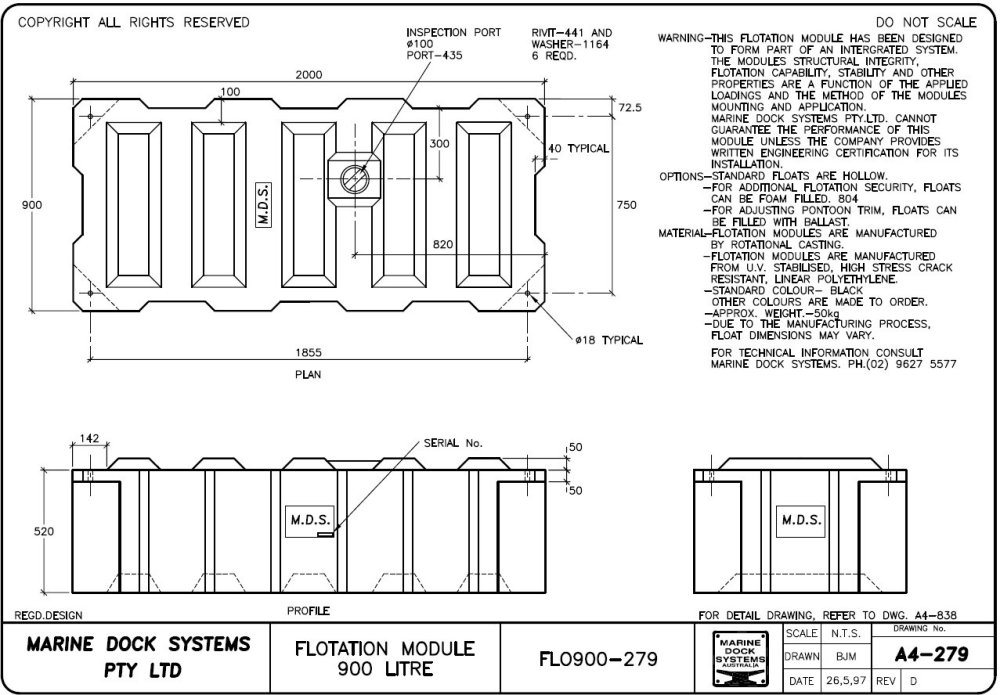

a4-0279 - 900 Litre float

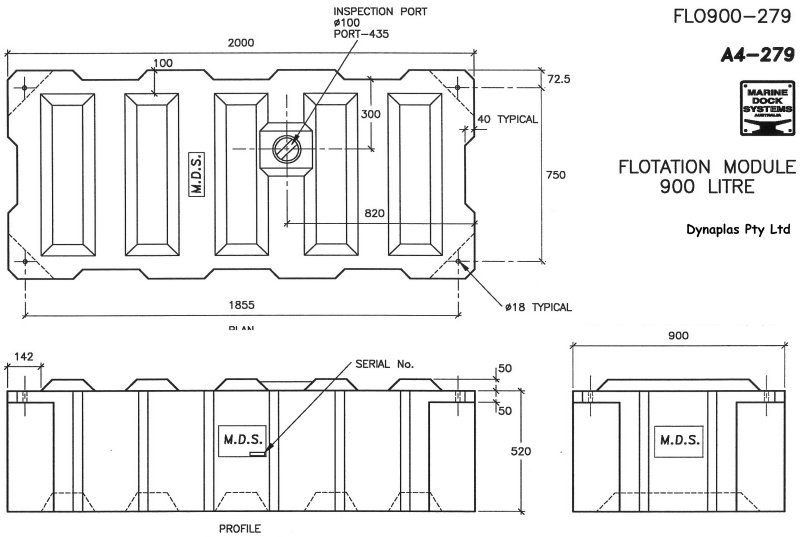

a4-0279 - 900 Litre float
a4-1852 9.6mtr x 1.3 mtr marina finger - Alloy frame









Pontoon 4.2 x 2.6 mtr Alloy Frame

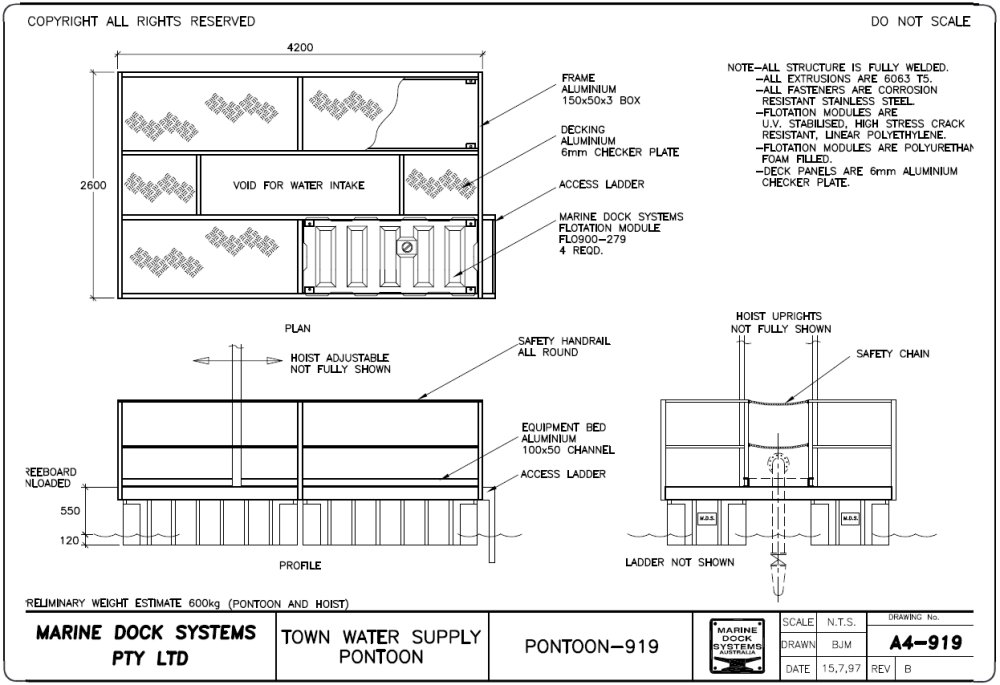

A4-0919 4.2 mtr x 2.6 - Water supply pontoon		 900 Litre float
Industrial Mixer Pontoon

A4-3203 - Mixer Pontoon		 Industrial Work platform
Work platform

A4-2881 - Work platfor		 Residential dock

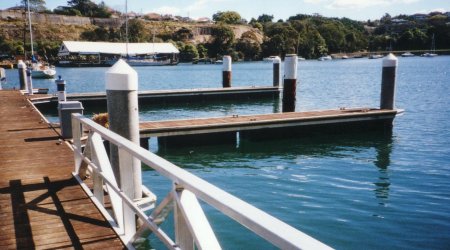

Marina Finger Pontoon 9.1 x 1 mtr

A4-2710 - Marina Finger Pontoon 9.1 mtrs long x 1 mtr wide		 Marina Finger 7.8 x 1 mtr

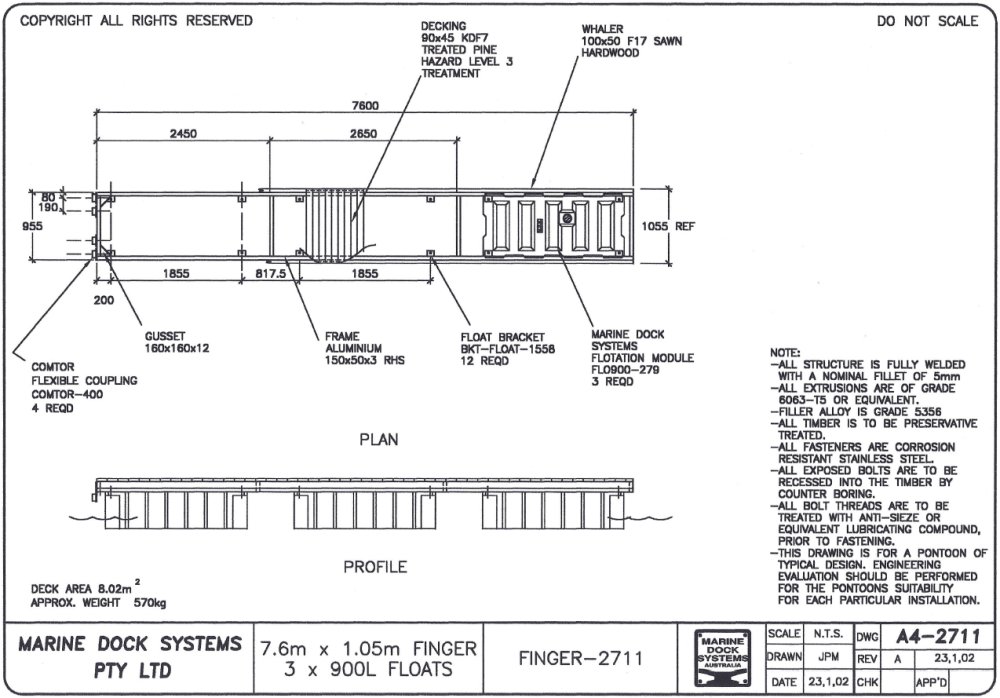

a4-2711 - Marina Finger Pontoon 7.8 mtrs long x 1 mtr wide
Bicentennial Park

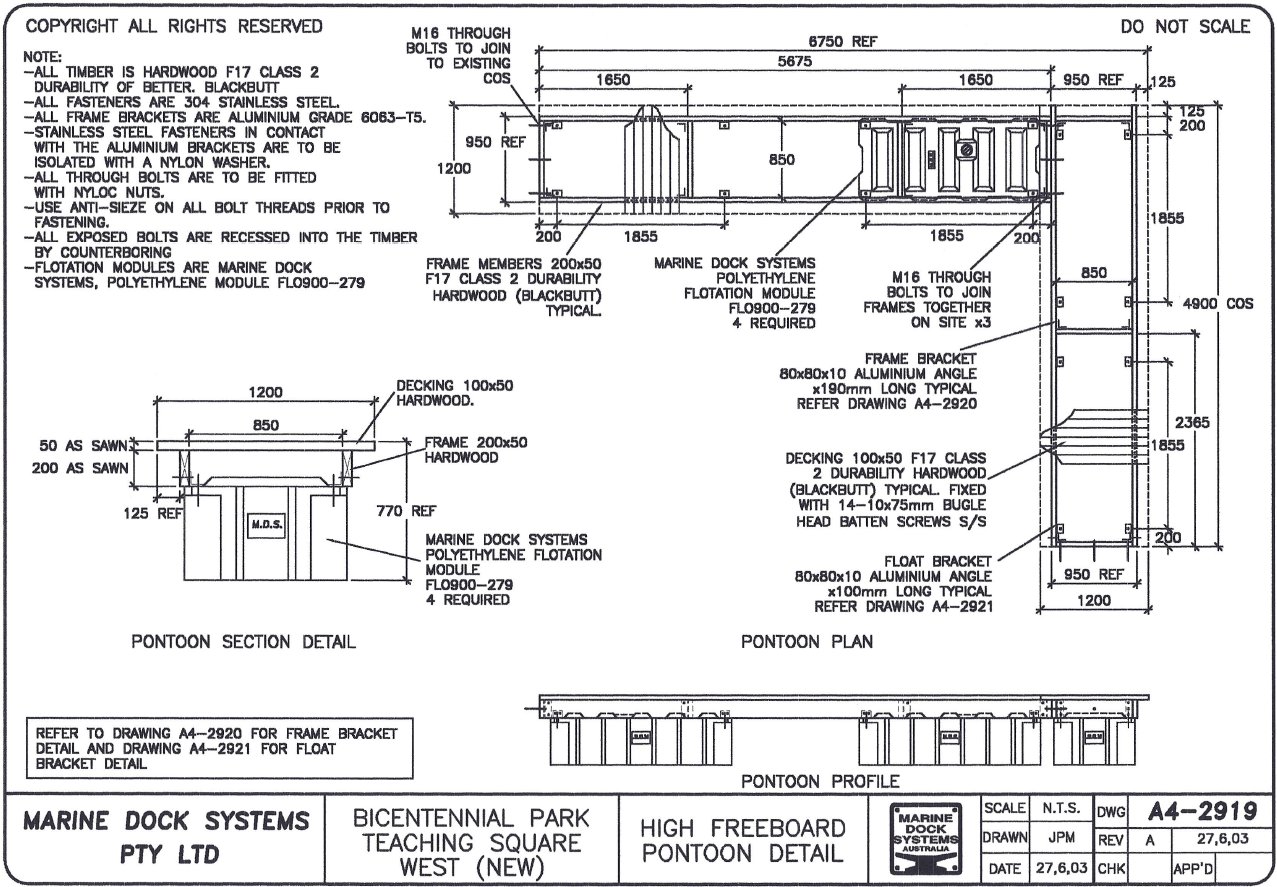

a4-2919 - Bicentennial Park Teaching Square		 Finger 7 x 1 mtr frame drawing

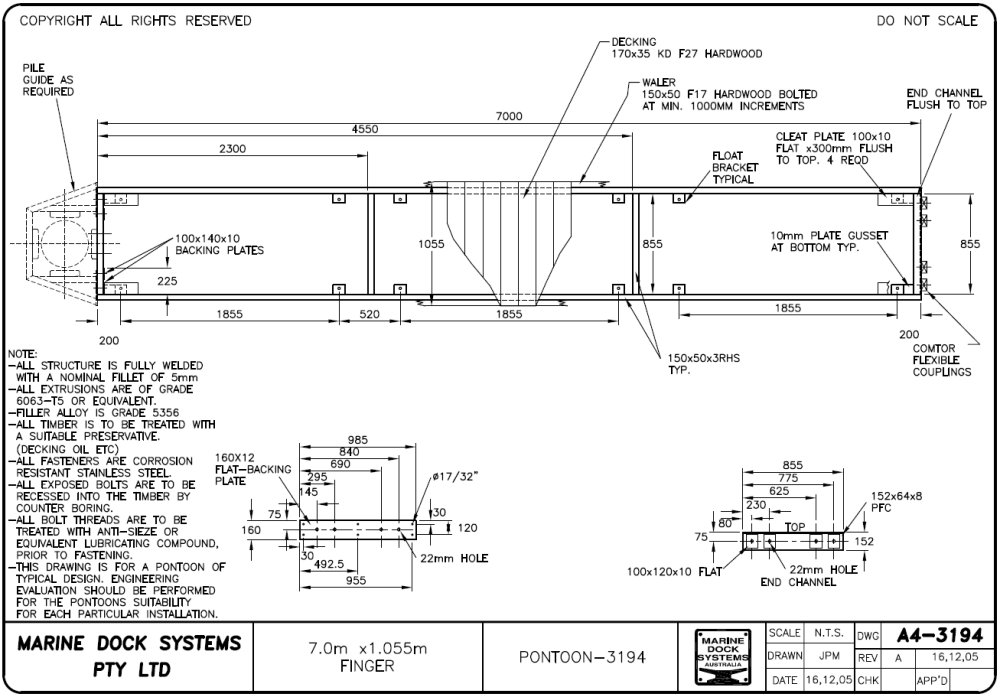

A4-3194 - 7M x 1M Aluminium Finger Frame

Warning
THIS 'FLOATATION MODULE' HAS BEEN DESIGNED TO FORM PART OF AN INTERGRATED SYSTEM.

THE STRUCTURAL INTEGRITY, FLOTATION CAPABILITY, STABILITY AND OTHER PROPERTIES ARE A FUNTION OF APPLIED LOADINGS AND THE METHOD OF THE MODULE MOUNTING AND APPLICATION.

MARINE DOCK SYSTEMS PTY. LTD. CANNOT GUARANTEE THE PERFORMANCE OF THIS MODULE UNLESS THE COMPANY PROVIDES WRITTEN ENGINEERING CERTIFICATION FOR ITS INSTALLATION AND USE AT A SPECIFIC LOCATION.

FOR TECHNICAL INFORMATION CONSULT MARINE DOCK SYSTEMS PTY. LTD.
