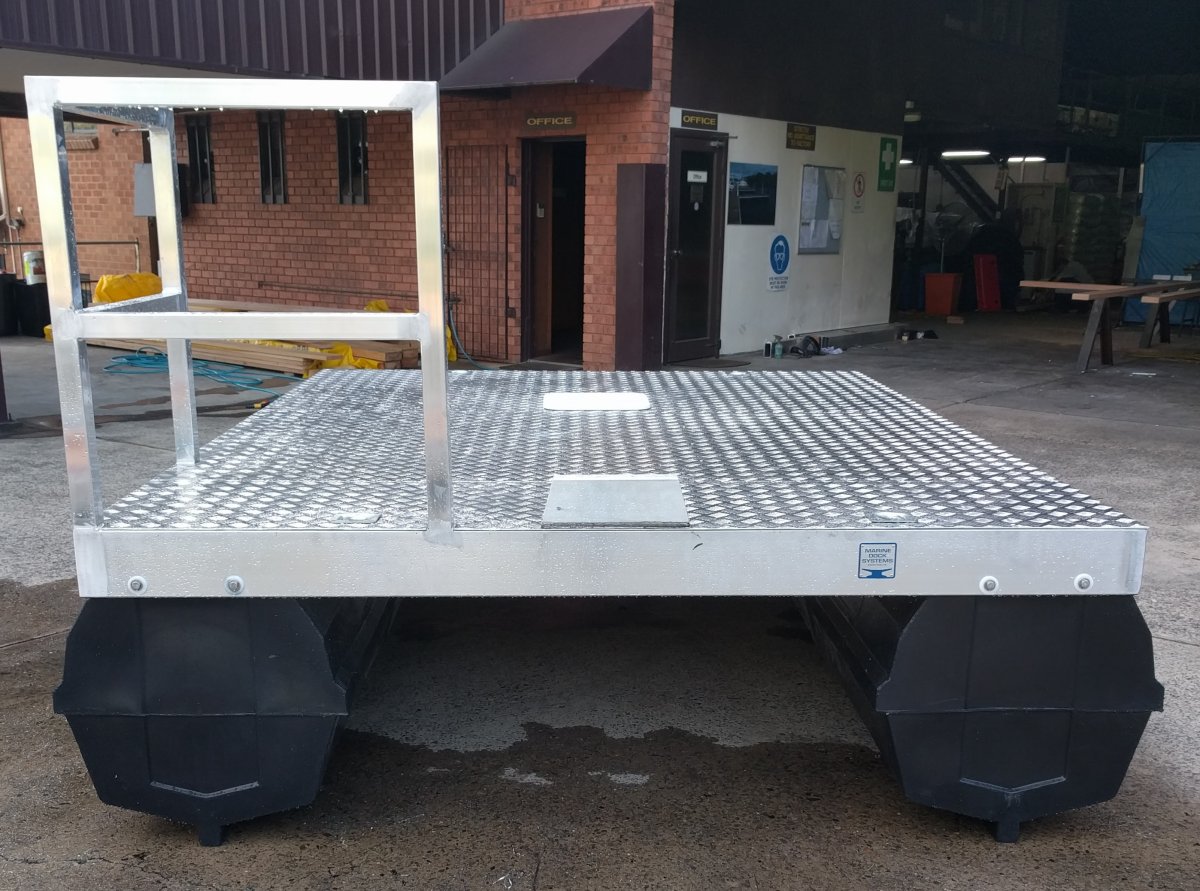

3.4 Metre Pontoon Boat (11 foot)

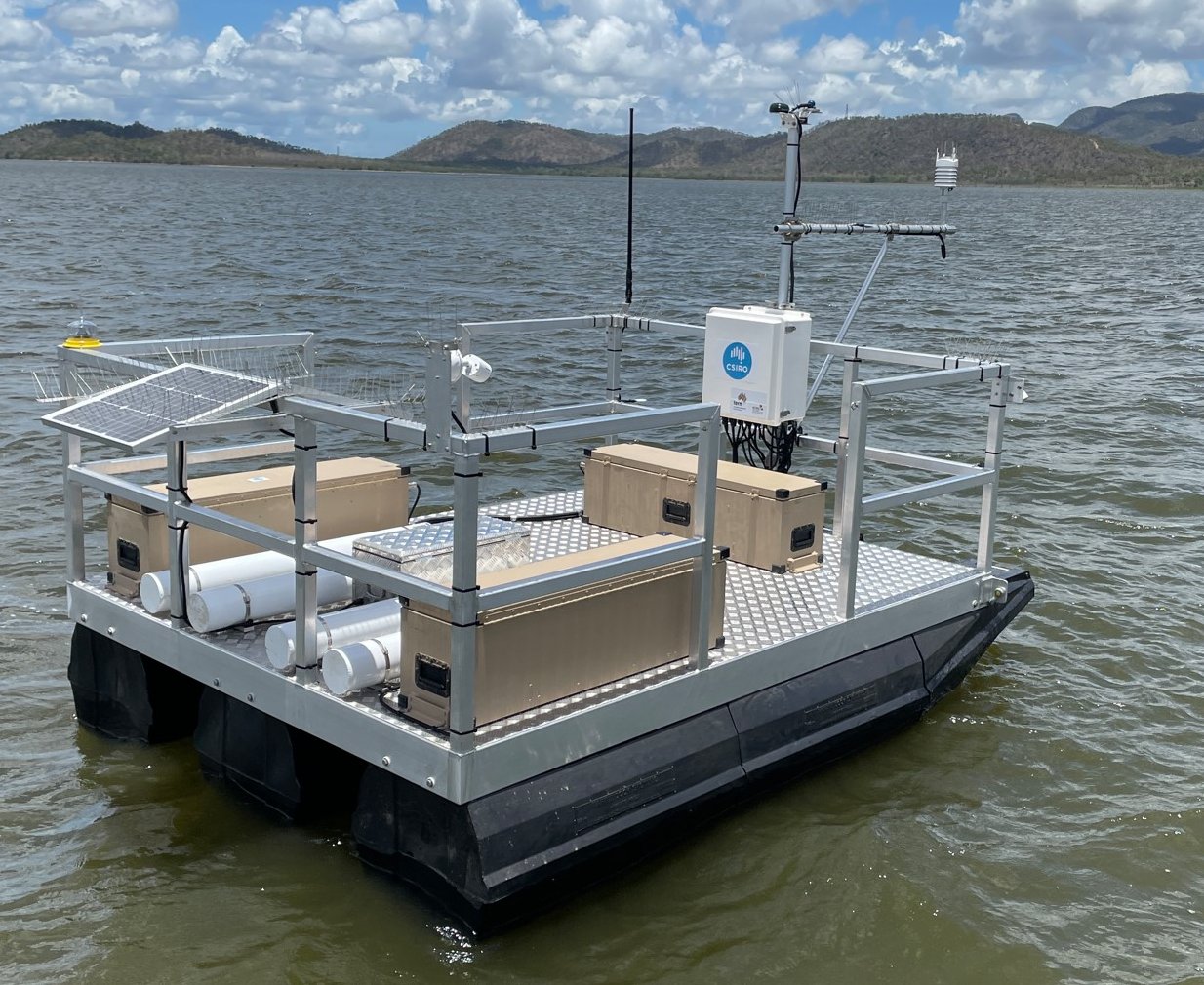

The smallest pontoon boat in our range. Marine Dock Systems has manufactured a few of these, they have been used for different applications. Including water testing platforms, bridge maintainance, personal fishing boat. This model uses our 333 Litre floats and nose cones. The 333 Litre floats will support 150kgs each. Pontoon modules are moulded in one piece from tough, high stress crack-resistant, thermoplastic polyethylene resin. In built mounting lugs allow direct connection of the modules to the frame work system. Floats are food grade and can be used for drinking water or waste storage. Extra available include motor bracket carpet, mooring cleats, steering wheel console. individual floats are also available and can be purchased separately

Float PDF Price List


3.4 Pontoon Boat - Custom Picture
3.4 Pontoon Boat - Custom Picture
3.4 Pontoon Boat - Custom Picture
3.4 Pontoon Boat - Custom Picture

YouTube Channel

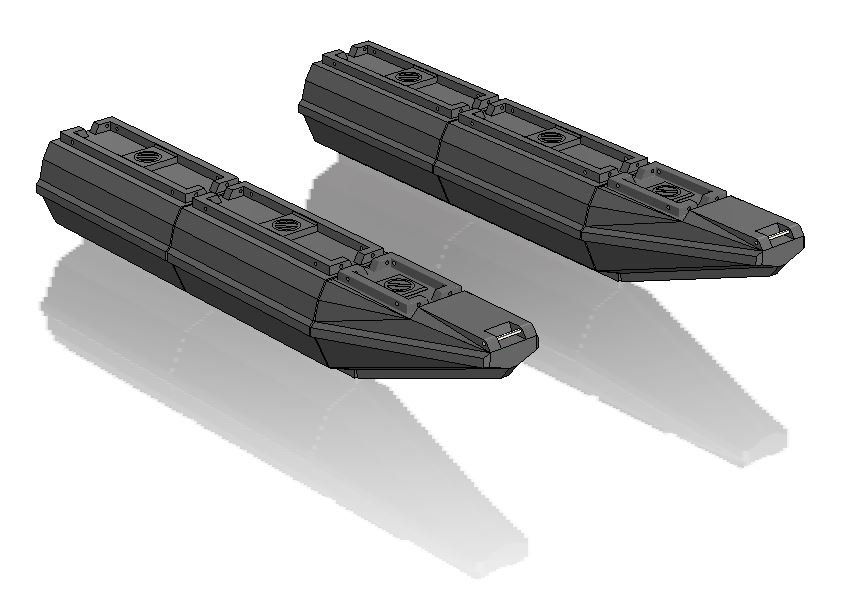

Option 1

Pontoon hulls
Floats and fasteners

3.4 Mrs Long (11 feet)
Includes
4 x 333 Litre floats
2 x Nose cones.
4 x M10 x 120mm 304 stainless steel bolts
8 x M10 x 170mm 304 stainless steel bolts
16 x M10 304 stainless steel nyloc nut
32 x 3/8" X 1-1/2" 304 stainless steel washer
Twin Hull
Approximate
Total weight 134kg
Max Load 600kg

Tri Hull
Approximate
Total weight 201kg
Max Load 900kg

Float PDF Price List
Drawings
333 Litre Float
Nose Cone

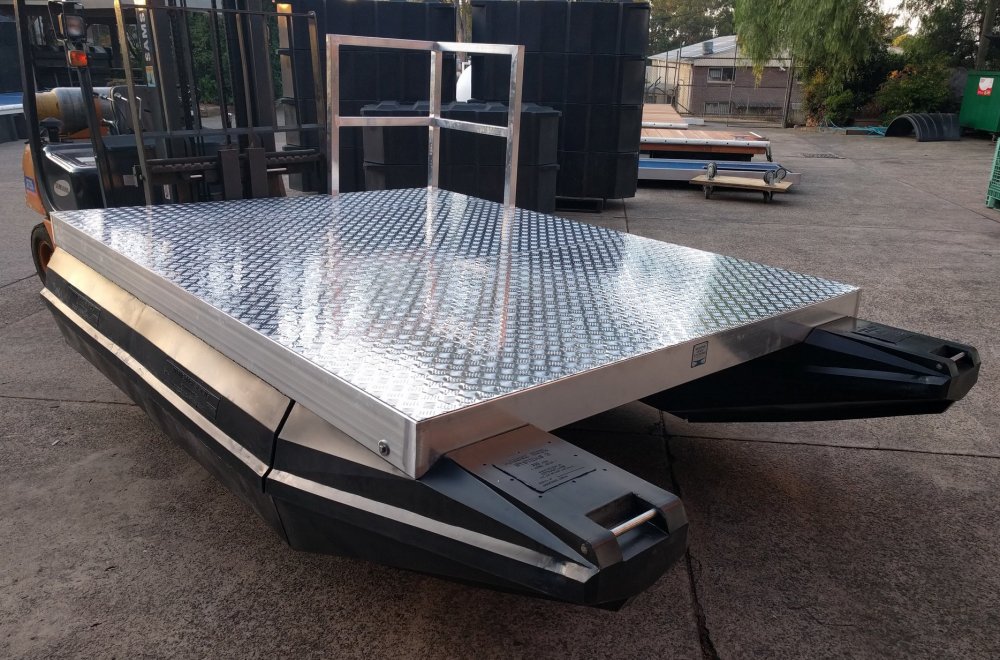

Option 2

Pontoon Boat
Frame and floats

3.4 Mrs Long (11 feet)
2.5mtr wide (8 Feet)
Includes
4 x 333 Litre floats
2 x Nose cones.
Fully welded aluminium frame
Stainless steel fastners
Twin Hull
Approximate
Total weight 214kg
Max Load 520kg

Tri Hull
Approximate
Total weight 281kg
Max Load 820kg

Float PDF Price List
Drawings
3D Drawing #7093
333 Litre Float #A4-184
Nose Cone #A4-306

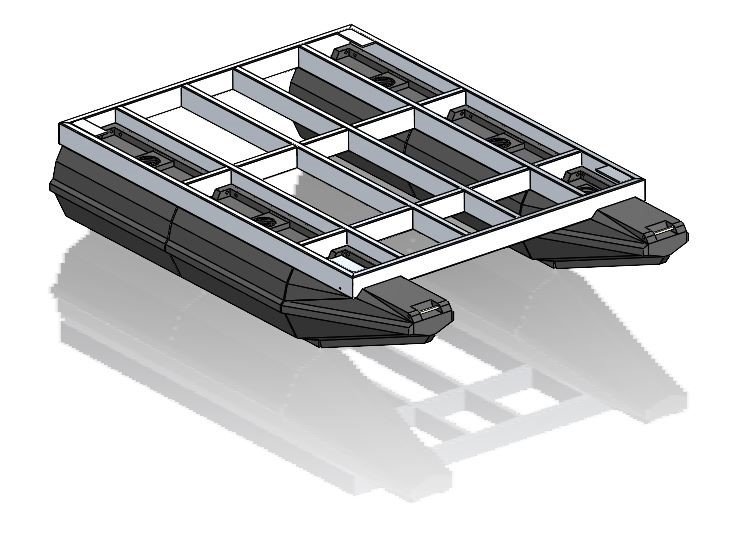

3D Frame #7092
Aluminium frame #7082

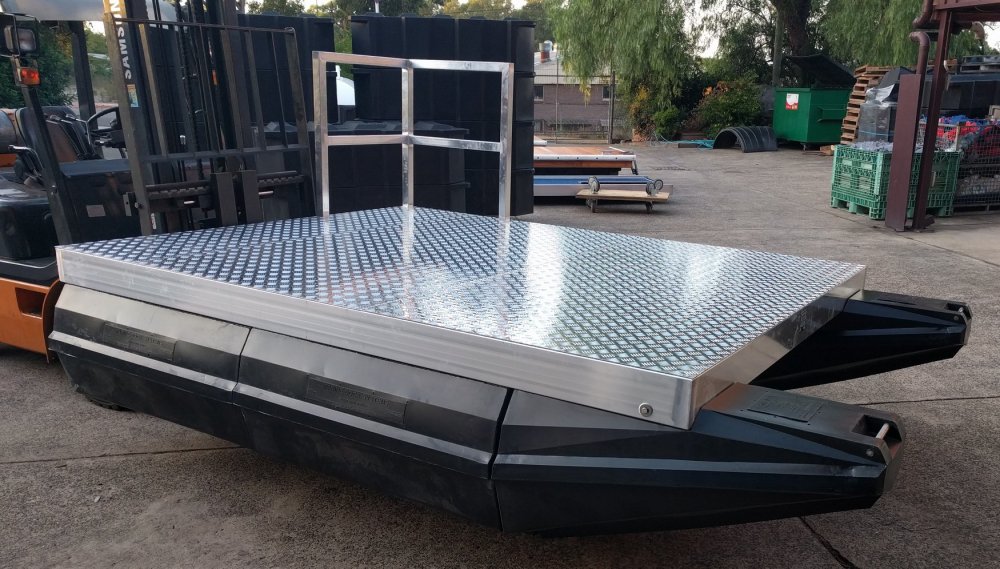

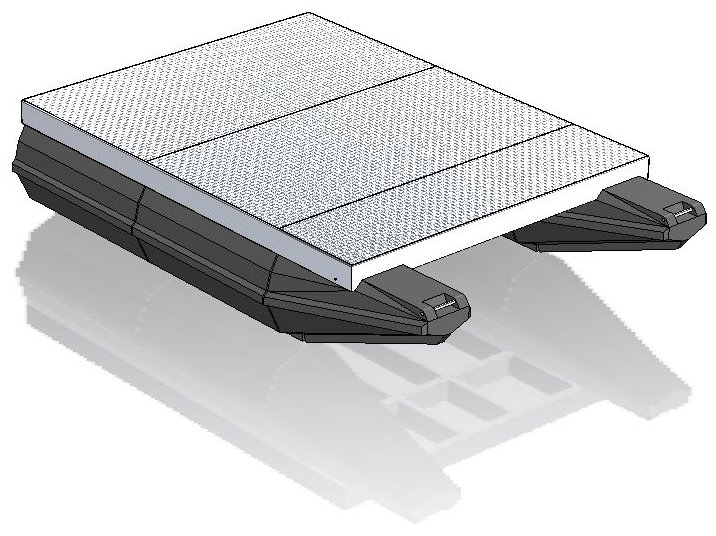

Option 3

Pontoon Boat
Frame, floats and decking

3.4 Mrs Long (11 feet)
2.5mtr wide (8 Feet)
Includes
4 x 333 Litre floats
2 x Nose cones.
Fully welded aluminium frame
Stainless steel fastners
3mm thick checker plate decking
Twin Hull
Approximate
Total weight 281kg
Max Load 453kg

Tri Hull
Approximate
Total weight 348kg
Max Load 753kg

Float PDF Price List
Drawings
3D Drawing #7094
333 Litre Float #A4-184
Nose Cone #A4-306
3D Frame #7092
Aluminium frame #7082

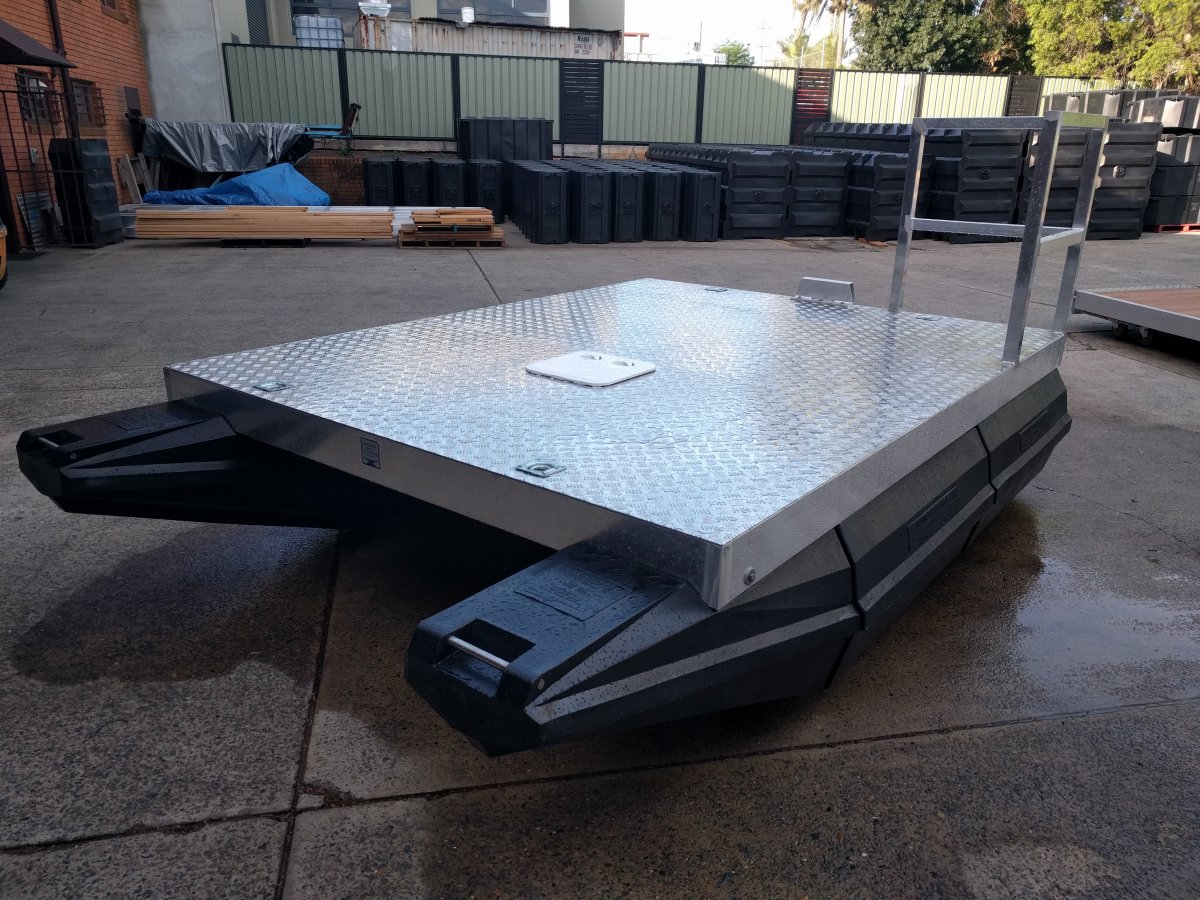

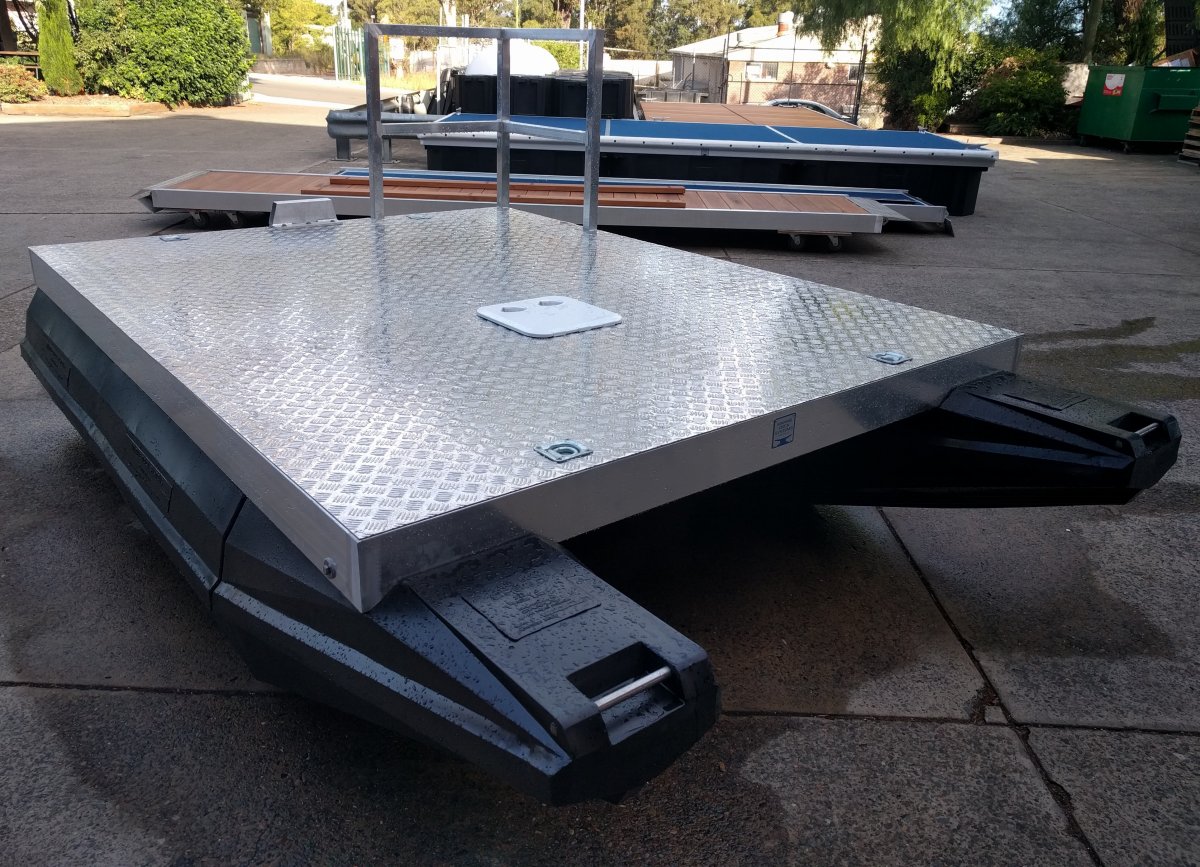

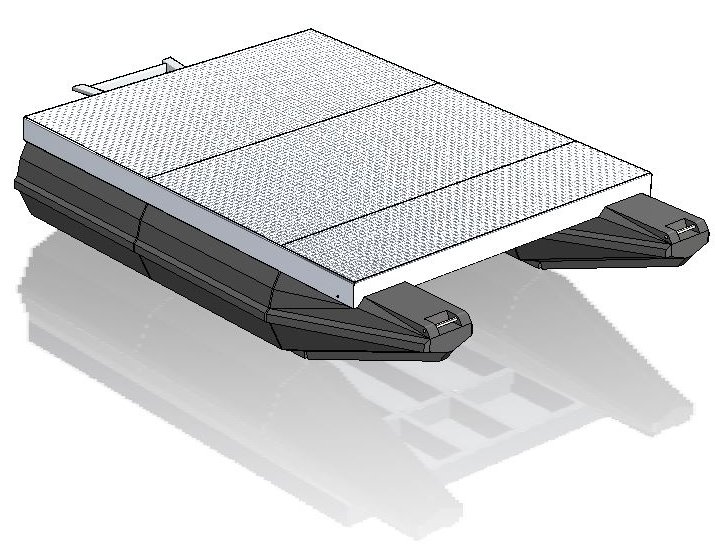

Option 4

Pontoon Boat
Frame, floats, decking
and motor bracket

3.4 Mrs Long (11 feet)
2.5mtr wide (8 Feet)
Includes
4 x 333 Litre floats
2 x Nose cones.
Fully welded aluminium frame
Stainless steel fastners
3mm thick checker plate decking
Motor bracket
Twin Hull
Approximate
Total weight 299kg
Max Load 435kg

Tri Hull
Approximate
Total weight 366kg
Max Load 735kg

Float PDF Price List
Drawings
3D Drawing #7095
333 Litre Float #A4-184
Nose Cone #A4-306
3D Frame #7092
Aluminium frame #7082
Motor bracket #7084
M/bracket fitting #7097

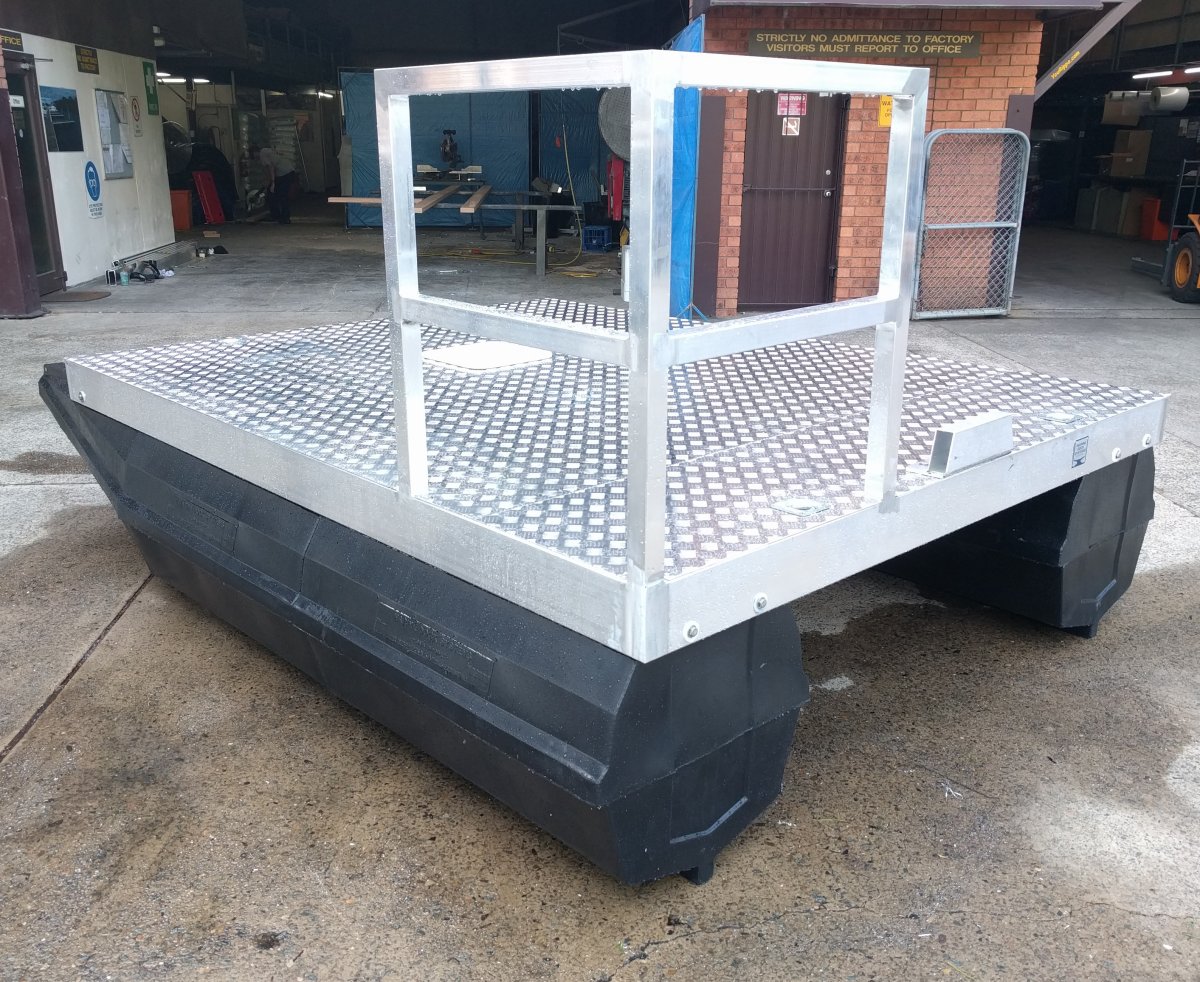

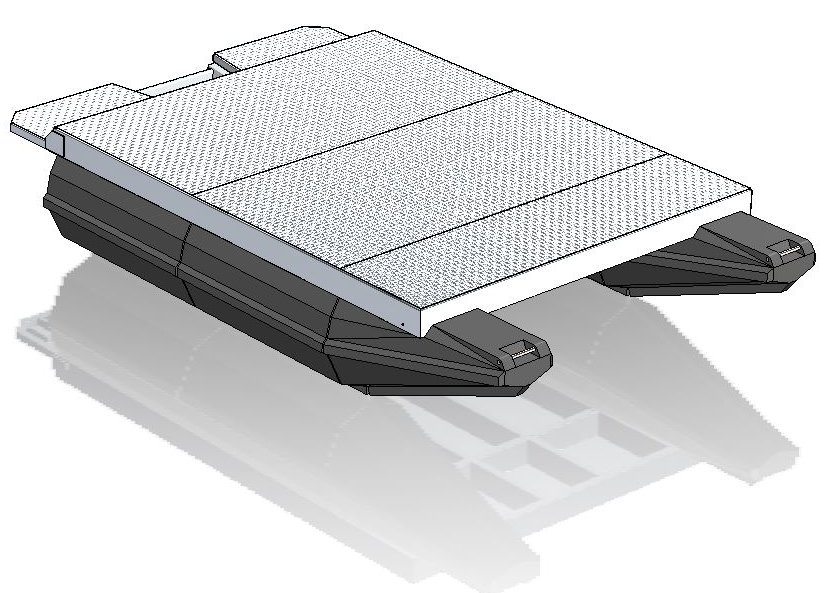

Option 5

Pontoon Boat
Frame, floats, decking,
motor bracket
and rear steps

3.4 Mrs Long (11 feet)
2.5mtr wide (8 Feet)
Includes
4 x 333 Litre floats
2 x Nose cones.
Fully welded aluminium frame
Stainless steel fastners
3mm thick checker plate decking
Motor bracket
Rear steps
Twin Hull
Approximate
Total weight 314kg
Max Load 420kg

Tri Hull
Approximate
Total weight 381kg
Max Load 720kg

Float PDF Price List
Drawings
3D Drawing #7096
333 Litre Float #A4-184
Nose Cone #A4-306
3D Frame #7092
Aluminium frame #7082
Motor bracket #7084
M/bracket fitting #7097
Rear steps #7083

Optional extra's

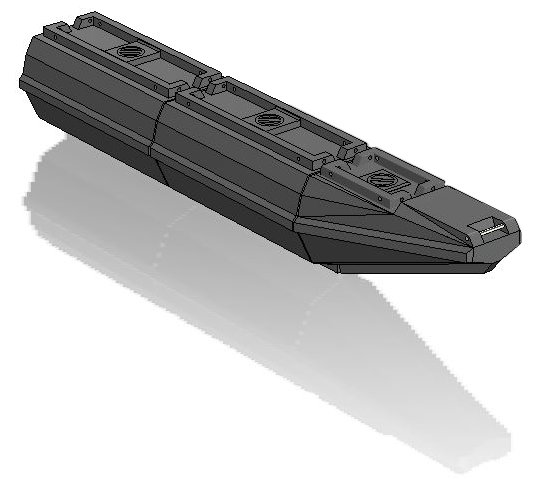

Centre row of floats (adds 300kg payload)
2 x 333 Litre Floats
1 x Nose Cone
4 x M10 x 120mm Stainless Steel Bolts
4 x M10 x 170mm Stainless Steel Bolts
8 x M10 Nyloc nuts stainless steel
16 x 3/8 x 1"1/2 304 stainless steel washers
Centre pontoon

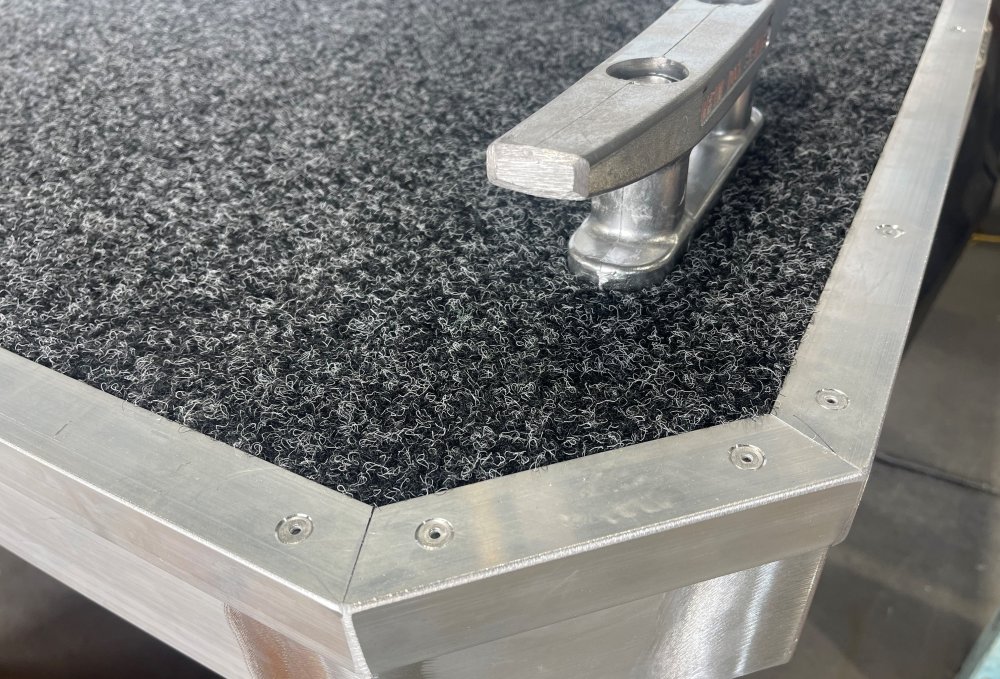

Grey Marine carpet
UV Stabilsed polypropylene
32 x 32mm alloy angle
Countersunk alloy rivets
Marine Carpet

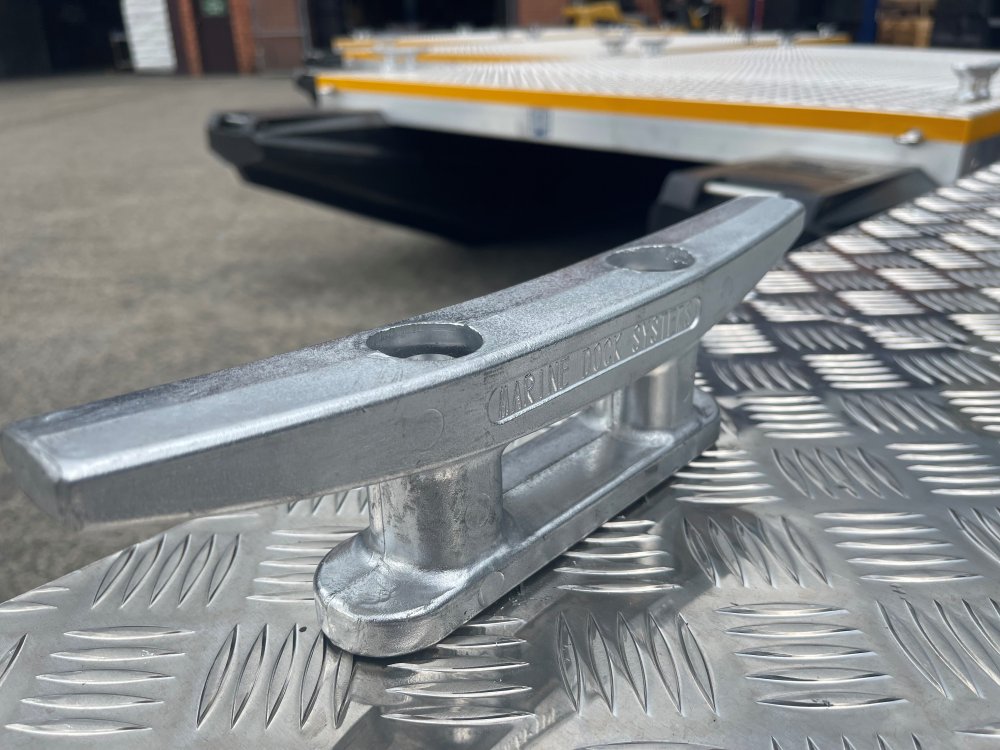

Mooring cleats 300mm
cast aluminium
with stainless steel fastners
1/2 inch stainless steel bolts
More info...
Mooring Cleat

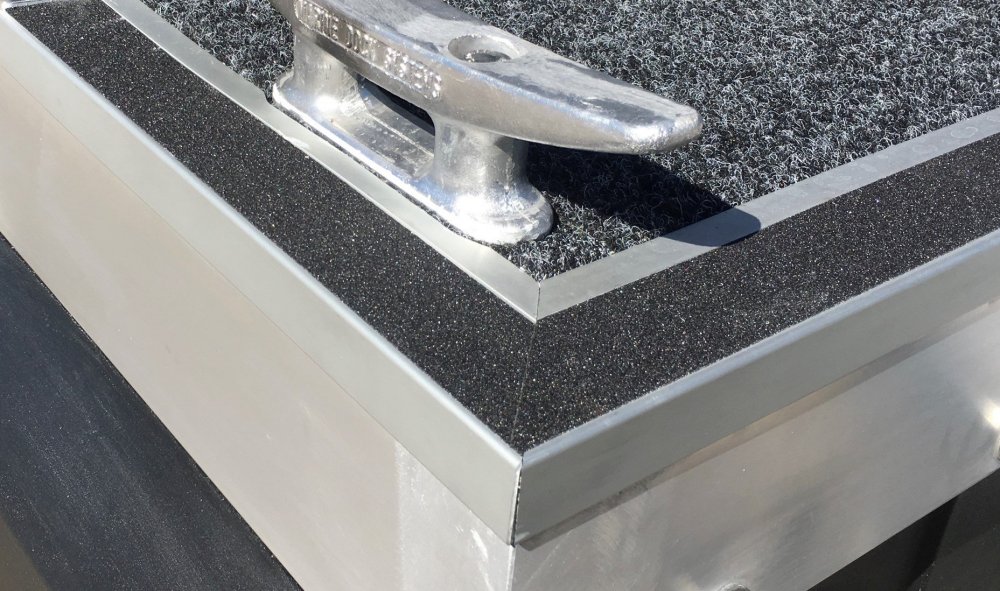

Aluminium edging with grip tape
Countersunk alloy rivets
Mooring Cleat

Fishing rod holders stainless steel
with stainless steel fastners

Folding stainless steel ladder
with stainless steel fastners

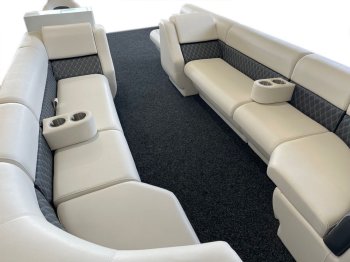

Pontoon Boat Furniture
Upholstered pontoon boat lounges. Our extra comfortable range includes Large straight lounge, meduim and small. Our pontoon seating is manufactured using polyethylene roto moulded bases which can handle extreme outdoor conditions, upholstered in heavy duty vynil. Lounges have lift up seats for storage, great for stowing away life jackets and more.
Click Here for details

Superseded / custom drawings
Drawings

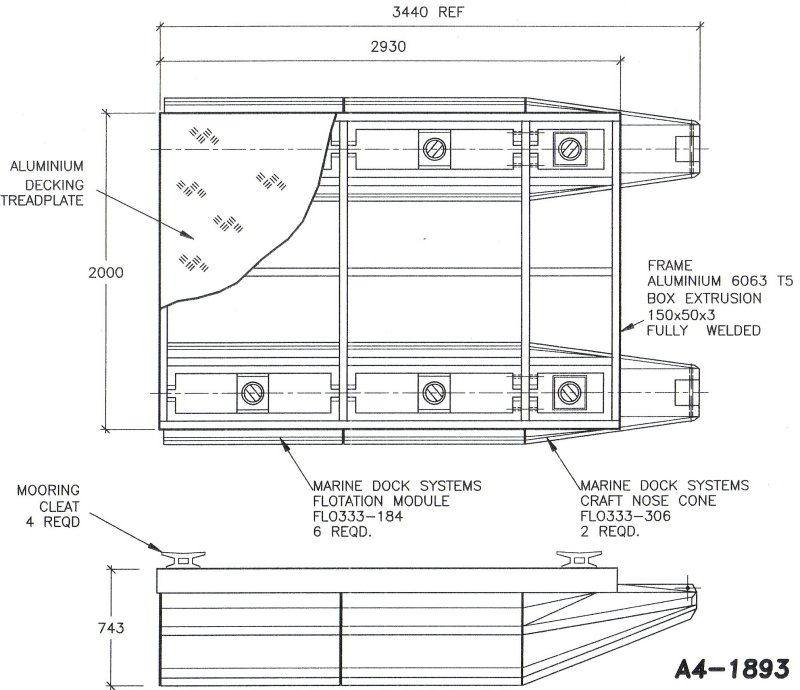

A4-1893 3.6 x 2.2 mtrs wide
