4.6 Metre Pontoon Boat (15 foot)
This pontoon boat is good for 1-4 people and is able to take upto 6 if a centre row of pontoons is added. Marine Dock Systems has manufactured quite a few of these, good towing size!. This model uses our 333 Litre floats and nose cones. The 333 Litre floats will support 150kgs each. Pontoon modules are moulded in one piece from tough, high stress crack-resistant, thermoplastic polyethylene resin. In built mounting lugs allow direct connection of the modules to the frame work system. Floats are food grade and can be used for drinking water or waste storage. Extra available include motor bracket, carpet, mooring cleats, handrails with gates, hardtop roof, steering wheel console. individual floats are also available and can be purchased separately

Float PDF Price List

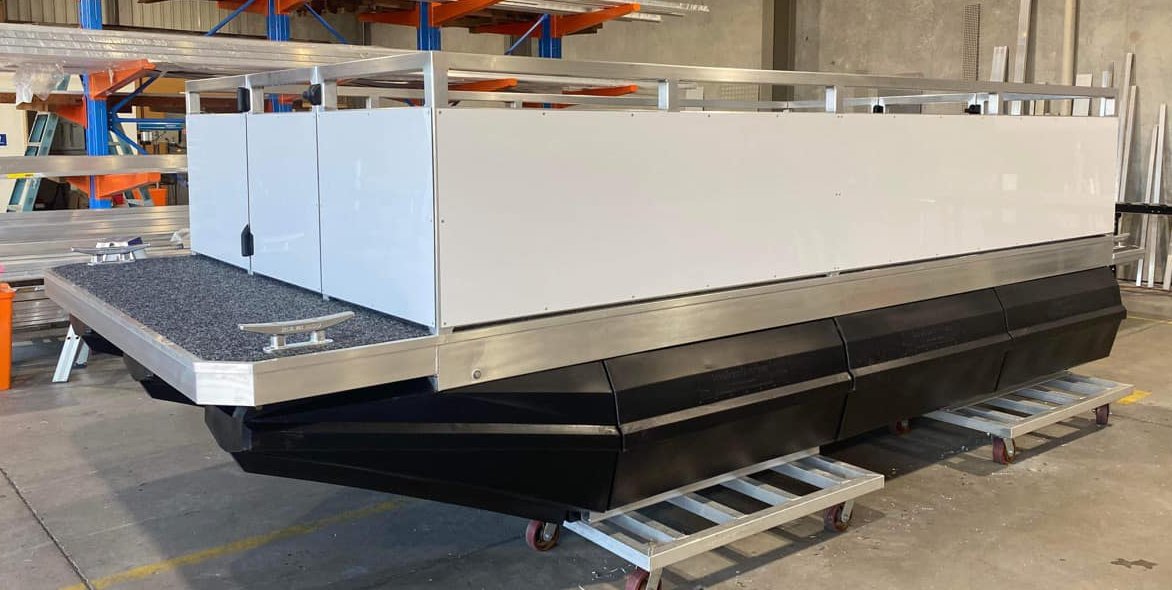

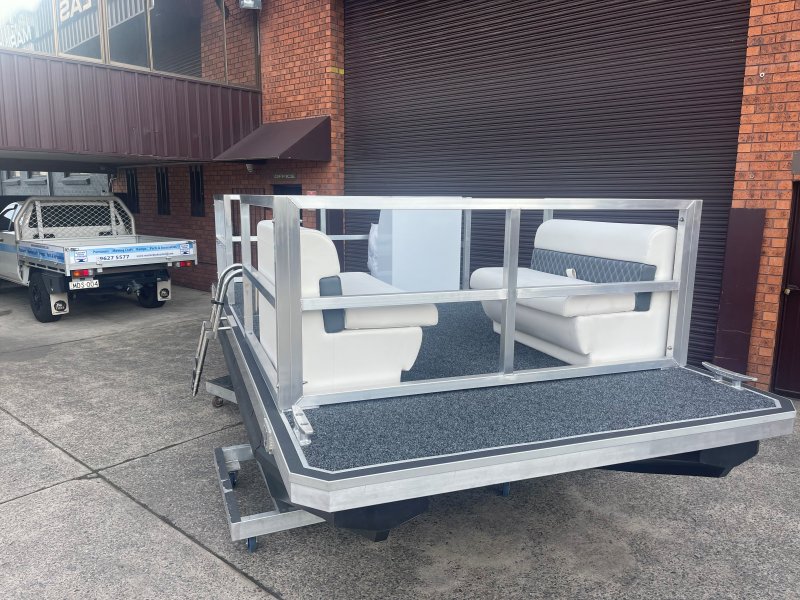

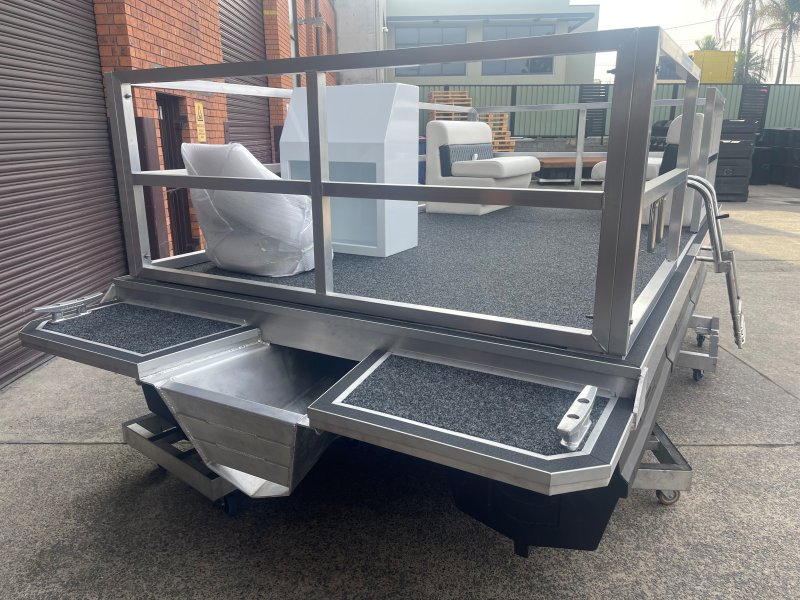

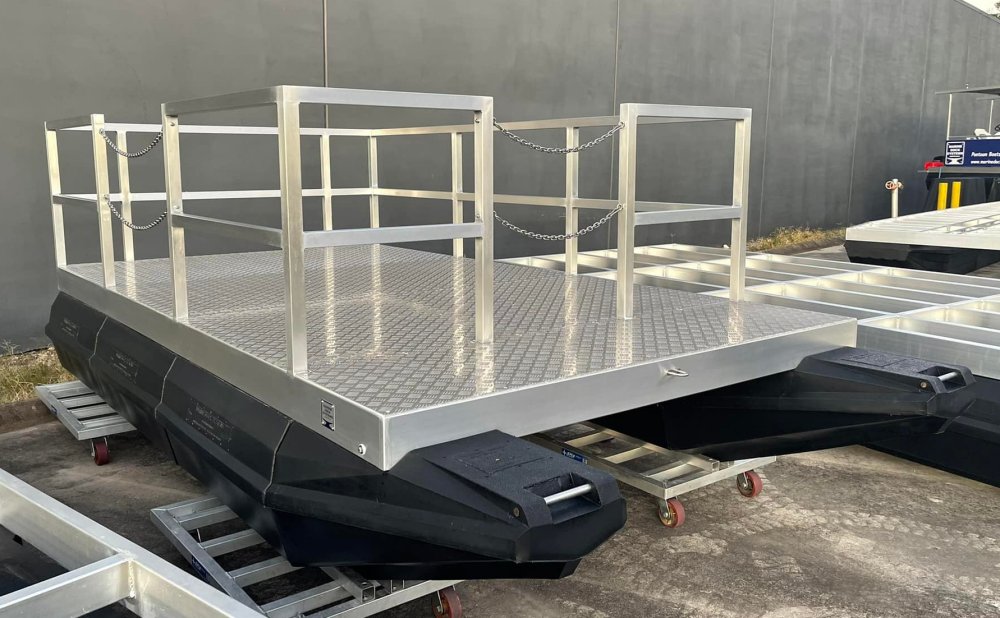

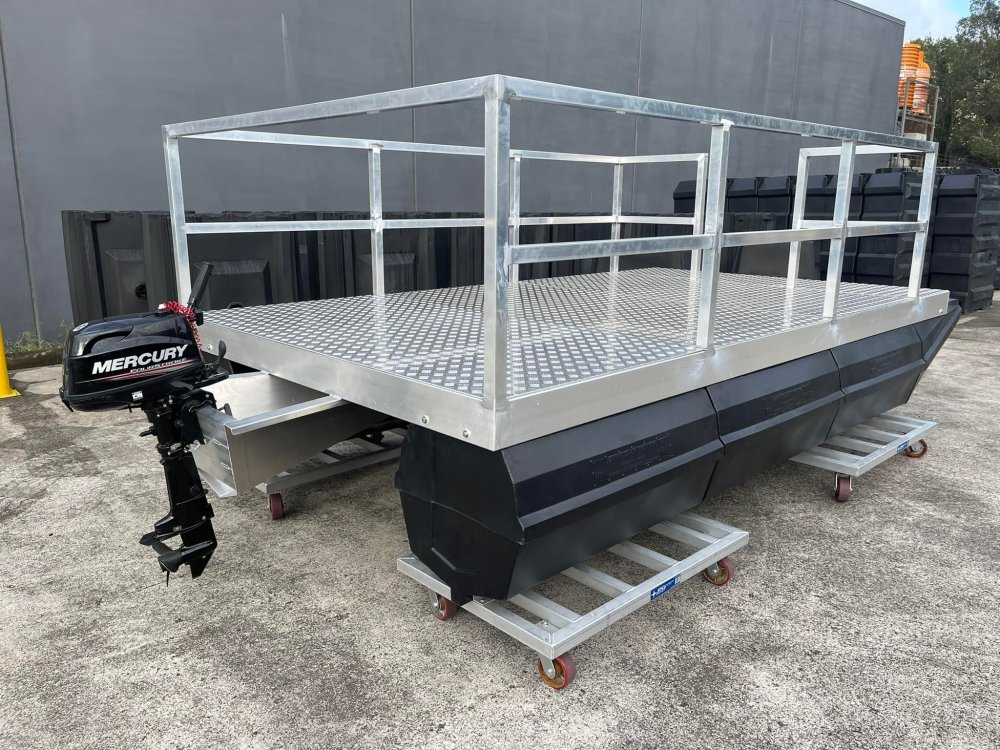

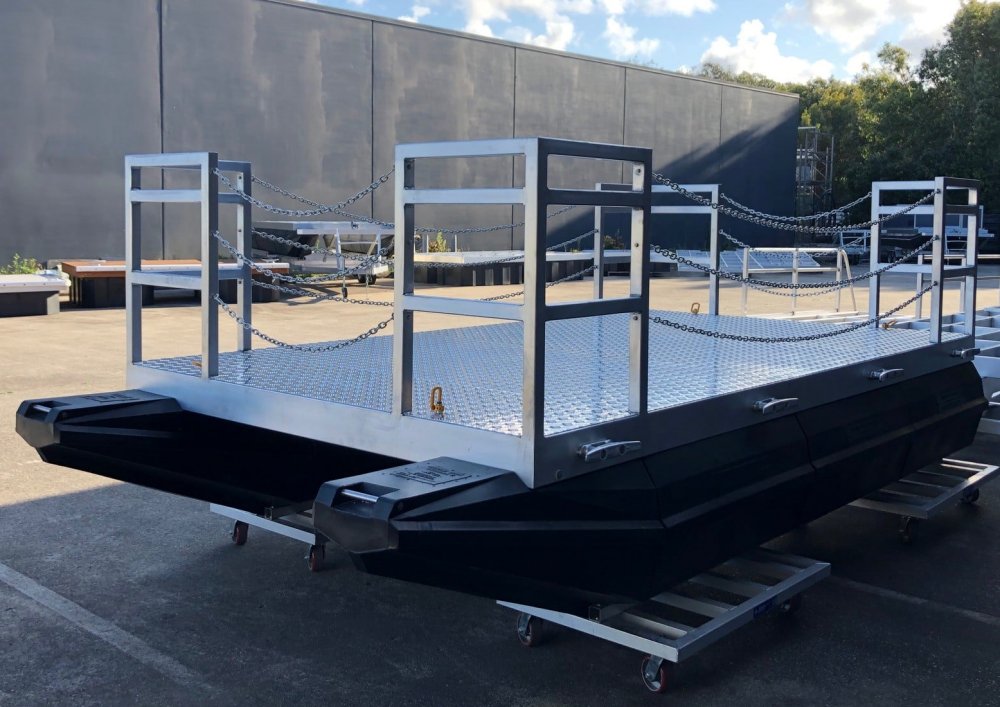

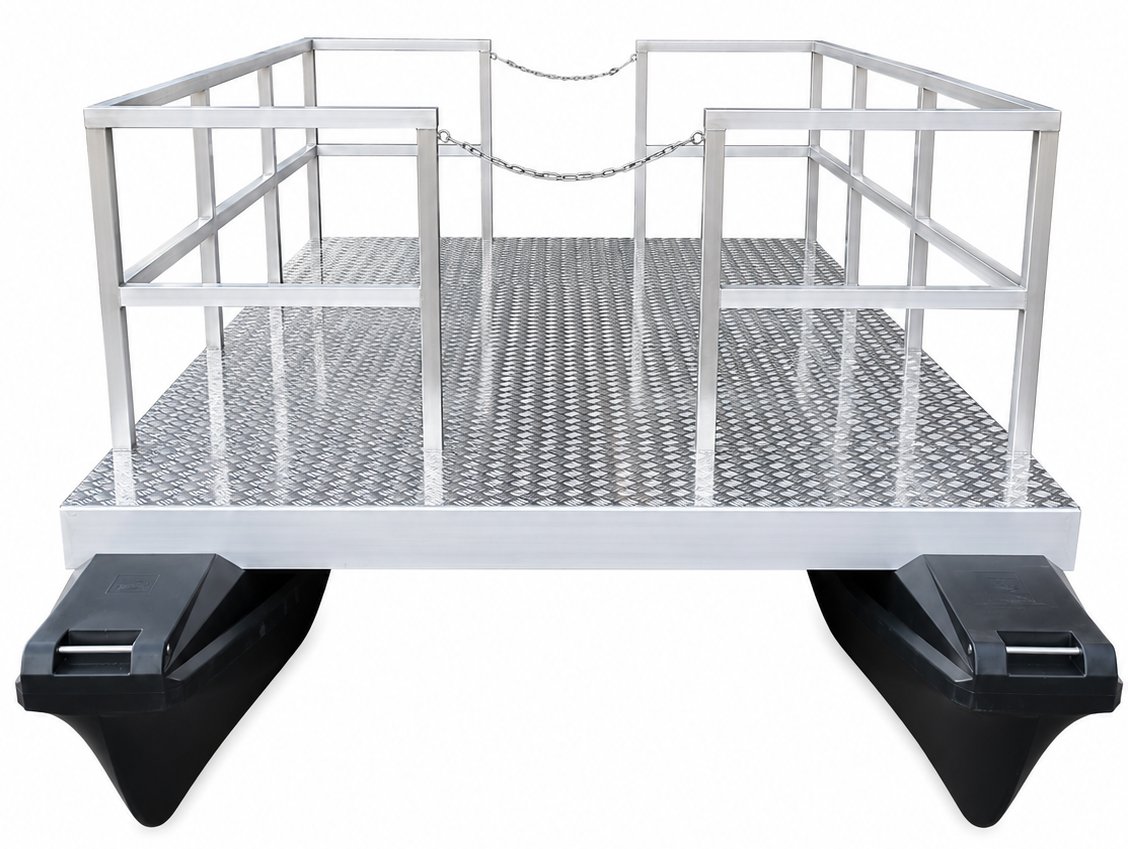

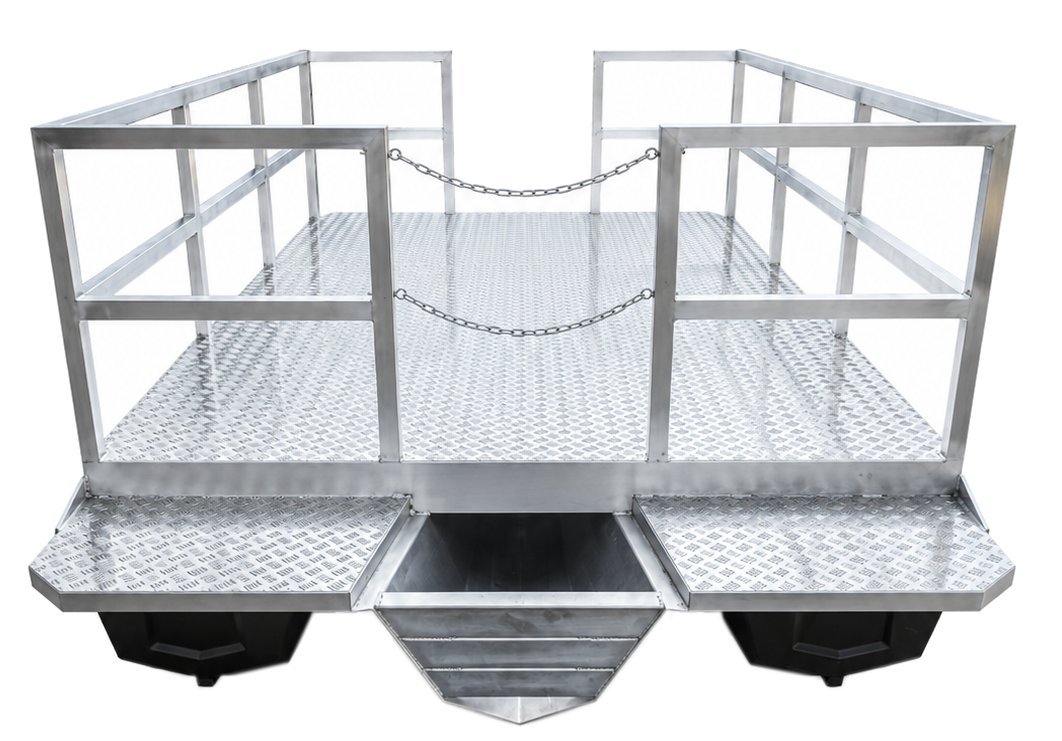

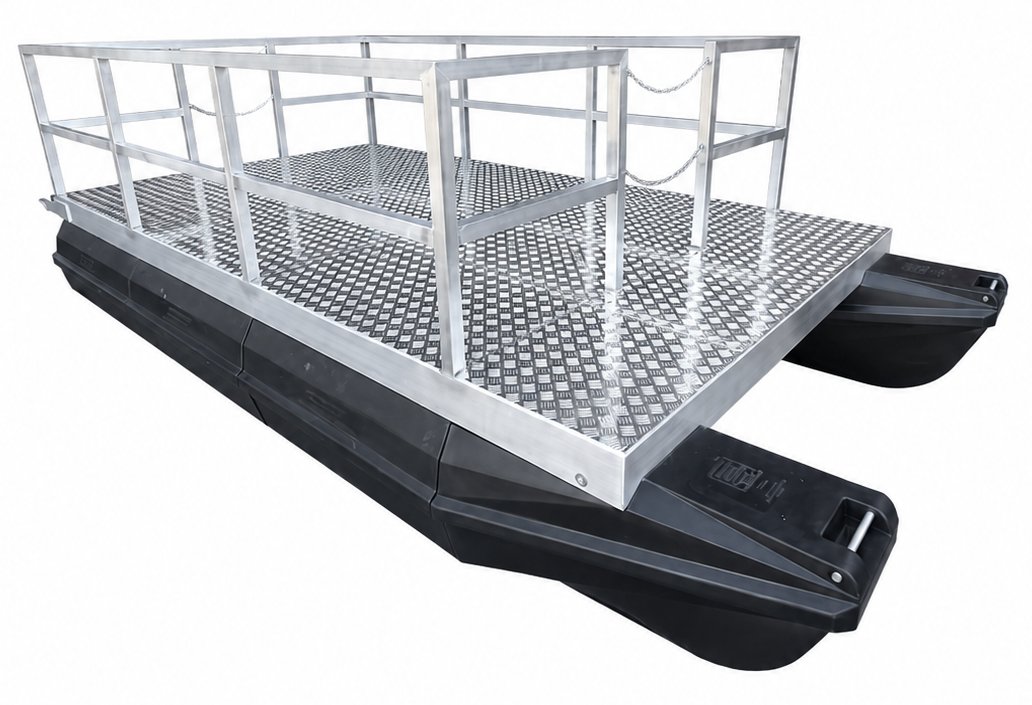

4.6 Pontoon Boat - Custom Picture
4.6 Pontoon Boat - Custom Picture
4.6 Pontoon Boat - Custom Picture

YouTube Channel

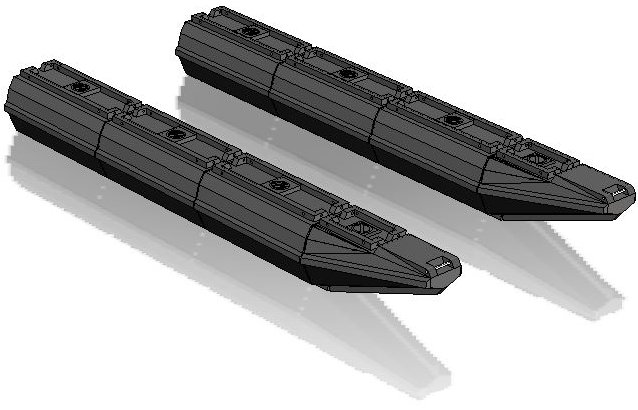

Option 1

Pontoon hulls
Floats and fasteners

4.6 Mrs Long (15 feet)
Includes
6 x 333 Litre floats
2 x Nose cones.
4 x M10 x 120mm 304 SS bolts
12 x M10 x 170mm 304 SS bolts
20 x M10 304 SS nyloc nut
40 x 3/8" X 1-1/2" 304 SS washer
Twin Hull
Approximate
Total weight 184kg
Max Load 900kg

Tri Hull
Approximate
Total weight 276kg
Max Load 1350kg

Float PDF Price List
Drawings
333 Litre Float
Nose Cone

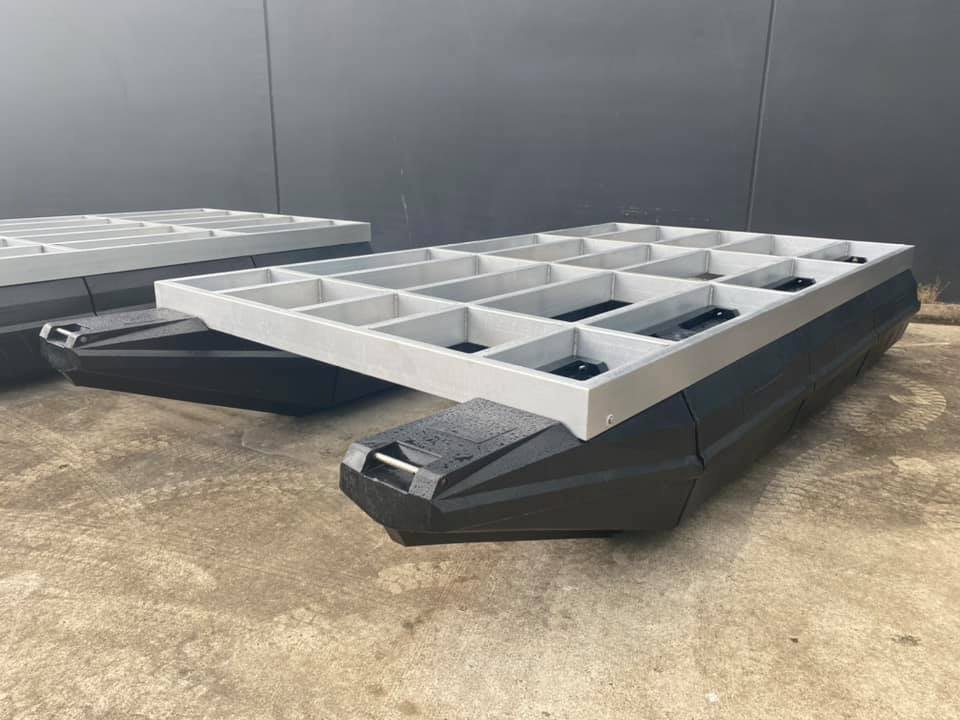

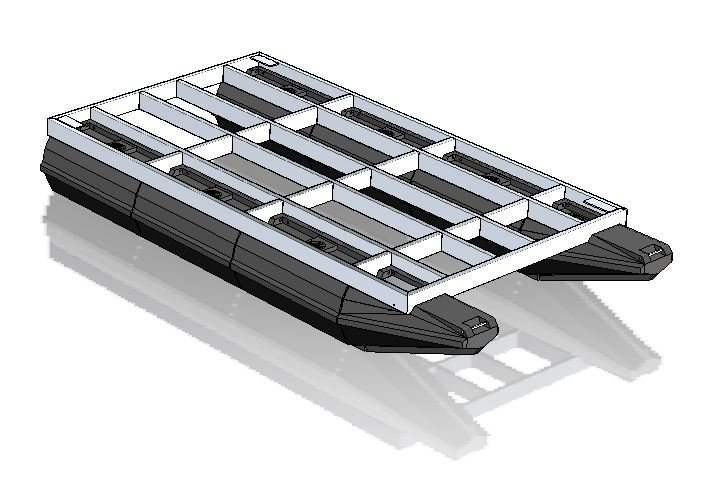

Option 2

Pontoon Boat
Frame and floats

4.6 Mrs Long (15 feet)
2.5mtr wide (8 Feet)
Includes
6 x 333 Litre floats
2 x Nose cones.
Fully welded aluminium frame
Stainless steel fastners
Twin Hull
Approximate
Total weight 290kg
Max Load 794kg

Tri Hull
Approximate
Total weight 382kg
Max Load 1244kg

Float PDF Price List
Drawings
3D Drawing #7101
333 Litre Float #A4-184
Nose Cone #A4-306

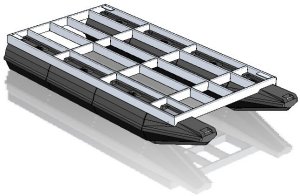

3D Frame #7100
Aluminium frame #7112

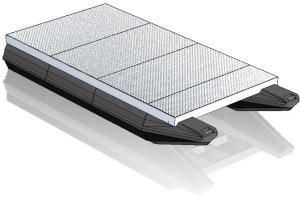

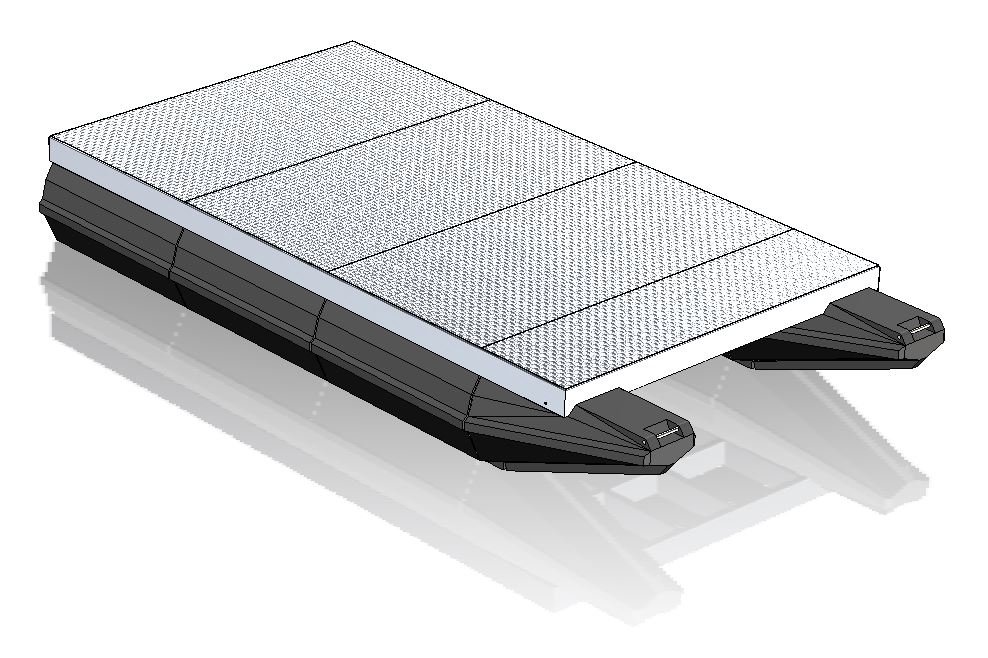

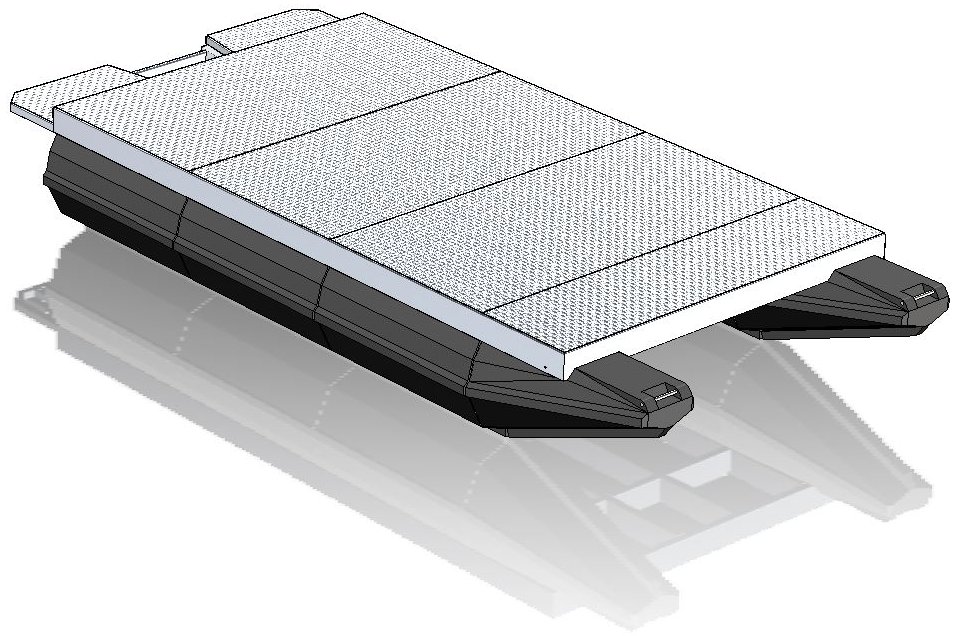

Option 3

Pontoon Boat
Frame, floats and decking

4.6 Mrs Long (15 feet)
2.5mtr wide (8 Feet)
Includes
6 x 333 Litre floats
2 x Nose cones.
Fully welded aluminium frame
Stainless steel fastners
3mm thick checker plate decking
Twin Hull
Approximate
Total weight 365kg
Max Load 719kg

Tri Hull
Approximate
Total weight 457kg
Max Load 1169kg

Float PDF Price List
Drawings
3D Drawing #7102
333 Litre Float #A4-184
Nose Cone #A4-306
3D Frame #7100
Aluminium frame #7112

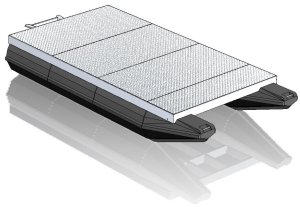

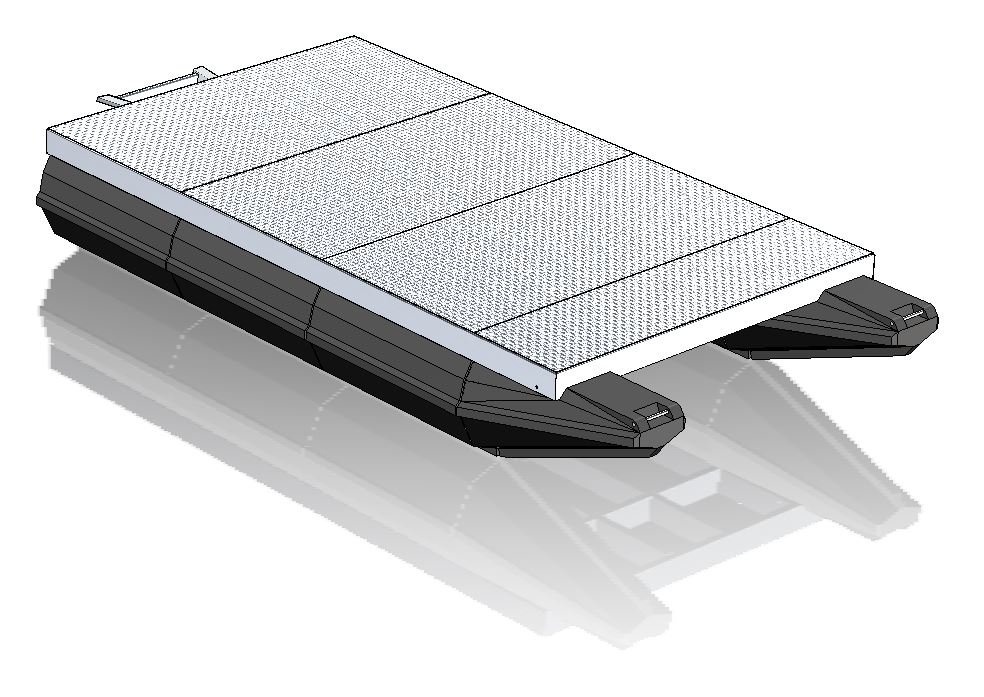

Option 4

Pontoon Boat
Frame, floats, decking
and motor bracket

4.6 Mrs Long (15 feet)
2.5mtr wide (8 Feet)
Includes
6 x 333 Litre floats
2 x Nose cones.
Fully welded aluminium frame
Stainless steel fastners
3mm thick checker plate decking
Motor bracket
Twin Hull
Approximate
Total weight 380kg
Max Load 704kg

Tri Hull
Approximate
Total weight 472kg
Max Load 1154kg

Float PDF Price List
Drawings
3D Drawing #7103
333 Litre Float #A4-184
Nose Cone #A4-306
3D Frame #7100
Aluminium frame #7112
Motor bracket #7084
M/bracket fitting #7097

Option 5

Pontoon Boat
Frame, floats, decking,
motor bracket
and rear steps

4.6 Mrs Long (15 feet)
2.5mtr wide (8 Feet)
Includes
6 x 333 Litre floats
2 x Nose cones.
Fully welded aluminium frame
Stainless steel fastners
3mm thick checker plate decking
Motor bracket
Rear steps
Twin Hull
Approximate
Total weight 395kg
Max Load 689kg

Tri Hull
Approximate
Total weight 487kg
Max Load 1139kg

Float PDF Price List
Drawings
3D Drawing #7104
333 Litre Float #A4-184
Nose Cone #A4-306
3D Frame #7100
Aluminium frame #7112
Motor bracket #7084
M/bracket fitting #7097
Rear steps #7083

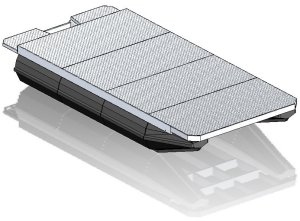

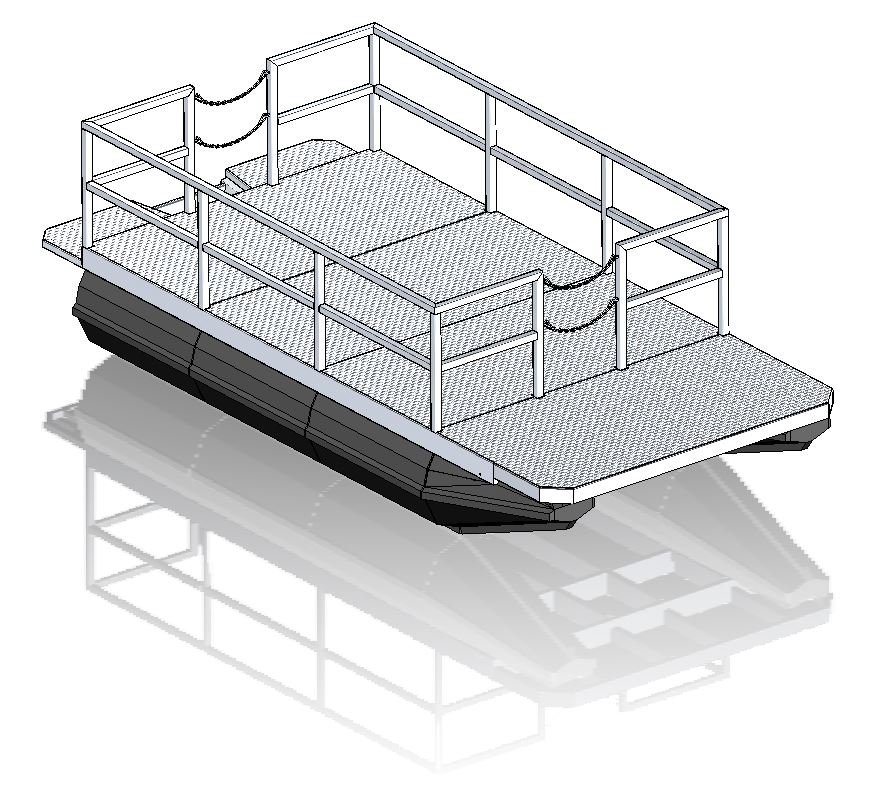

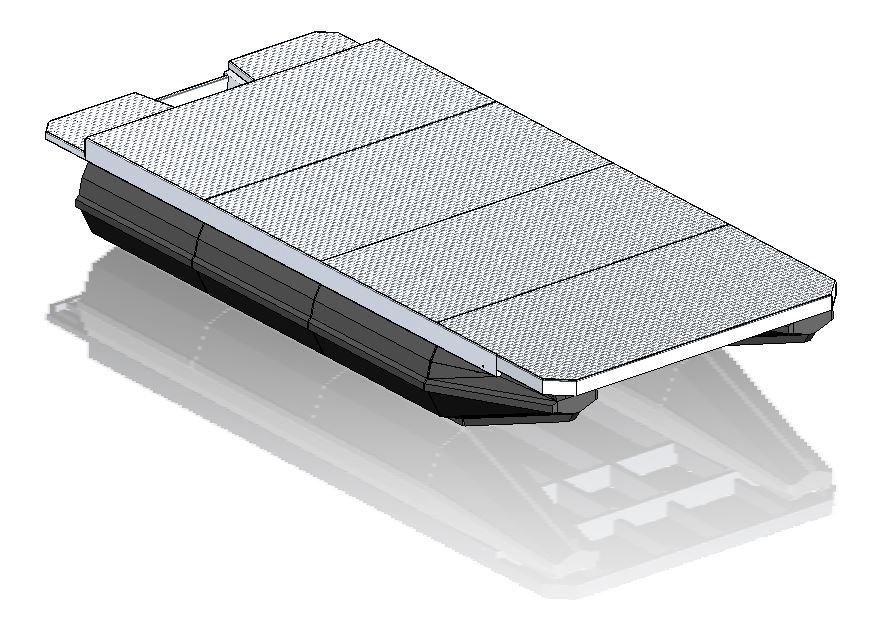

Option 6

Pontoon Boat
Frame, floats, decking,
motor bracket,
rear steps,
and nose extension

4.6 Mrs Long (15 feet)
2.5mtr wide (8 Feet)
Includes
6 x 333 Litre floats
2 x Nose cones.
Fully welded aluminium frame
Stainless steel fastners
3mm thick checker plate decking
Motor bracket
Rear steps
Nose extension
Twin Hull
Approximate
Total weight 418kg
Max Load 666kg

Tri Hull
Approximate
Total weight 510kg
Max Load 1116kg

Float PDF Price List
Drawings
3D Drawing #7107
333 Litre Float #A4-184
Nose Cone #A4-306
3D Frame #7100
Aluminium frame #7112
Motor bracket #7084
M/bracket fitting #7097
Rear steps #7083
Rear Gusset #7088
Nose extension #7111
Nose Gusset #7087
Cleat Bracket #7090
Front deck #7113

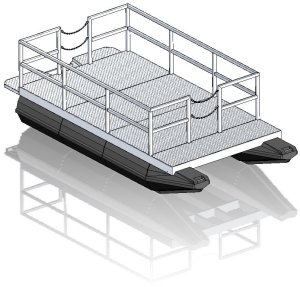

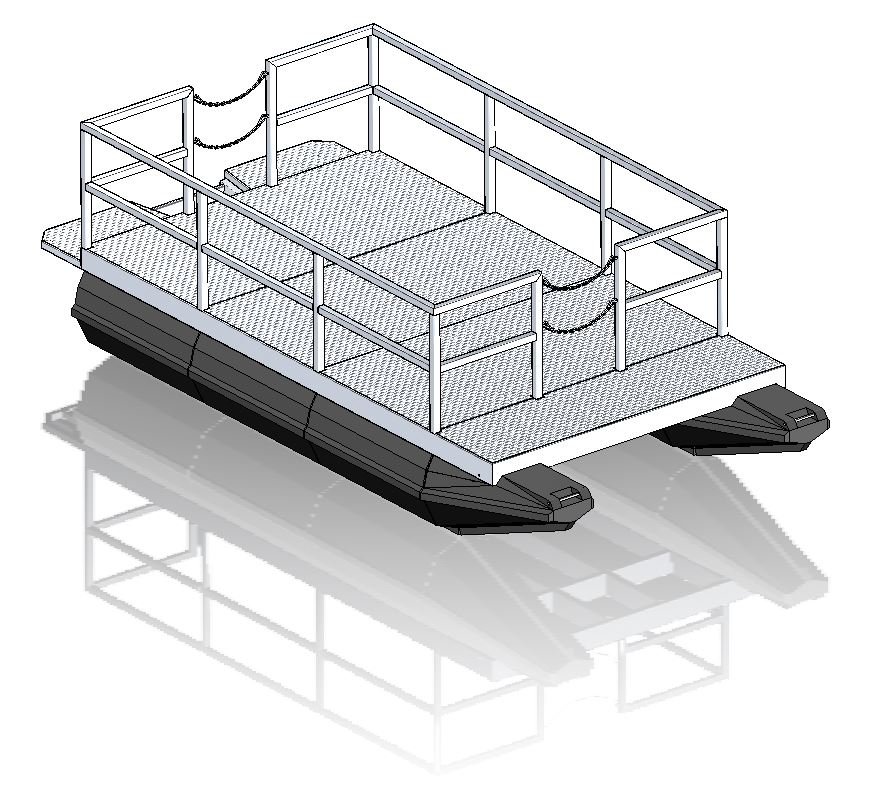

Option 7

Pontoon Boat
Frame, floats, decking,
motor bracket
and rear steps

4.6 Mrs Long (15 feet)
2.5mtr wide (8 Feet)
Includes
6 x 333 Litre floats
2 x Nose cones.
Fully welded aluminium frame
Stainless steel fastners
3mm thick checker plate decking
Motor bracket
Rear steps
Aluminium Handrails
Stainless chaingates
Twin Hull
Approximate
Total weight 443kg
Max Load 641kg

Tri Hull
Approximate
Total weight 535kg
Max Load 1091kg

Float PDF Price List
Drawings
3D Drawing #7106
333 Litre Float #A4-184
Nose Cone #A4-306
3D Frame #7100
Aluminium frame #7112
Motor bracket #7084
M/bracket fitting #7097
Rear steps #7083
Rear Gusset #7088
Cleat Bracket #7090
Handrails #7114

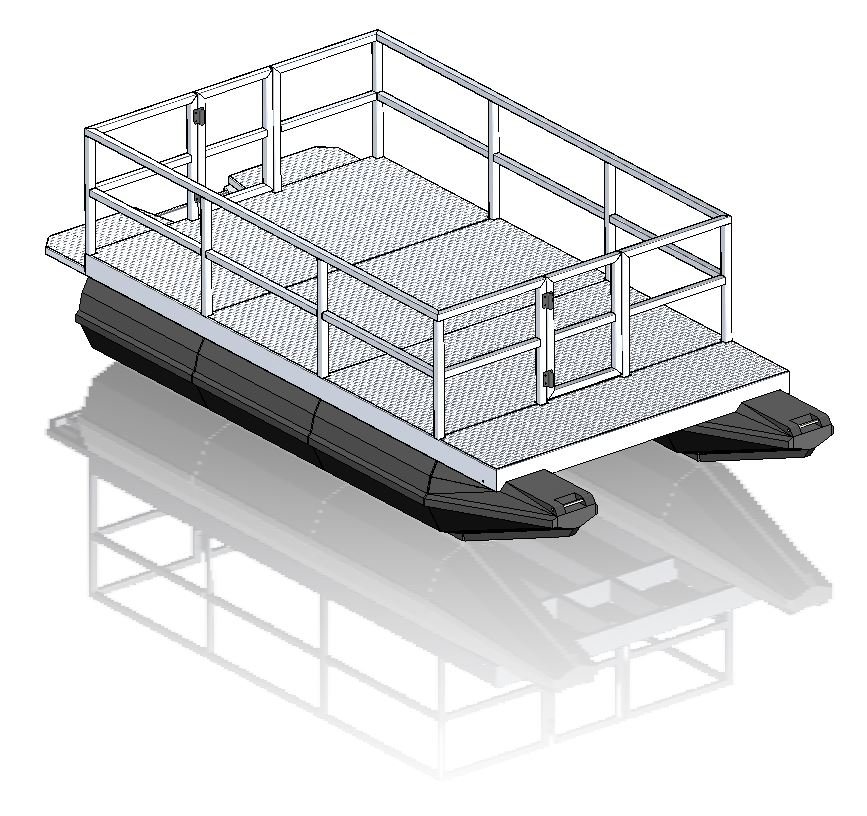

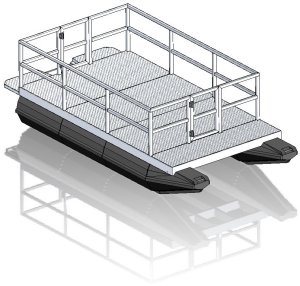

Option 8

Pontoon Boat
Frame, floats, decking,
motor bracket
and rear steps

4.6 Mrs Long (15 feet)
2.5mtr wide (8 Feet)
Includes
6 x 333 Litre floats
2 x Nose cones.
Fully welded aluminium frame
Stainless steel fastners
3mm thick checker plate decking
Motor bracket
Rear steps
Aluminium Handrails
Aluminium welded gates
Twin Hull
Approximate
Total weight 448kg
Max Load 636kg

Tri Hull
Approximate
Total weight 540kg
Max Load 1086kg

Float PDF Price List
Drawings
3D Drawing #7105
333 Litre Float #A4-184
Nose Cone #A4-306
3D Frame #7100
Aluminium frame #7112
Motor bracket #7084
M/bracket fitting #7097
Rear steps #7083
Rear Gusset #7088
Cleat Bracket #7090
Handrails #7114
Welded Gates #7115

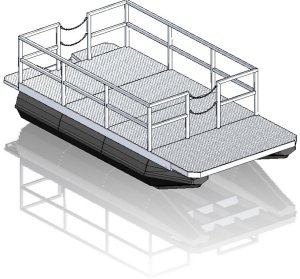

Option 9

Pontoon Boat
Frame, floats, decking,
motor bracket
and rear steps

4.6 Mrs Long (15 feet)
2.5mtr wide (8 Feet)
Includes
6 x 333 Litre floats
2 x Nose cones.
Fully welded aluminium frame
Stainless steel fastners
3mm thick checker plate decking
Motor bracket
Rear steps
Stainless chaingates
Nose extension
Twin Hull
Approximate
Total weight 556kg
Max Load 528kg

Tri Hull
Approximate
Total weight 648kg
Max Load 978kg

Float PDF Price List
Drawings
3D Drawing #7109
333 Litre Float #A4-184
Nose Cone #A4-306
3D Frame #7100
Aluminium frame #7112
Motor bracket #7084
M/bracket fitting #7097
Rear steps #7083
Rear Gusset #7088
Cleat Bracket #7090
Handrails #7114
Nose extension #7111
Nose Gusset #7087

Option 10

Pontoon Boat
Frame, floats, decking,
motor bracket
and rear steps

4.6 Mrs Long (15 feet)
2.5mtr wide (8 Feet)
Includes
6 x 333 Litre floats
2 x Nose cones.
Fully welded aluminium frame
Stainless steel fastners
3mm thick checker plate decking
Motor bracket
Rear steps
Aluminium Handrails
Aluminium welded gates
Nose extension
Twin Hull
Approximate
Total weight 564kg
Max Load 520kg

Tri Hull
Approximate
Total weight 656kg
Max Load 970kg

Float PDF Price List
Drawings
3D Drawing #7108
333 Litre Float #A4-184
Nose Cone #A4-306
3D Frame #7100
Aluminium frame #7112
Motor bracket #7084
M/bracket fitting #7097
Rear steps #7083
Rear Gusset #7088
Cleat Bracket #7090
Handrails #7114
Welded Gates #7115
Nose extension #7111
Nose Gusset #7087
Front deck #7113

Optional extra's

Centre row of floats (adds 450kg payload)
3 x 333 Litre Floats
1 x Nose Cone
4 x M10 x 120mm Stainless Steel Bolts
6 x M10 x 170mm Stainless Steel Bolts
10 x M10 Nyloc nuts stainless steel
20 x 3/8 x 1"1/2 304 stainless steel washers
Marine Carpet

Grey Marine carpet
UV Stabilsed polypropylene
32 x 32mm alloy angle
Countersunk alloy rivets
Marine Carpet

Mooring cleats 300mm
cast aluminium
with stainless steel fastners
1/2 inch stainless steel bolts
More info...
Mooring Cleat

Aluminium edging with grip tape
Countersunk alloy rivets
Mooring Cleat

Fishing rod holders stainless steel
with stainless steel fastners

Folding stainless steel ladder
Fold down with telescopic treads
with stainless steel fastners

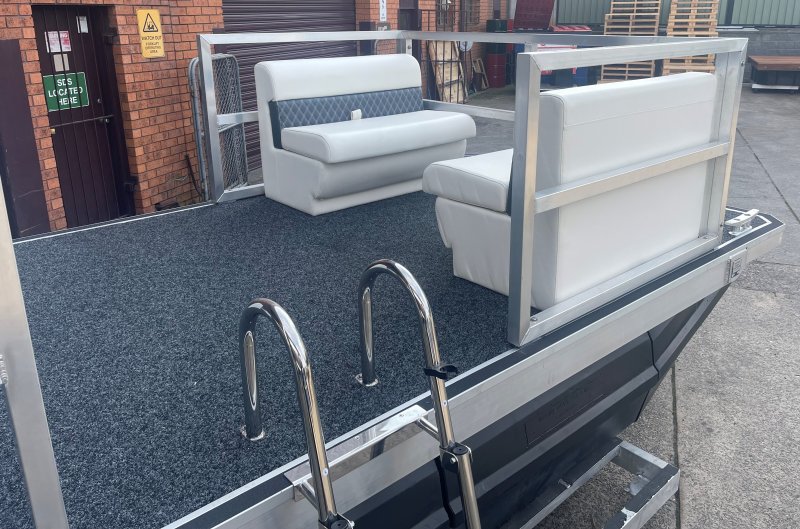

Pontoon Boat Furniture
Upholstered pontoon boat lounges. Our extra comfortable range includes Large straight lounge, meduim and small. Our pontoon seating is manufactured using polyethylene roto moulded bases which can handle extreme outdoor conditions, upholstered in heavy duty vynil. Lounges have lift up seats for storage, great for stowing away life jackets and more.
Click Here for details

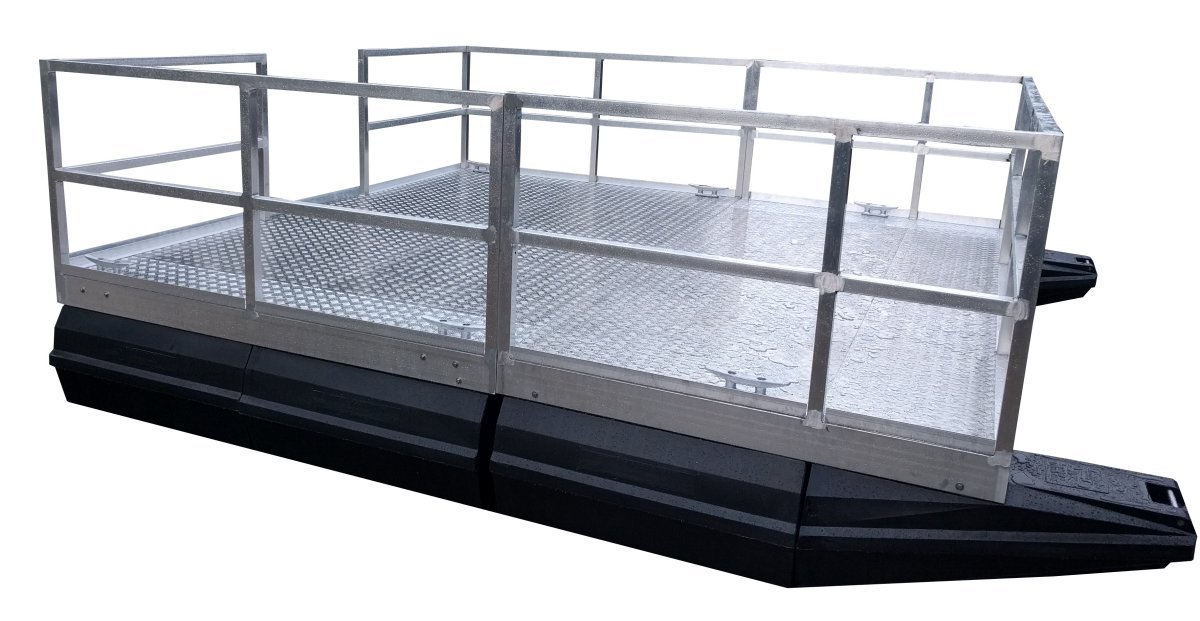

Custom extra wide work platform, full alloy decking and handrails. Made in two section for ease of transport.

Industrial Boats
This pontoon boat was manufactured to service a fresh water dam. It is used to gain access to overflow screens for cleaning. With customers such as Sydney Water, SA Water, The Australian Submarine corporation, Australian Defense Force and many local Australian councils. These pontoons are made to last, we have been manufacturing these since the early 1980's and have already proved themselves time and time again.

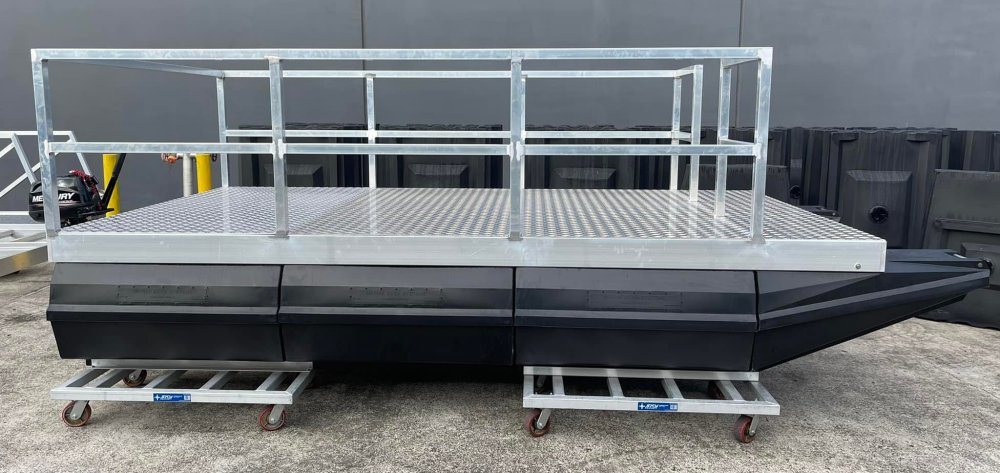

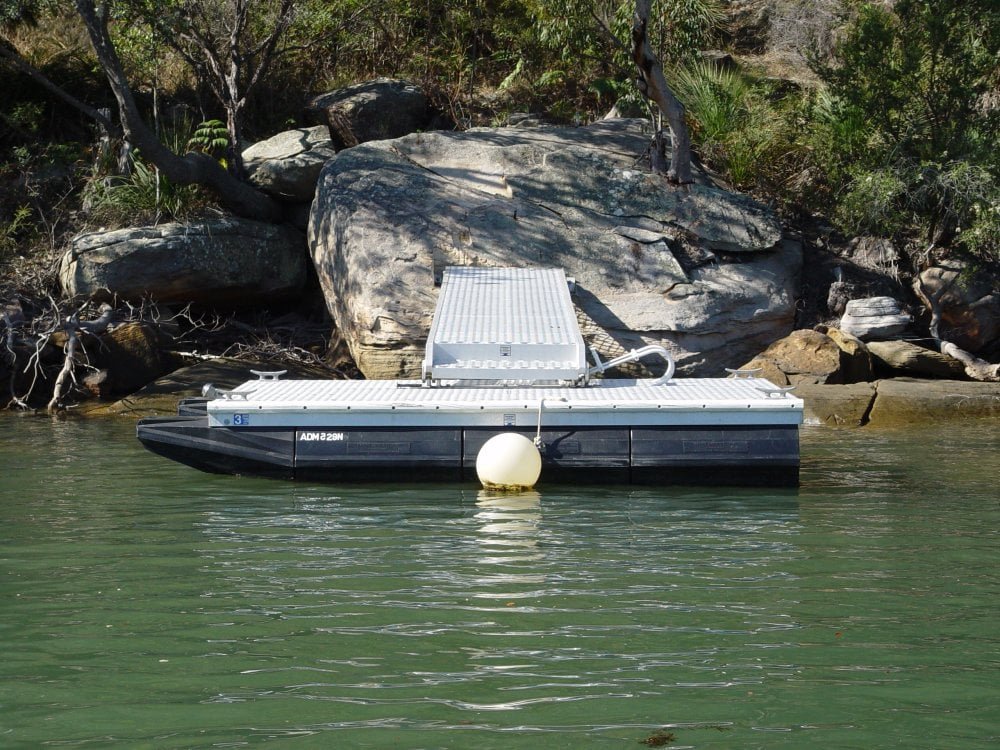

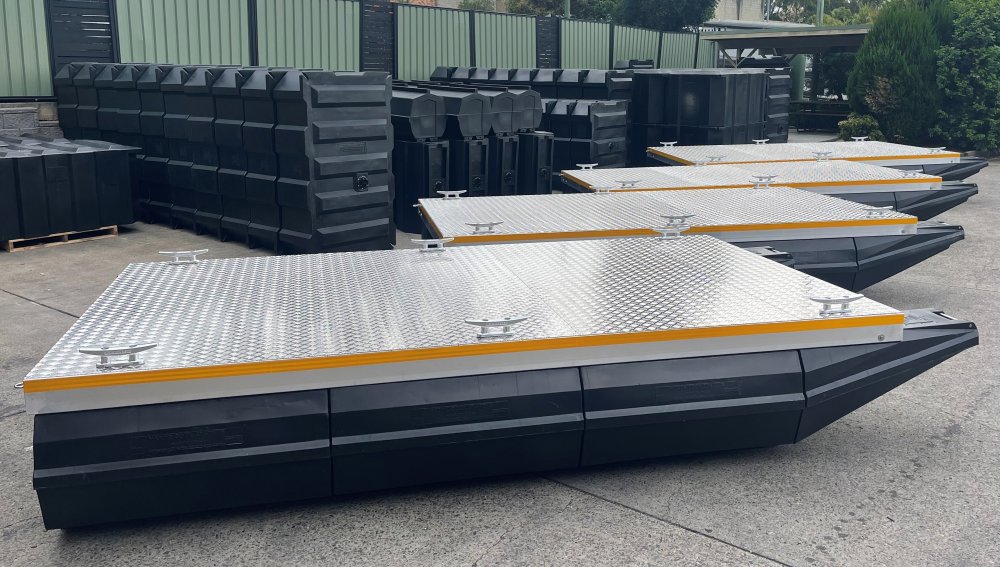

Boat Pontoon
This 4.6 mtr pontoon boat is used as a standard access dock when not in use. Supplied with hinge lugs on the side for a 6 x 1.2 wide meter ramp to be attached.

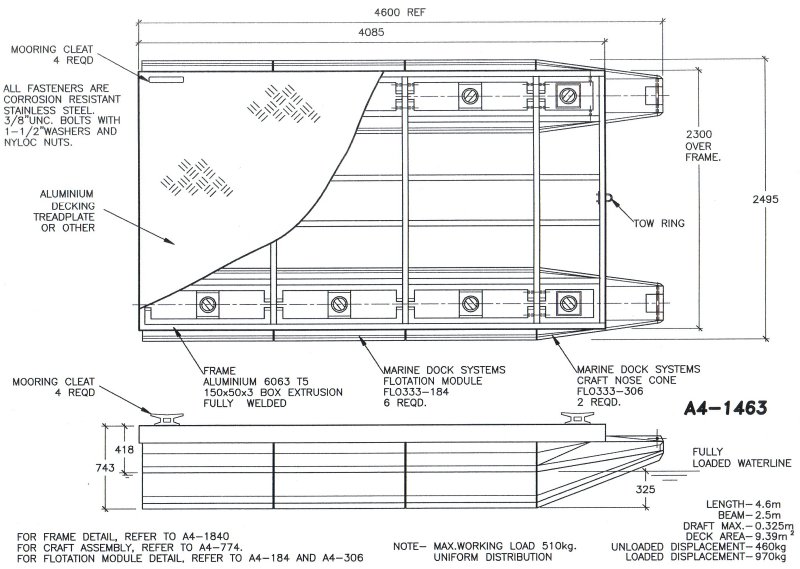

Superseded / custom drawings
Drawings
Drawing - PDF
Drawing - JPG
A4-1840 Pontoon Boat 4.6m x 2.5m frame detail

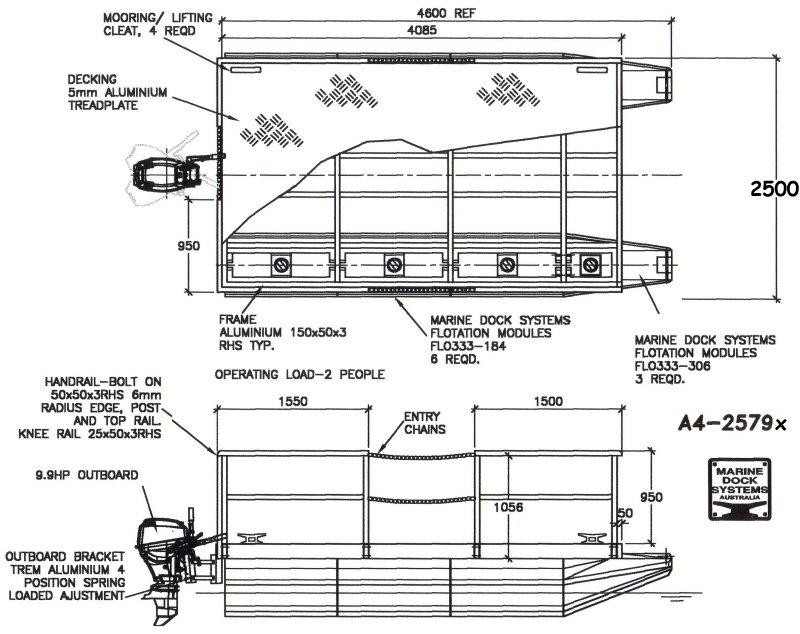

A4-2579x Model with handrail

Pontoon Boat 4.6m x 2.5m floats tucked in rear view #7139
